Turn Signal Lamp: Service and Repair

Removal and Installation of Side Turn Signal Lamp

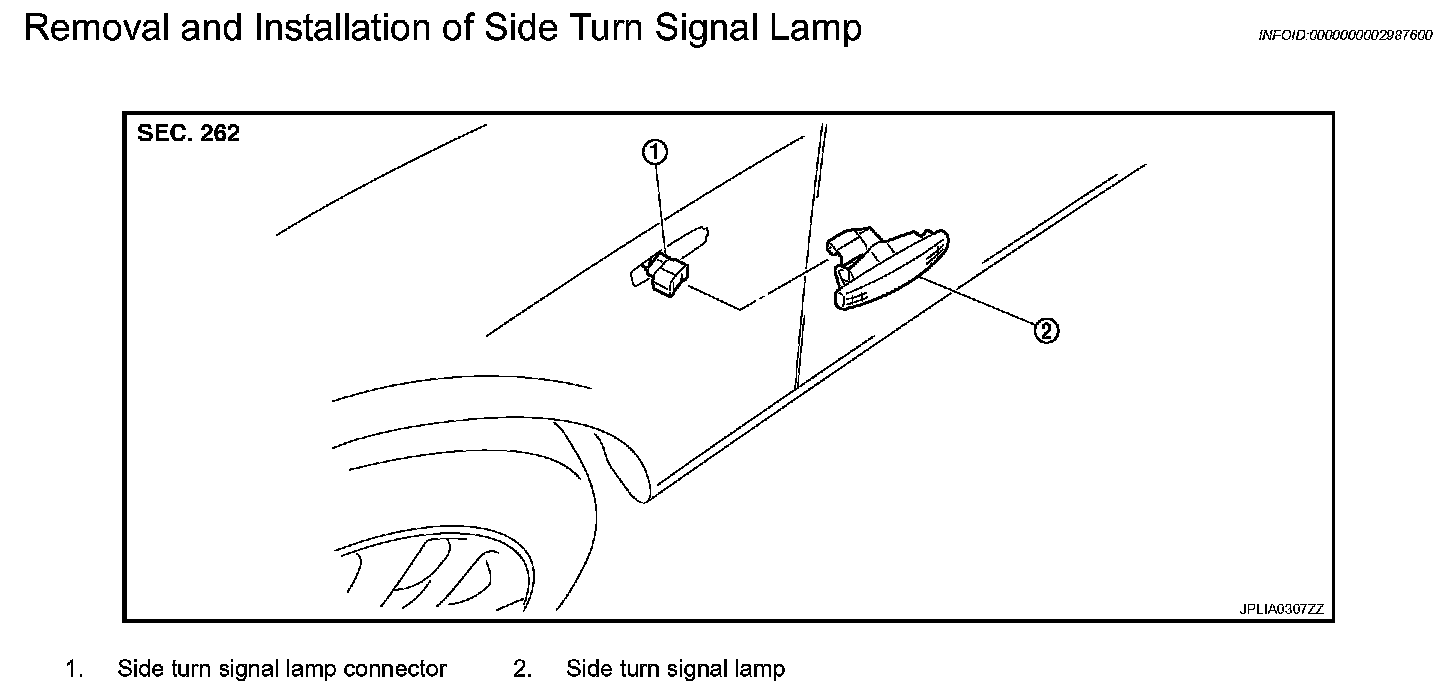

LT-193 Exploded View:

NOTE: Replace as an assembly because it cannot be disassembled.

CAUTION: Disconnect battery negative terminal or remove the fuse.

REMOVAL




1. Remove the side turn signal lamp in numerical order shown in the figure.
2. Disconnect side turn signal lamp connector.

NOTE: Support the vehicle-side harness of the side turn signal lamp with tape so that it does not drop inside the front fender.

INSTALLATION
1. Connect the connector.

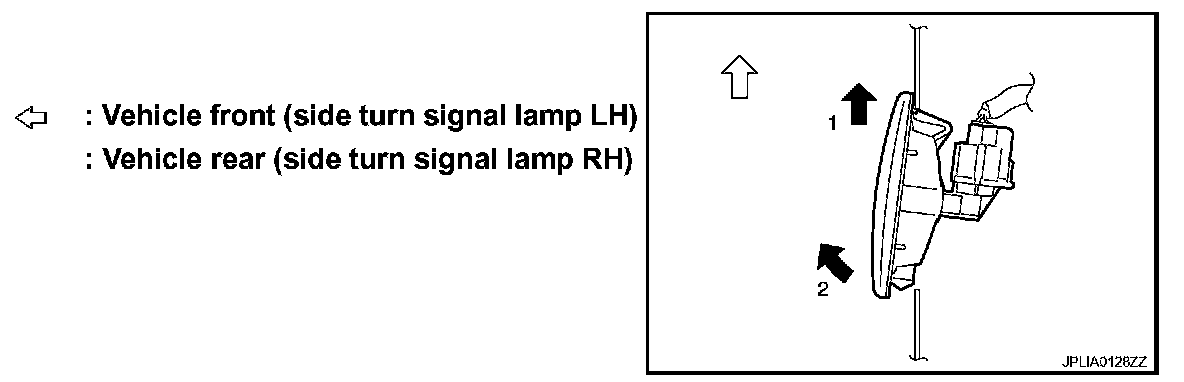

2. Fix the pawl-side behind the side turn signal lamp housing first, then push the resin clip-side.
