Pinout Values and Diagnostic Parameters

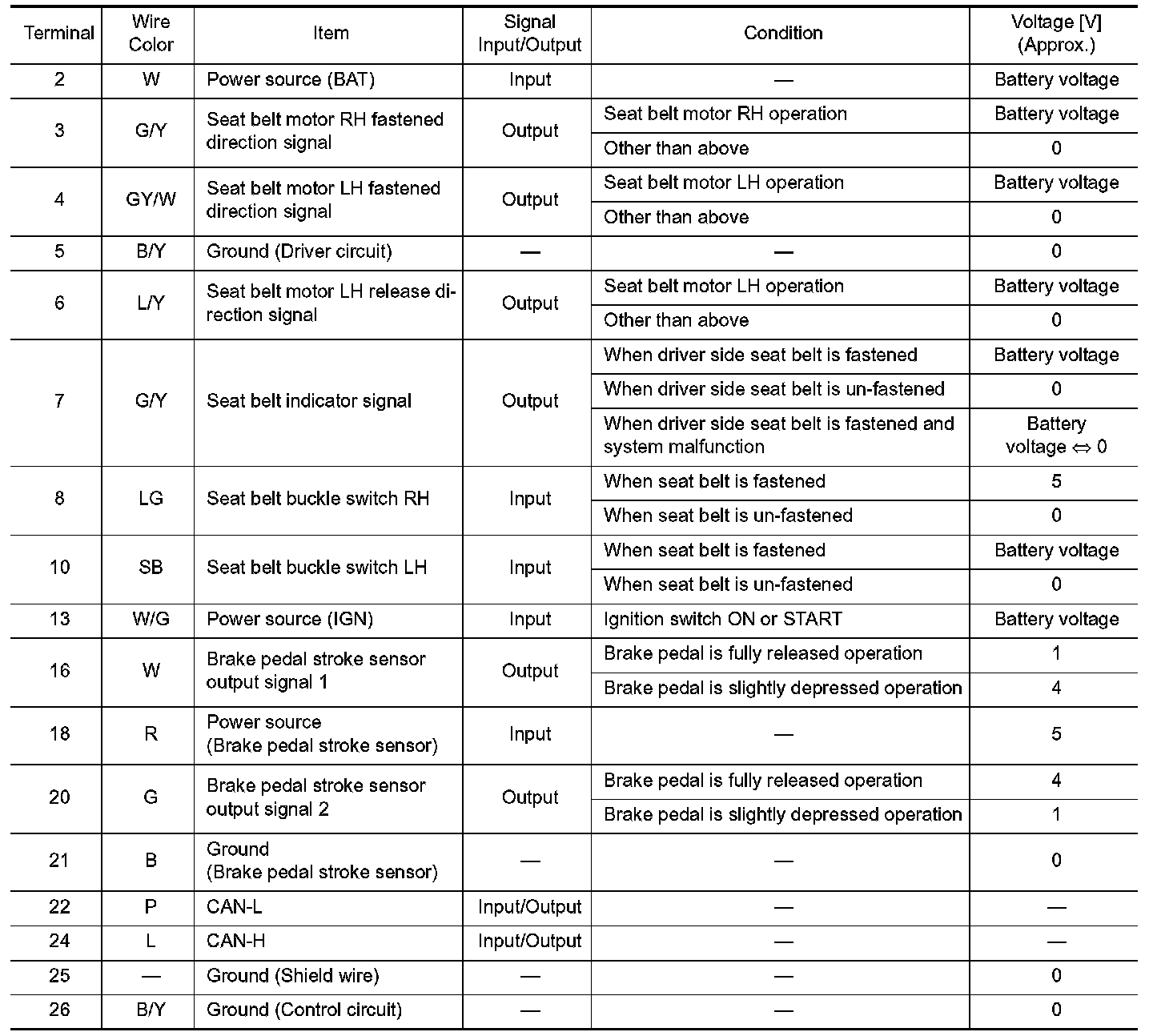

Terminals And Reference Value For Pre-crash Seat Belt Control Unit (Part 1):

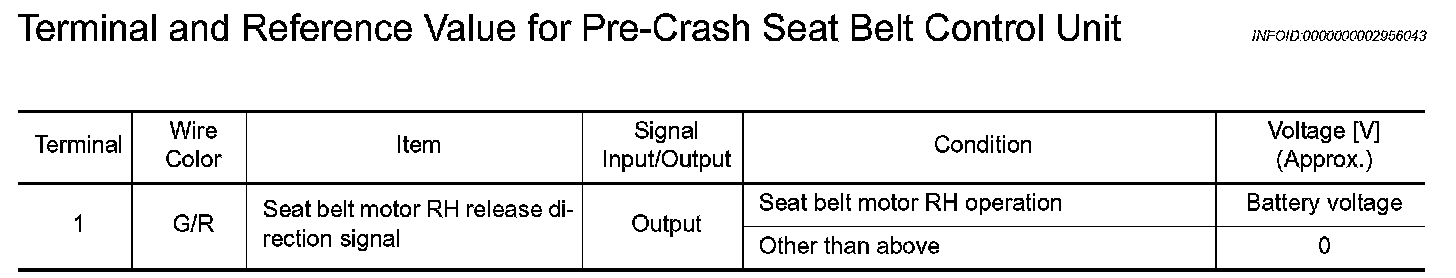

Terminals And Reference Value For Pre-crash Seat Belt Control Unit (Part 2):
