Without Mobile Entertainment System

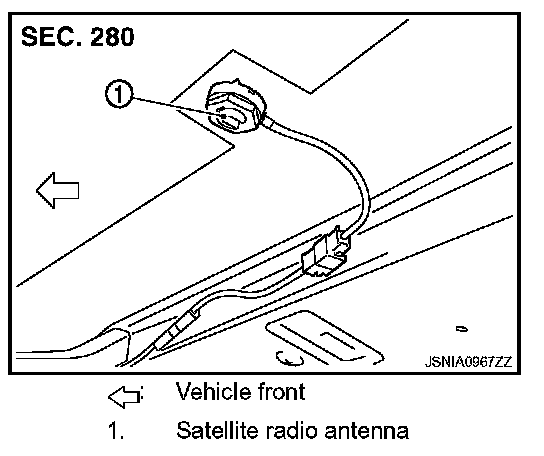

SATELLITE RADIO ANTENNAAV-507 Exploded View:
Exploded View
Removal and Installation
REMOVAL
1. Remove headlining assembly (rear) to secure work space between vehicle and headlining.

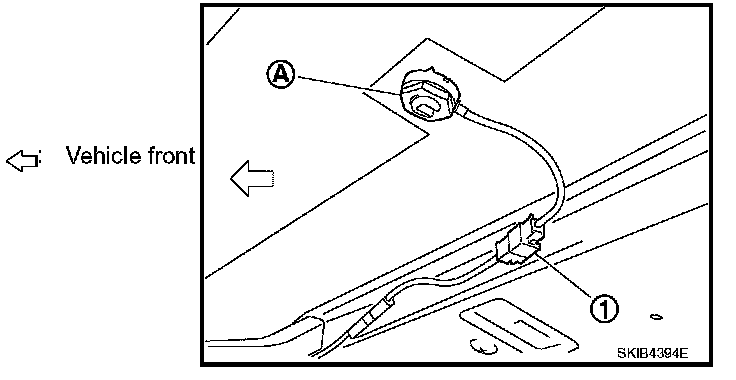

2. Remove nuts (A), and then disconnect connector (1).
3. Remove satellite radio antenna from roof panel.
INSTALLATION
Install in the reverse order of removal.
Satellite radio antenna mounting nut Torque : 6.5 N.m (0.66 kg-m, 58 in-lb)
CAUTION: Be careful about tightening torque. Antenna sensitivity becomes poor, and when it is excessive, roof panel may be deformed, when satellite radio antenna mounting nut tightening torque is loose.
