Operation CHARM: Car repair manuals for everyone.

With Mobile Entertainment System

REAR VIEW MONITOR POSSIBLE ROUTE LINE CENTER POSITION ADJUSTMENT

REAR VIEW MONITOR POSSIBLE ROUTE LINE CENTER POSITION ADJUSTMENT : Description
Adjust the center position of the possible route line of the rear view monitor if it is shifted.

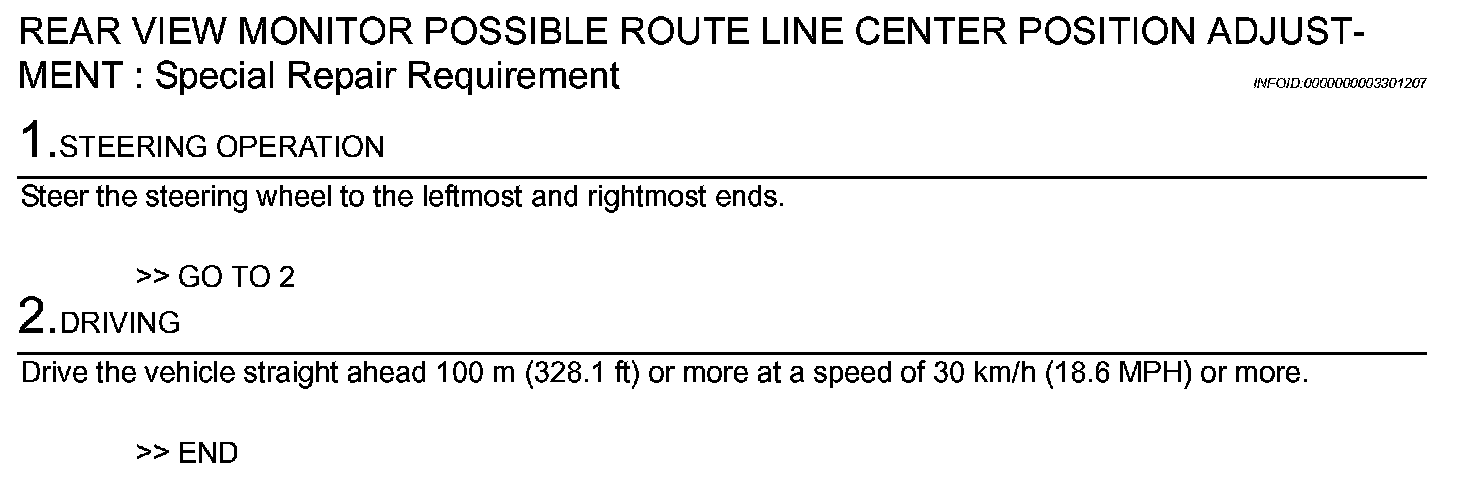

REAR VIEW MONITOR POSSIBLE ROUTE LINE CENTER POSITION ADJUSTMENT : Special Repair Requirement

Step 1-2:
