Overhaul

DOOR MIRROR

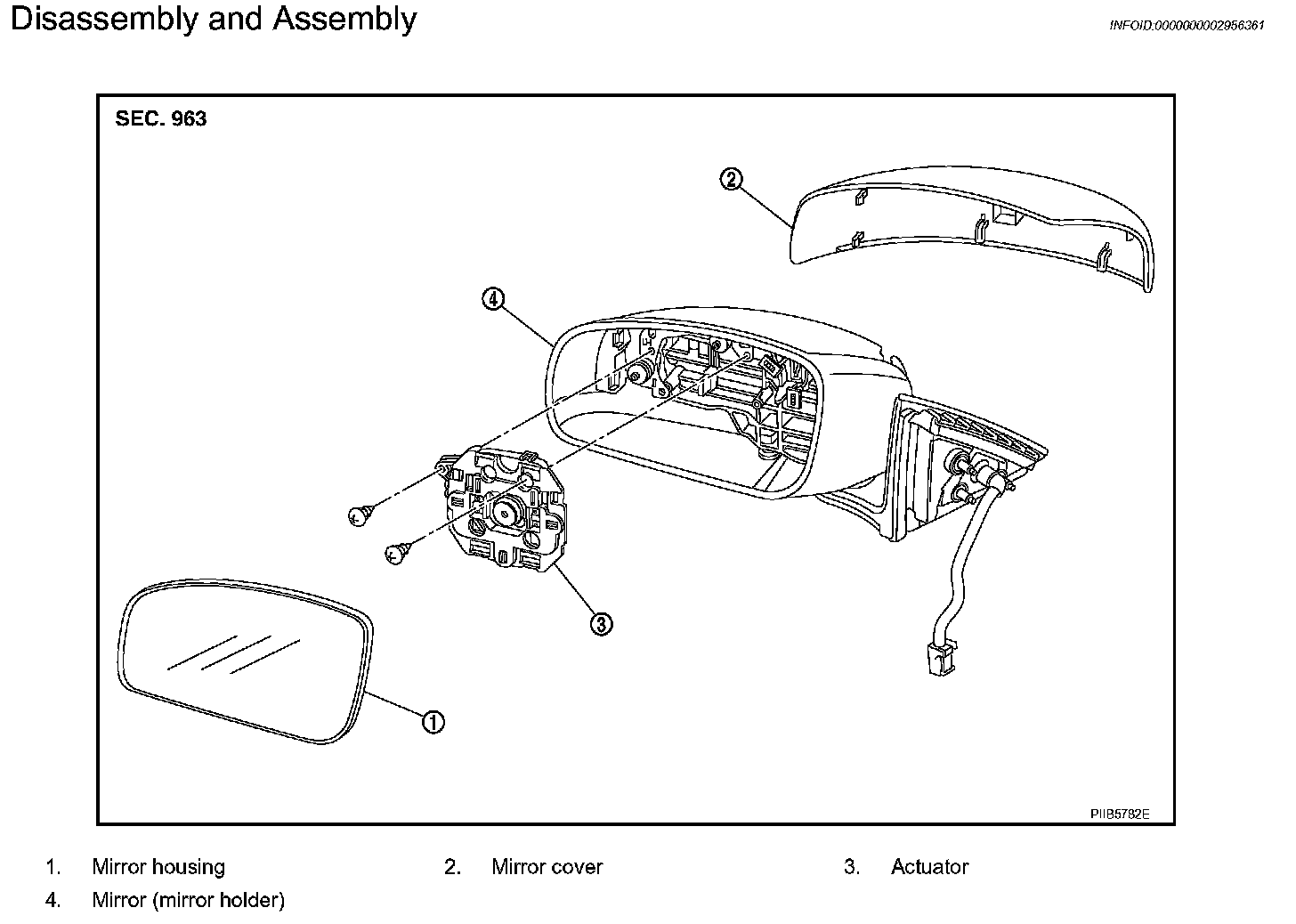

DISASSEMBLY AND ASSEMBLY






DISASSEMBLY




1. Place the mirror body with mirror glass facing upward.
2. Put a strip of protective tape B on mirror body.
3. As shown in the figure, insert a small slotted screwdriver (A) into the recess between mirror base (mirror holder)(1) and mirror holder bracket (2) and push up two pawls (3) to remove mirror holder lower half side.

NOTE: When pushing up pawls do not attempt to use one recess only, be sure to push up with both recesses. Insert screwdriver into recesses, and push up while rotating (twist) to make work easier.

4. Remove two terminals of mirror heater attachment.
5. Lightly lift up lower side of mirror surface from mirror surface, and detach two pawls of upper pulling it out. Remove mirror surface from mirror body.

NOTE: Be certain not to allow grease on sealing agent in center of mirror body assembly (actuator) or of mirror surface (mirror holder).




6. Remove the clips and mirror cover from the housing.

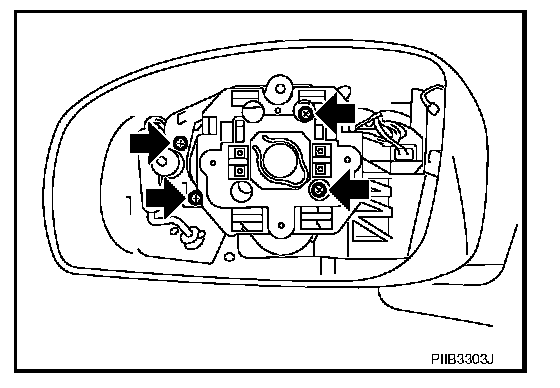

7. Remove the screws and actuator from the housing.

ASSEMBLY
1. Install the actuator.
2. Install the mirror cover.
3. Place mirror holder bracket and mirror body assembly (actuator) in a horizontal position.




4. Connect two terminals of heater installed mirror.

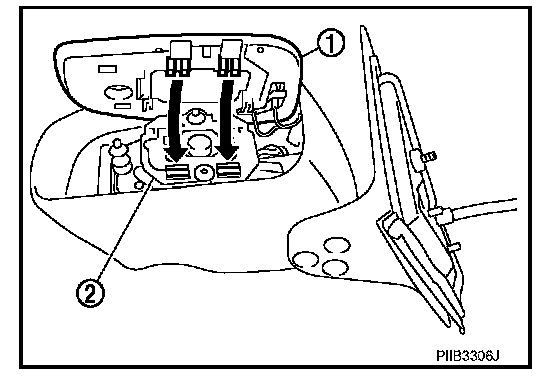

5. Fit the upper two pawls on the mirror face (1) onto the mirror holder bracket (2) first, then press the lower side of mirror face until a click sound is heard to engage the lower pawls.

NOTE: After installation, visually make sure lower two pawls are securely engaged from the bottom of mirror face.
