Engine Room Harness
>>

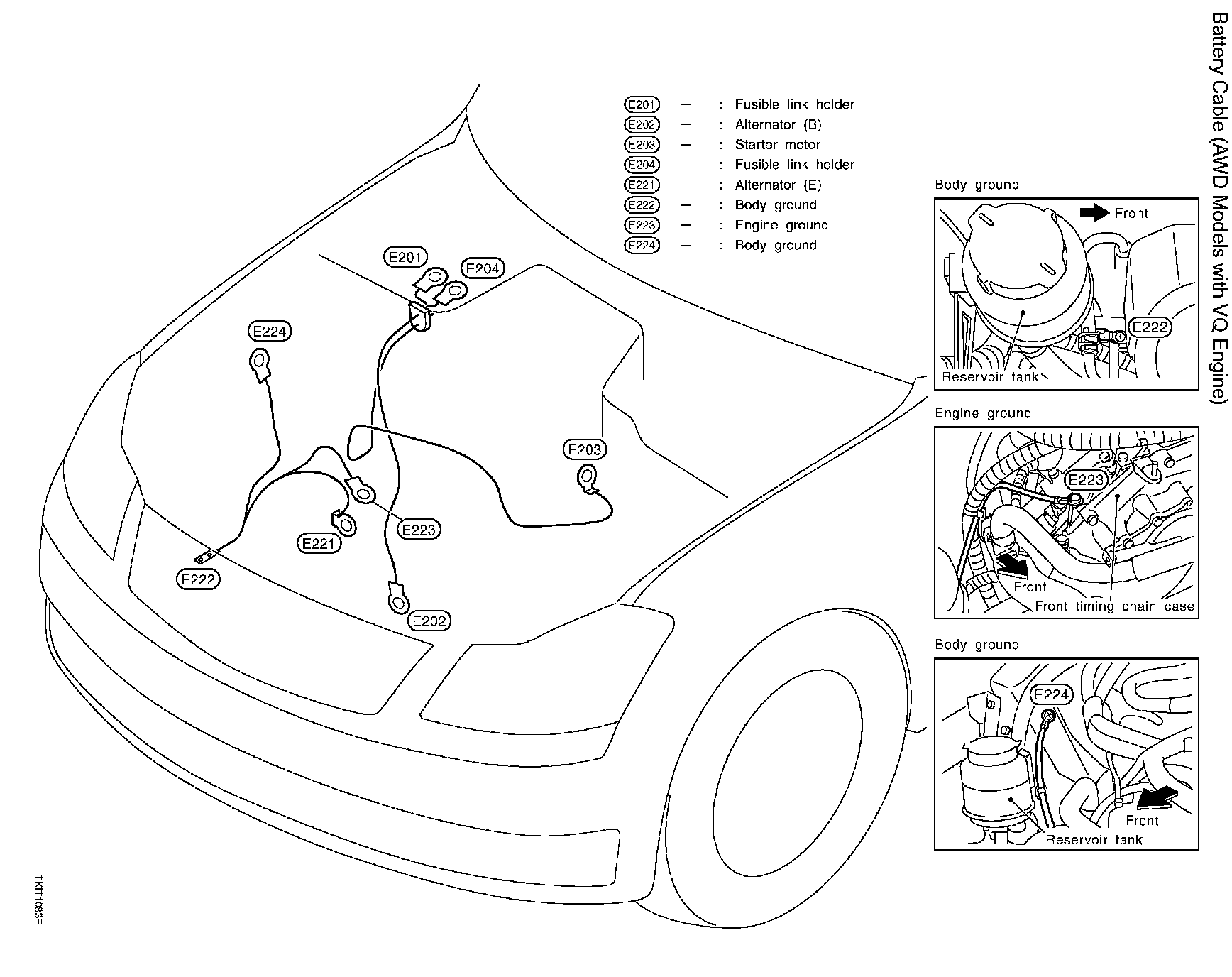

Battery Cable (AWD Models With VQ Engine)
Battery Cable (AWD Models With VQ Engine)
