Home
>>
Infiniti
>>
2008
>>
M35x AWD V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Diagram Name
>>
STC Diagrams (Steering Control System)
>>
STC-EPS
STC-EPS

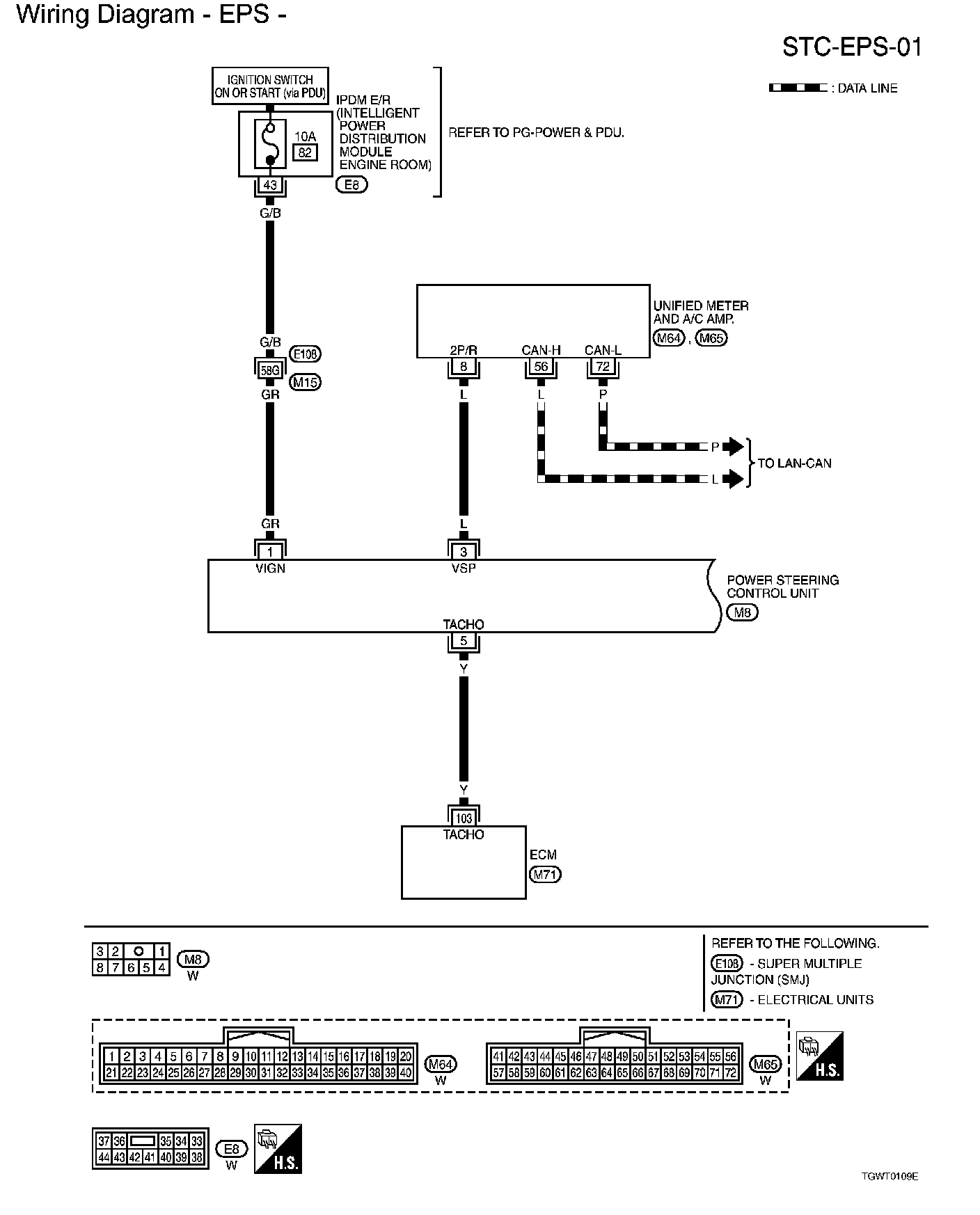

STC-EPS-01:

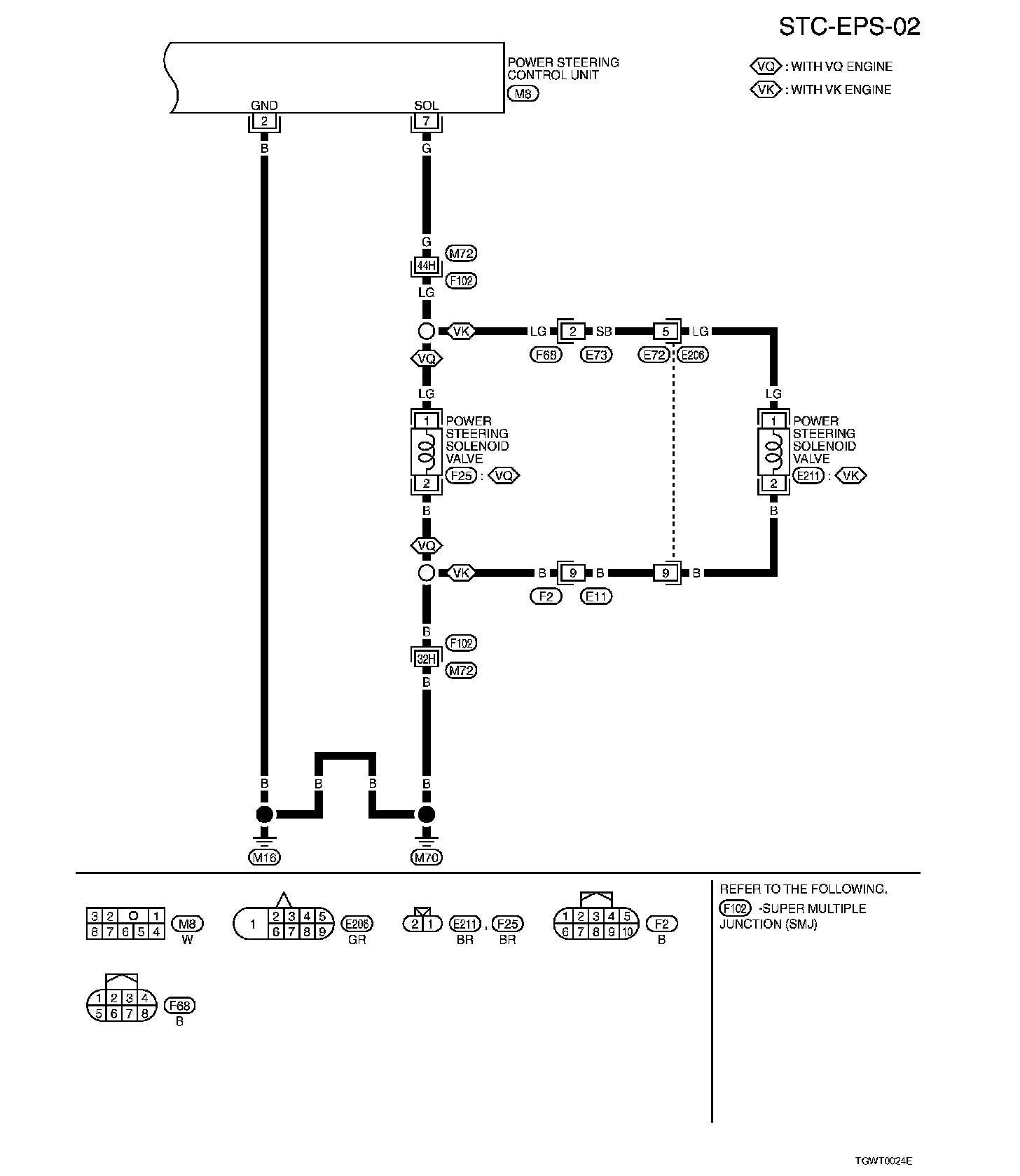

STC-EPS-02:
