Wiring Diagram - RAS -
STC-RAS-01:

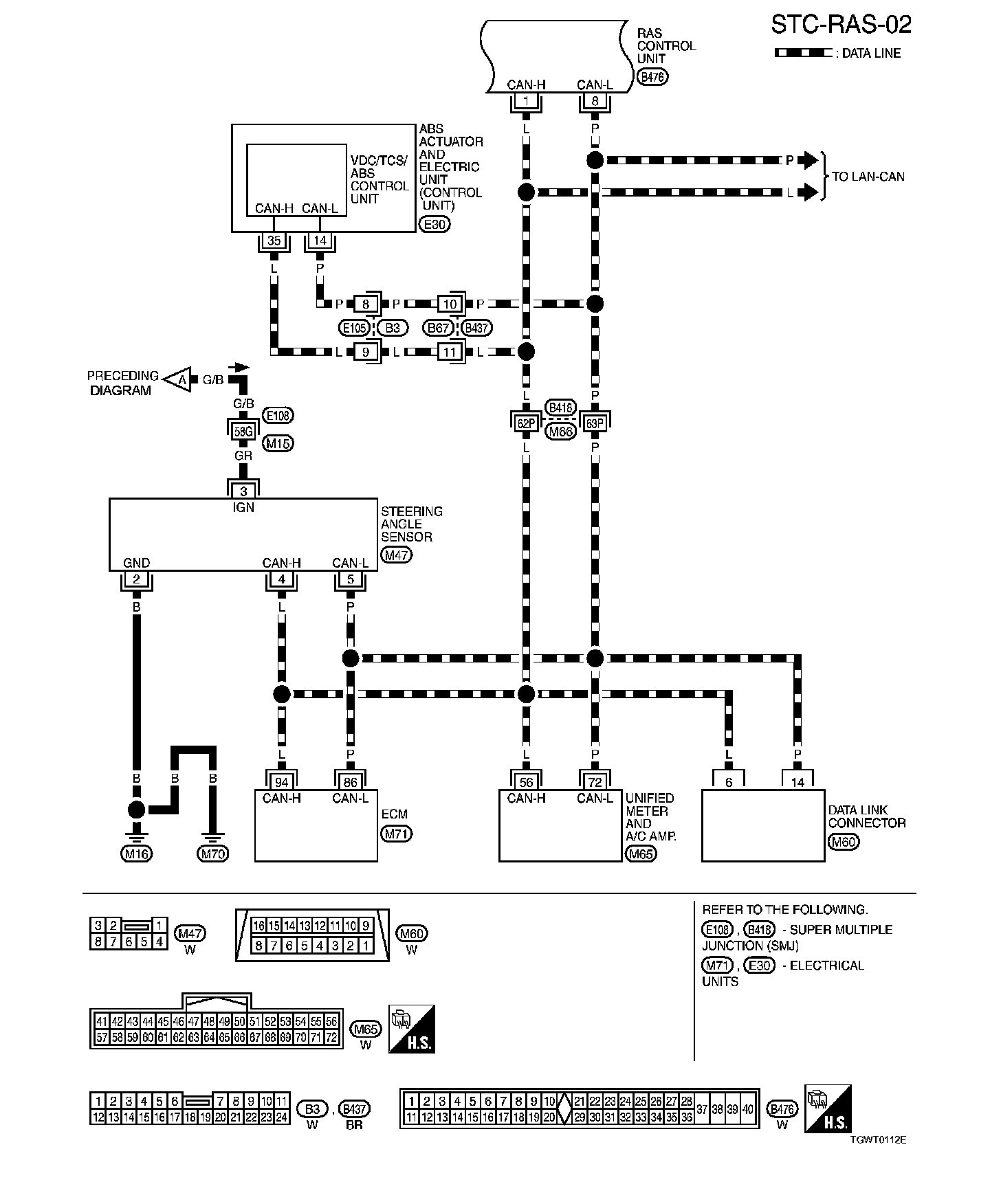

STC-RAS-02:

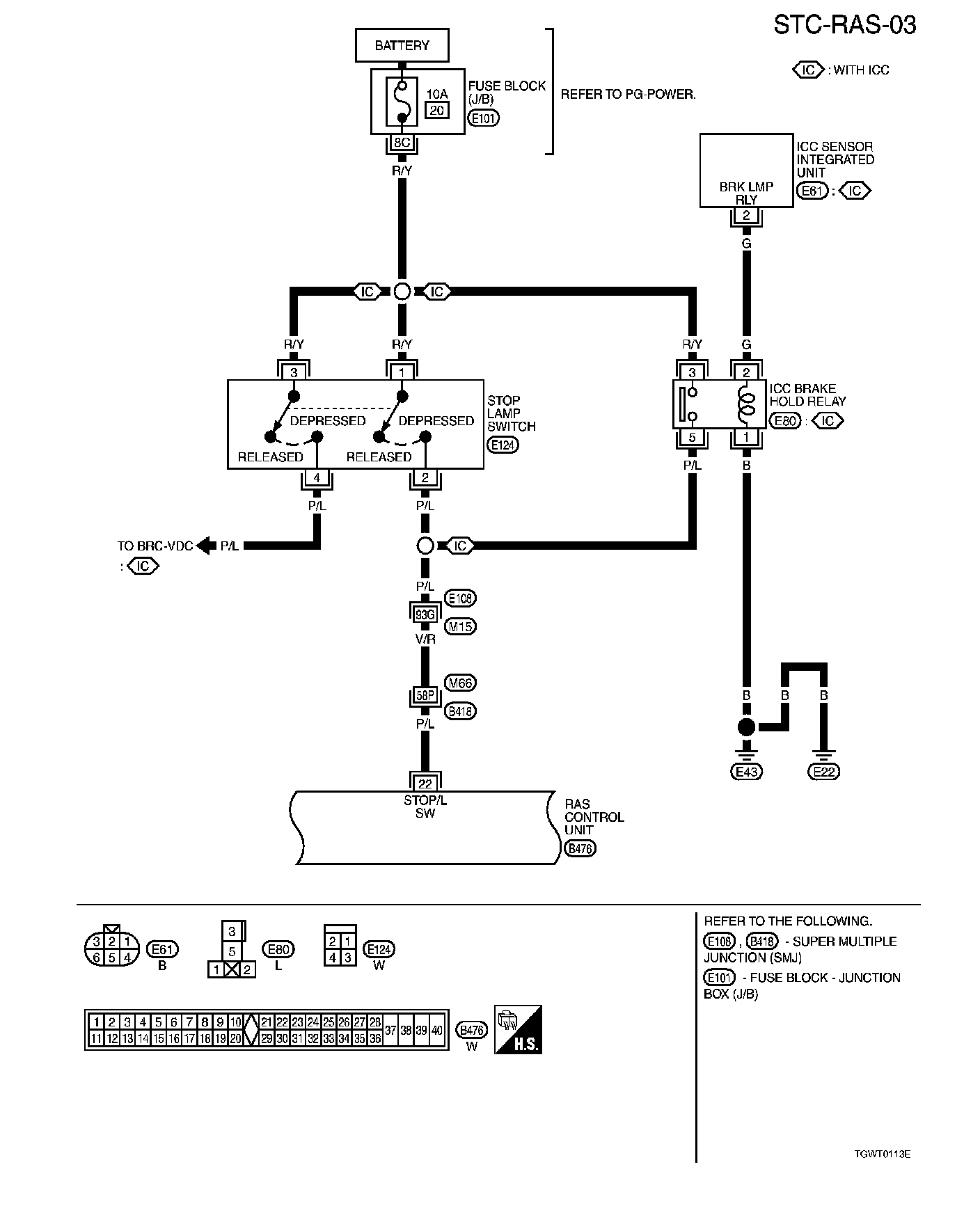

STC-RAS-03:

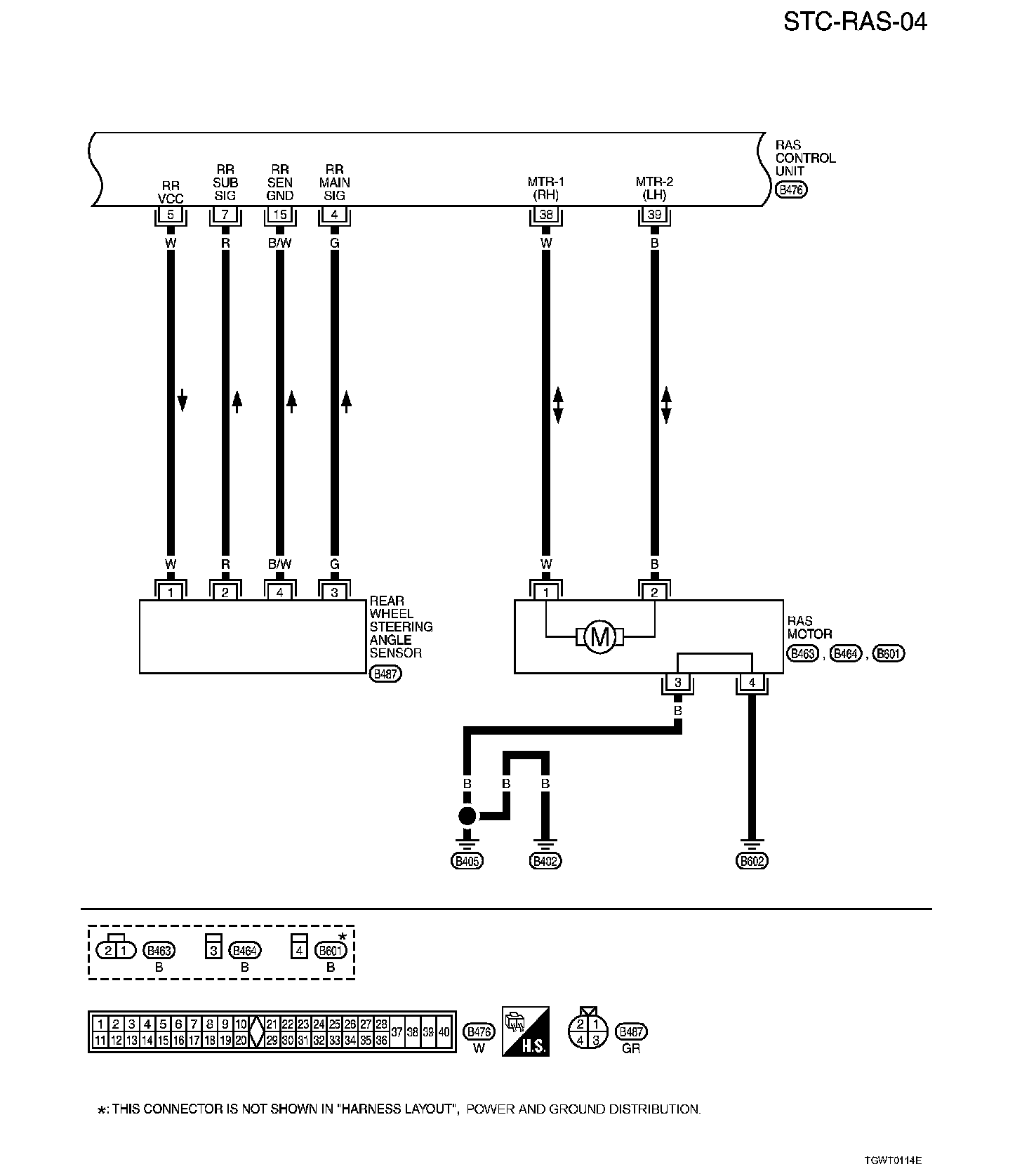

STC-RAS-04:

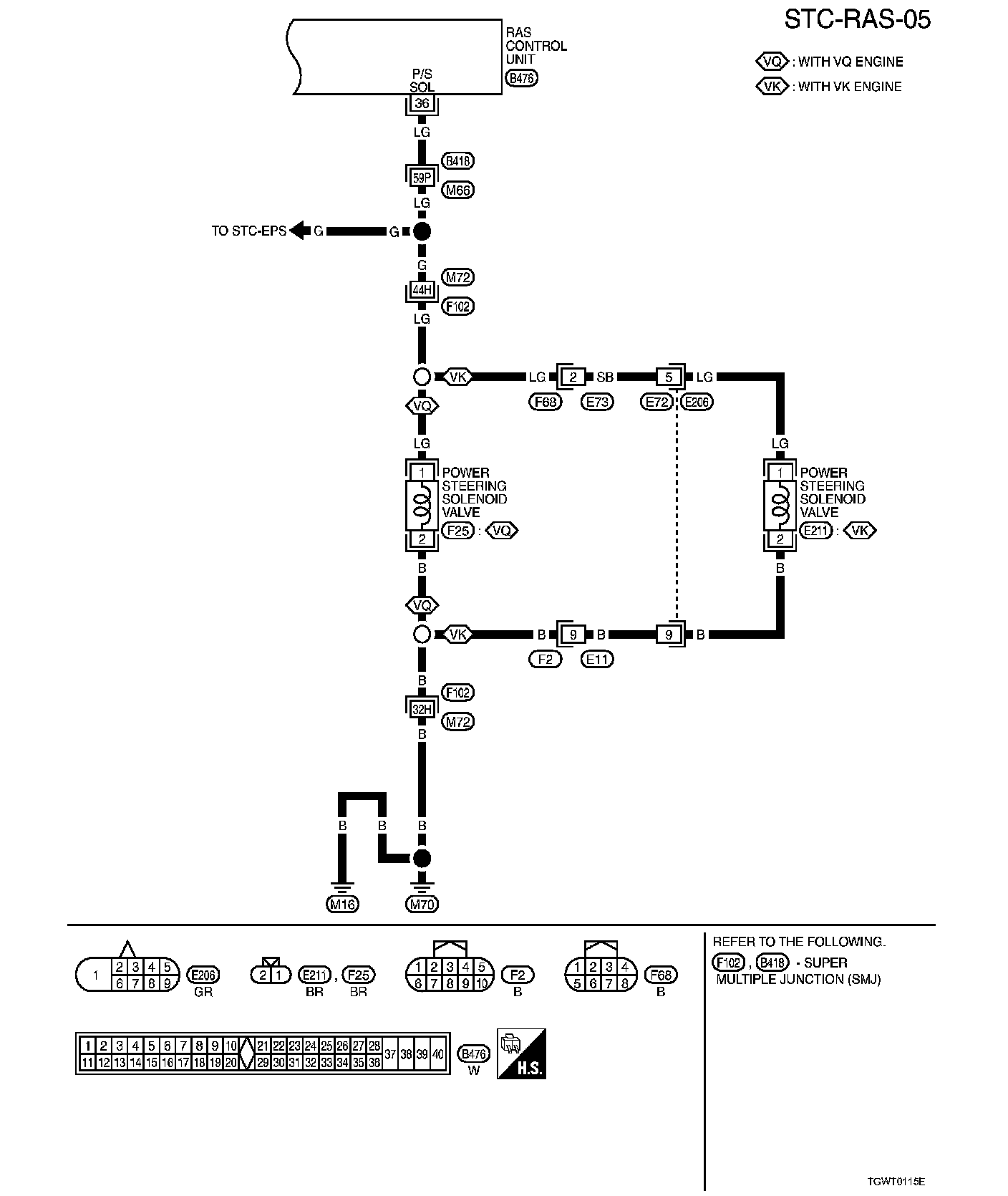

STC-RAS-05:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
