Wiper and Washer Systems
Wiring Diagram - WIPERWW-WIPER-01:

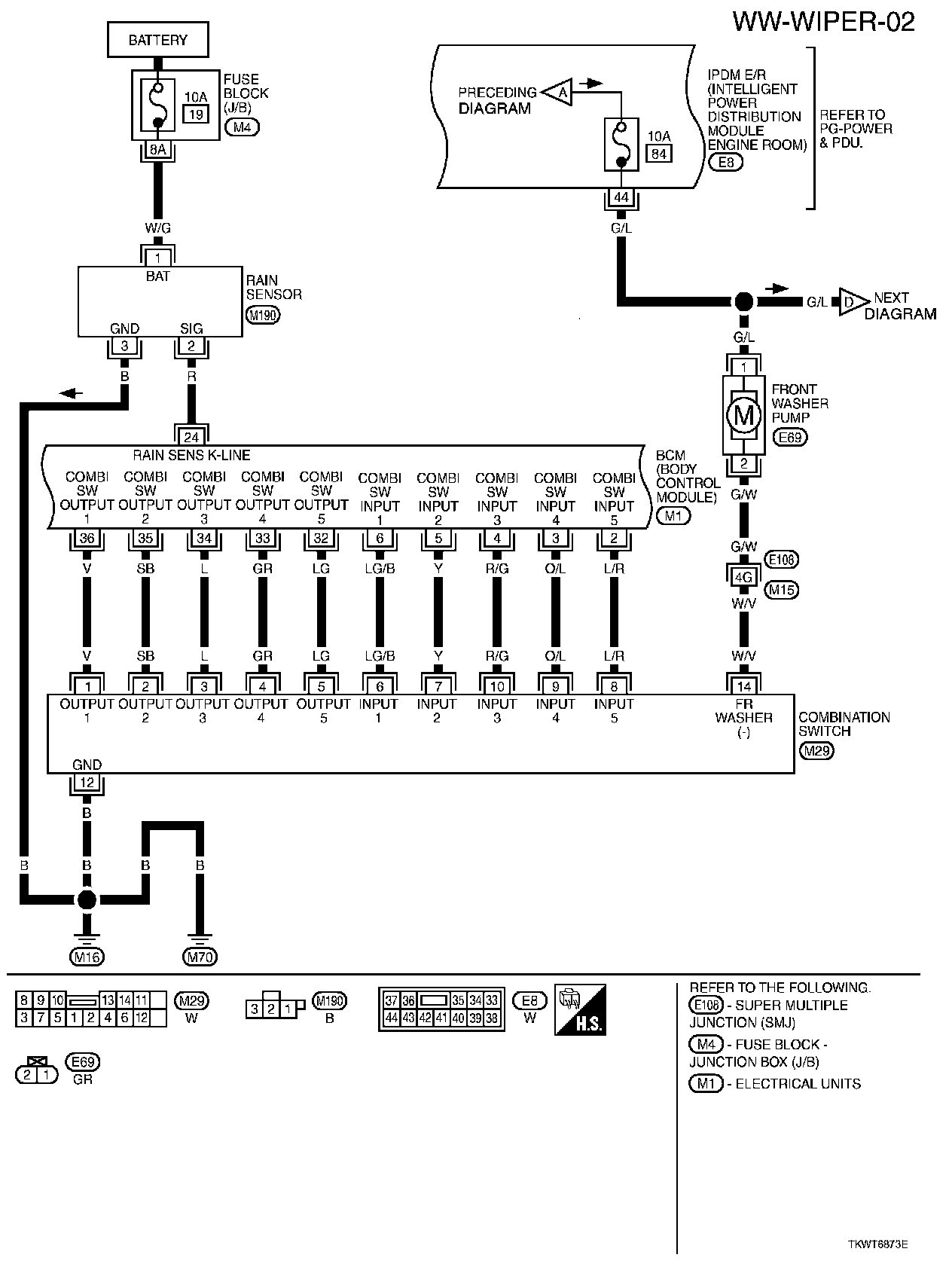

WW-WIPER-02:
WW-WIPER-03:
WW-WIPER-04:
WW-WIPER-05:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
