Removal and Installation of Cluster Lid A

CLUSTER LID A

CLUSTER LID A : Removal and Installation

REMOVAL

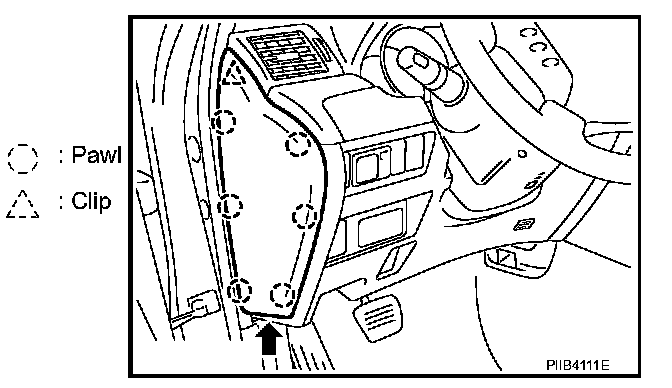

1. Remove instrument side finisher LH.
- Insert a remover into lower space.
- Pull the instrument side finisher LH crosswise.

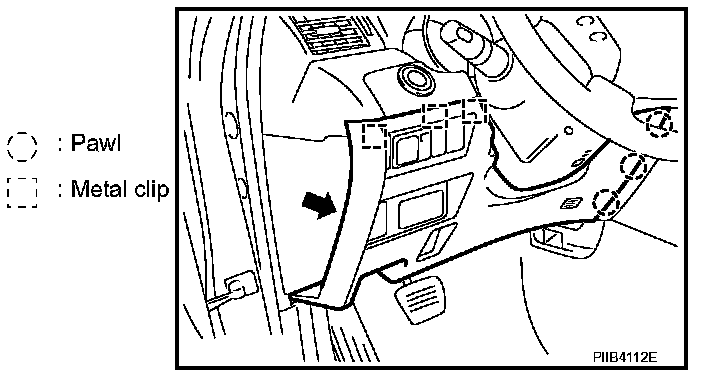

2. Remove instrument driver lower panel.
- Remove hood opener mounting bolt.
- Pull back.
- Disconnect harness connectors.




3. Remove instrument finisher A.
- Insert a remover into upper space.
- Pull back instrument finisher A.




4. Remove instrument finisher C.
- Insert a remover into upper space.
- Pull back instrument finisher C.

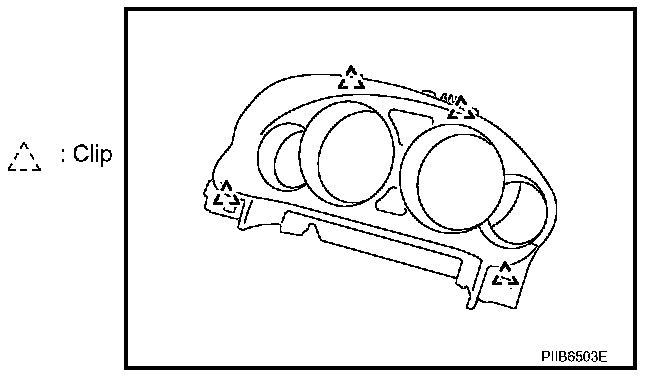

5. Remove cluster lid A.
- Pull back.

INSTALLATION
Install in the reverse order of removal.
