Electrical Diagrams

INTERIOR ROOM LAMP

Wiring Diagram - ROOM/L -

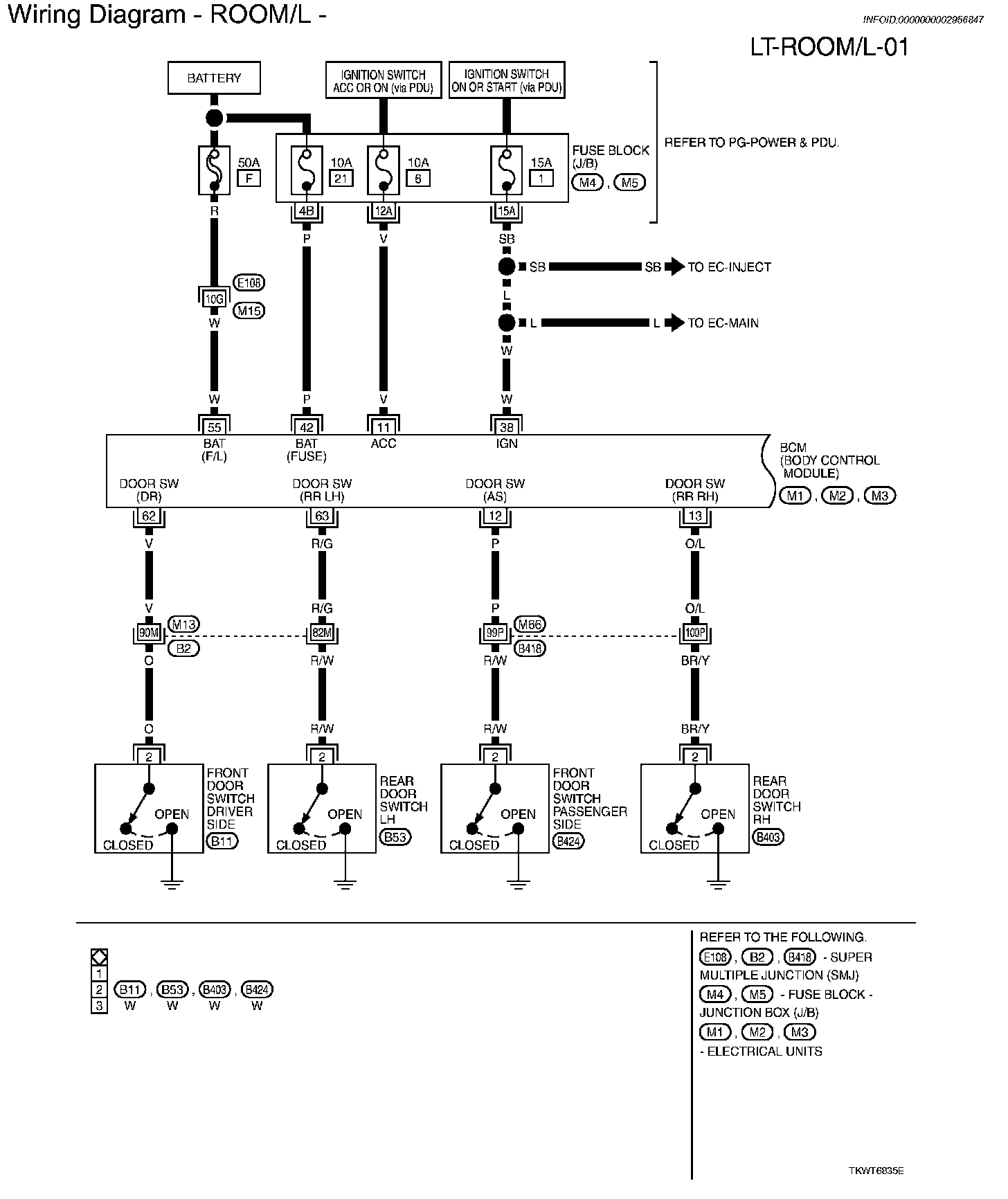

LT-ROOM/L-01:

LT-ROOM/L-02:

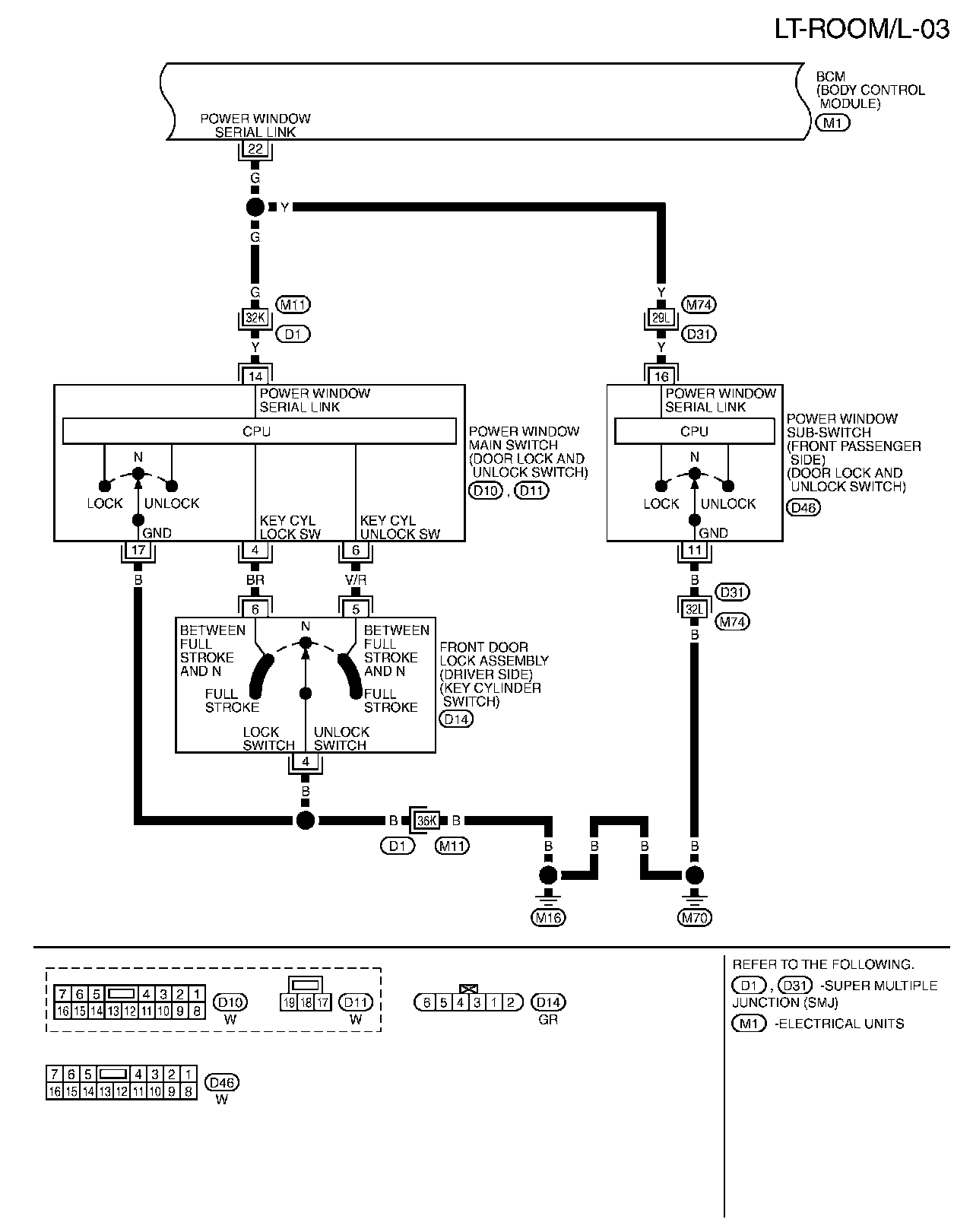

LT-ROOM/L-03:

LT-ROOM/L-04:

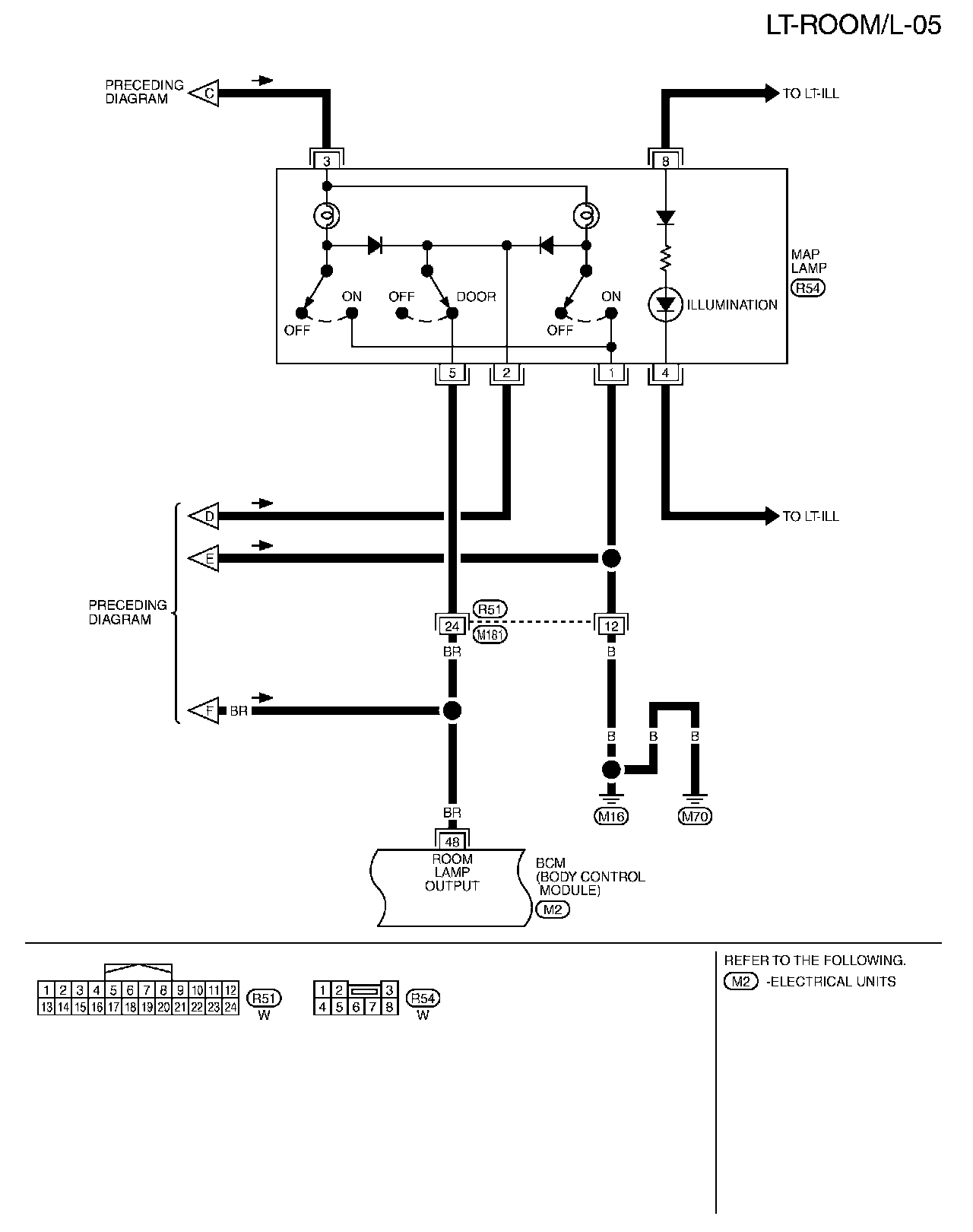

LT-ROOM/L-05:

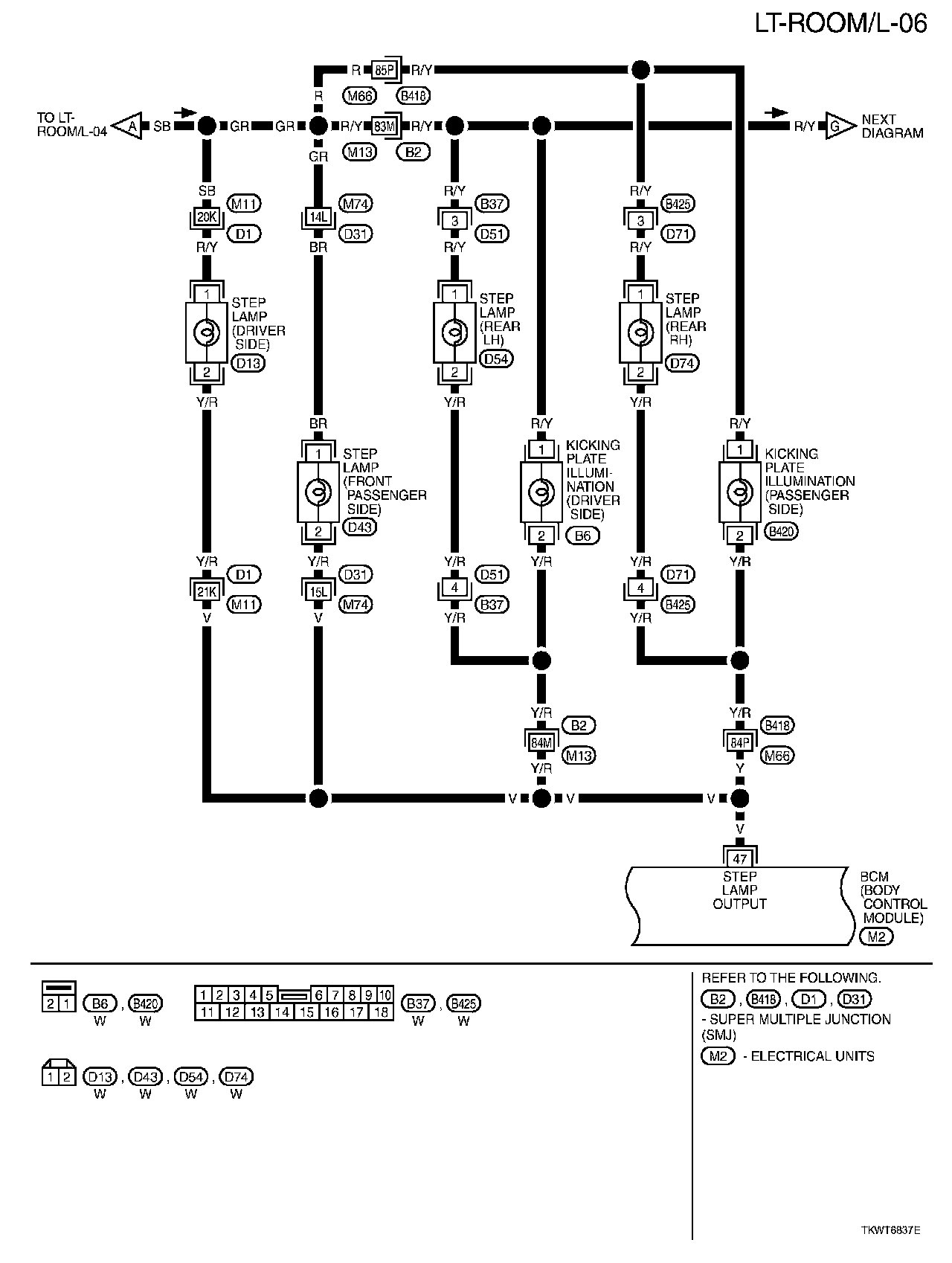

LT-ROOM/L-06:

LT-ROOM/L-07:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
