Courtesy Lamp: Service and Repair

Personal Lamp

REMOVAL AND INSTALLATION

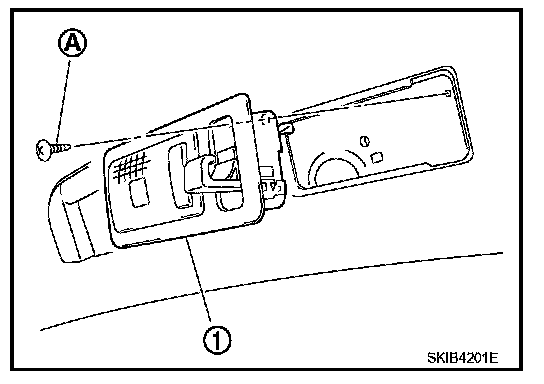

Removal




1. Remove screw (A).
2. Use a clip driver or similar tool and remove personal lamp (1).
3. Disconnect connector.

Installation
Installation is the reverse order of removal.

Foot Lamp (Driver Side)

REMOVAL AND INSTALLATION

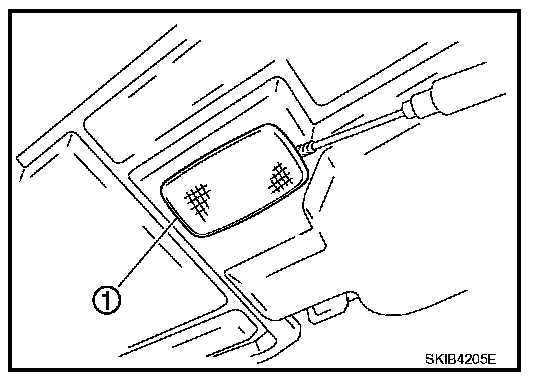

Removal




1. Use a clip driver or similar tool and remove foot lamp (driver side) (1).
2. Disconnect connector.

Installation
Installation is the reverse order of removal.

Foot Lamp (Passenger Side)

REMOVAL AND INSTALLATION

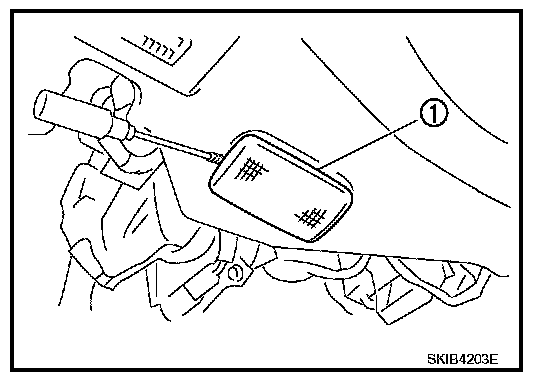

Removal




1. Use a clip driver or similar tool and remove foot lamp (passenger side) (1).
2. Disconnect connector.

Installation
Installation is the reverse order of removal.

Step Lamp

REMOVAL AND INSTALLATION
Remove step lamp integral with door trim.

Kicking Plate Illumination

REMOVAL AND INSTALLATION
Remove integral with front kicking plate inner.
