Horn: Service and Repair

Removal and Installation

REMOVAL
1. Remove front grille.
2. Disconnect horn (HI) connectors.

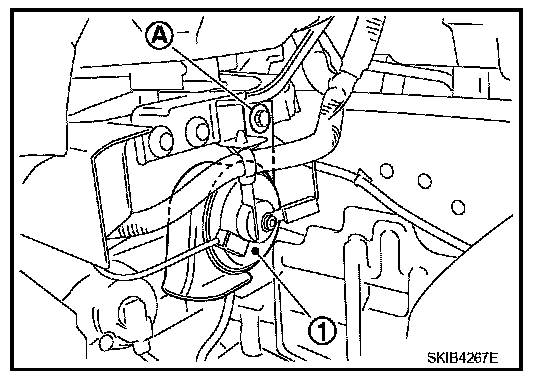

3. Remove horn (HI) mounting bolt (A), and remove horn (HI) (1) from vehicle.
4. Remove fender protector (front) LH to obtain work space between the fender protector and fender.
5. Disconnect horn (LO) connectors.




6. Remove horn (LO) mounting bolts (A), and remove horn (LO) (1) from vehicle.

INSTALLATION
Tighten horn bolt to specified torque.

Horn mounting bolt torque: 17.1 N.m (1.7 kg-m, 13 ft-lb.)
