Electrical Diagrams

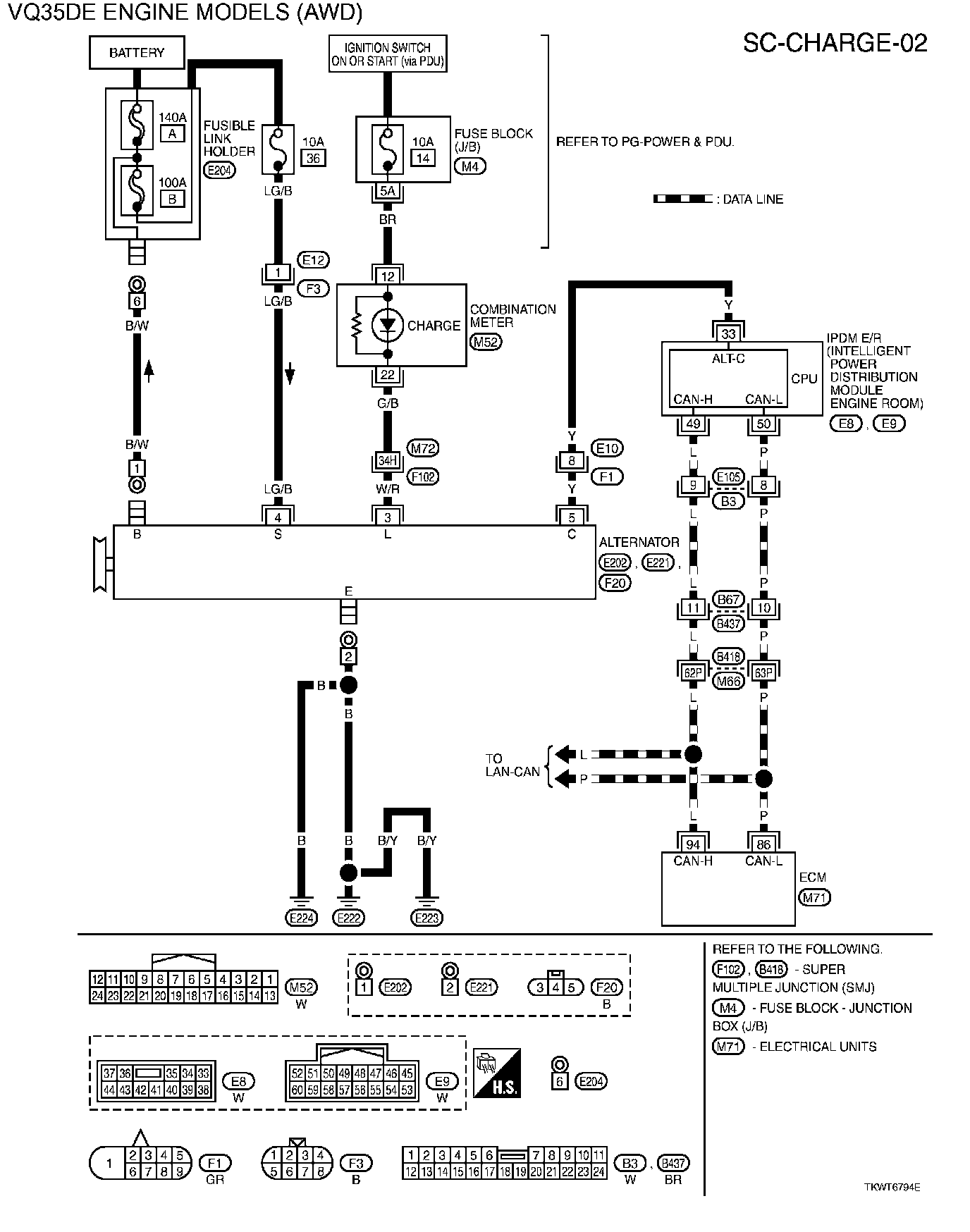

Wiring Diagram - CHARGE -

VQ35DE ENGINE MODELS (AWD)

SC-CHARGE-02:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
