P1715
DTC P1715 INPUT SPEED SENSOR (TURBINE REVOLUTION SENSOR)Description
ECM receives turbine revolution sensor signal from TCM through CAN communication line. ECM uses this signal for engine control.
CONSULT-III Reference Value in Data Monitor Mode
On Board Diagnosis Logic
NOTE:
- If DTC P1715 is displayed with DTC U1000, U1001 first perform the trouble diagnosis for DTC U1000, U1001. Refer to EC-762, "DTC Confirmation Procedure". U1000
- If DTC P1715 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to EC-764, "DTC Confirmation Procedure". U1010
- If DTC P1715 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to EC-1042, "DTC Confirmation Procedure". P0605
- If DTC P1715 is displayed with DTC P0335, first perform the trouble diagnosis for DTC P0335. Refer to EC-941, "DTC Confirmation Procedure". P0335
- If DTC P1715 is displayed with DTC P0340, first perform the trouble diagnosis for DTC P0340. Refer to EC-946, "DTC Confirmation Procedure". P0340
The MIL will not light up for this diagnosis.

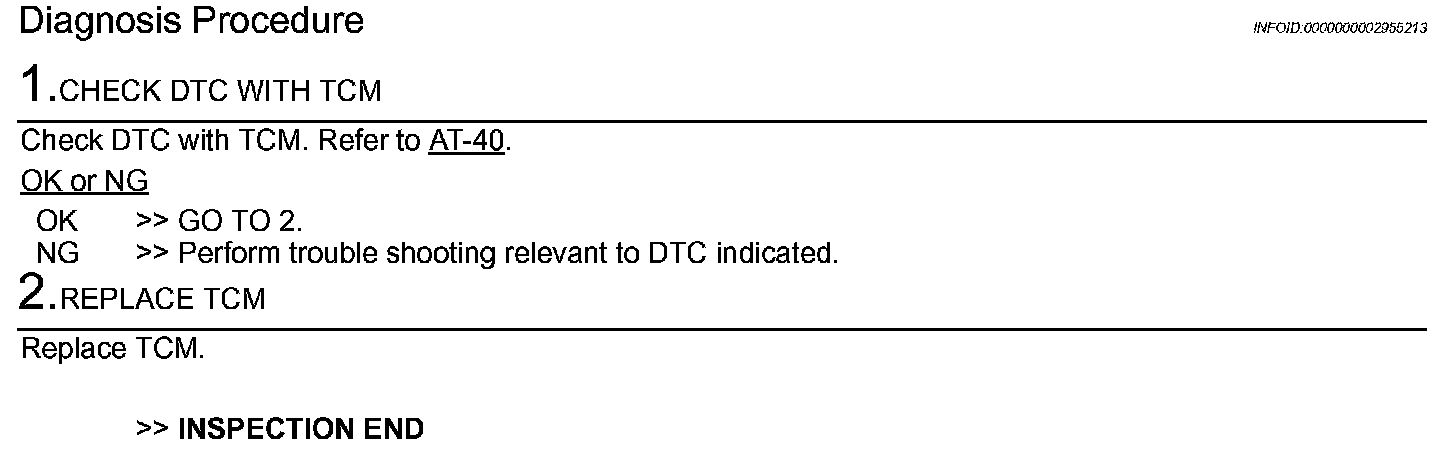

Diagnosis Procedure
