Front Display Unit

FRONT DISPLAY UNIT

Reference Value




TERMINAL LAYOUT

PHYSICAL VALUES

Terminals And Reference Values (Part 1):

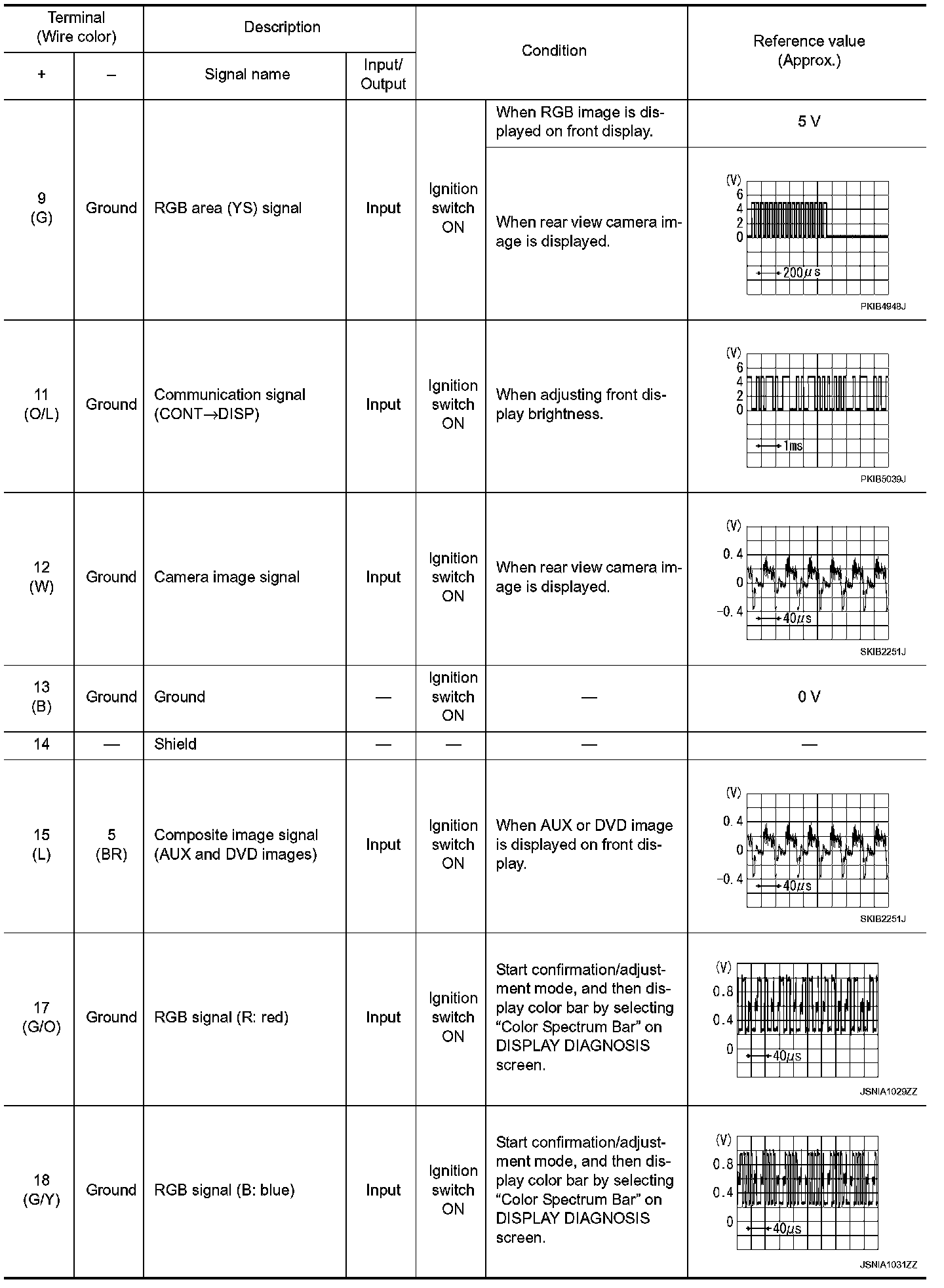

Terminals And Reference Values (Part 2):

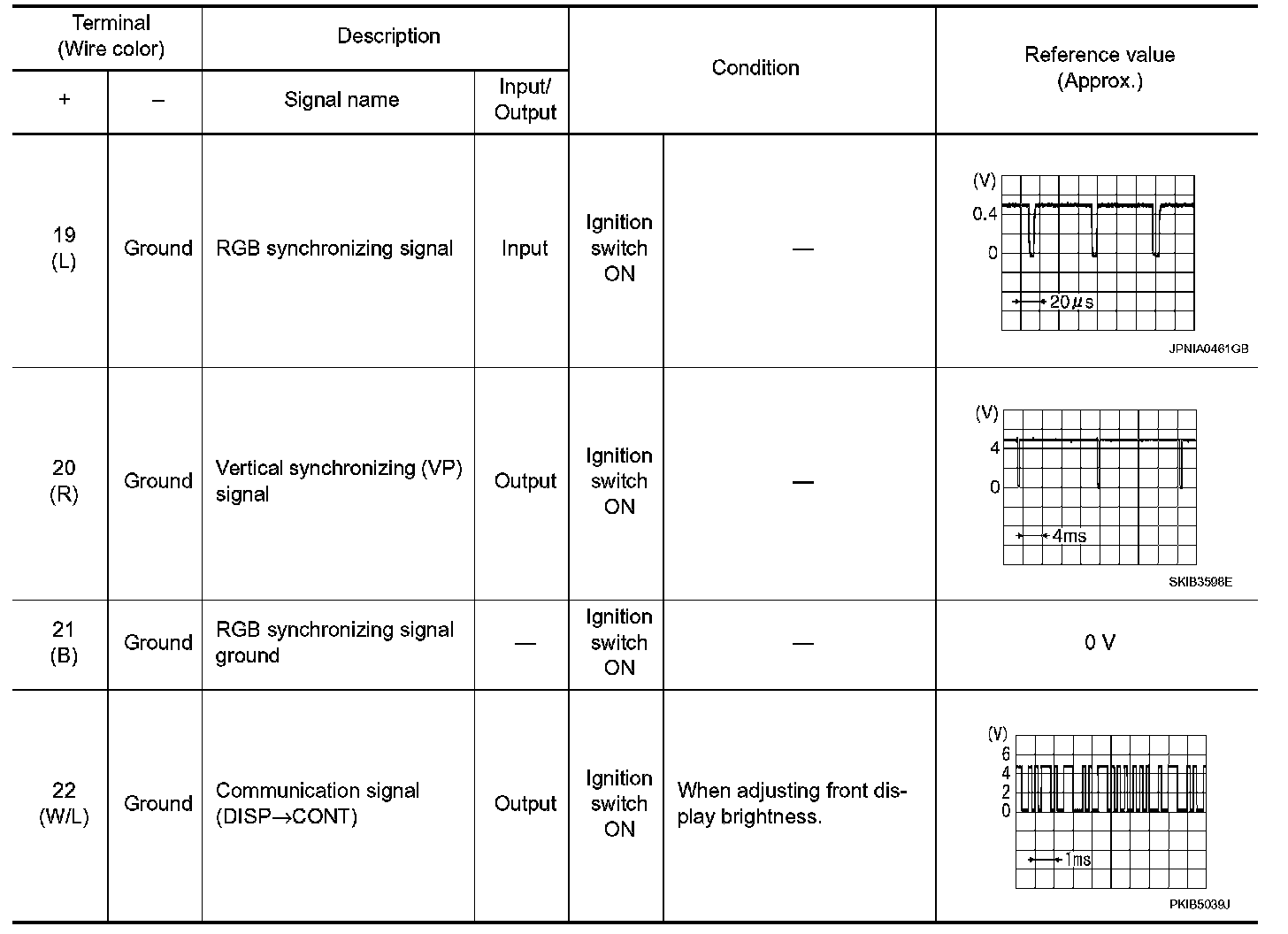

Terminals And Reference Values (Part 3):
