Check Rear Power Seat Switch Circuit

Check Rear Power Seat Switch Circuit

Step 1:

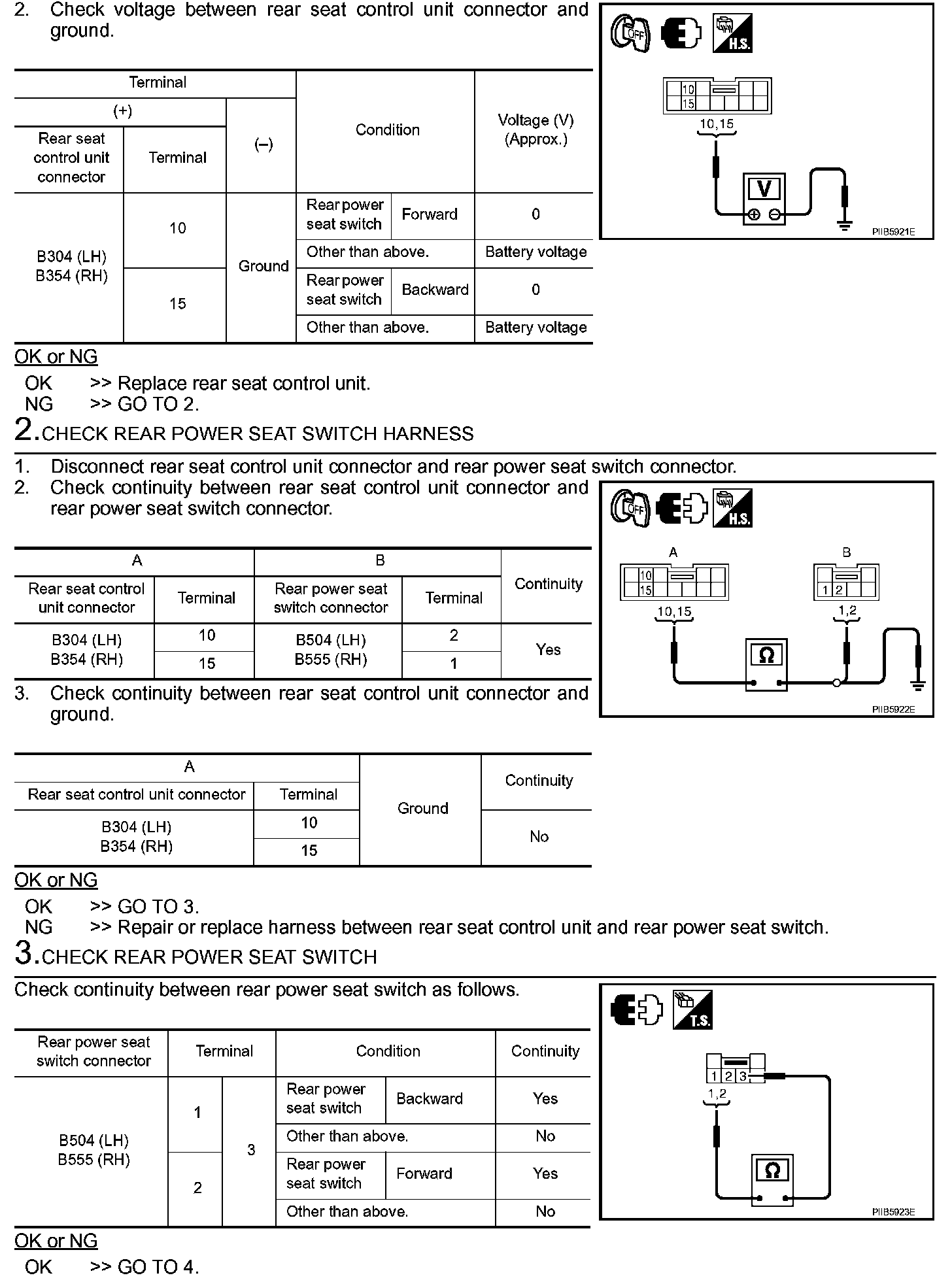

Step 1 (Continued)-3:




Step 3 (Continued)-5:
