Self-Diagnosis By ICC System Display Will Not Run

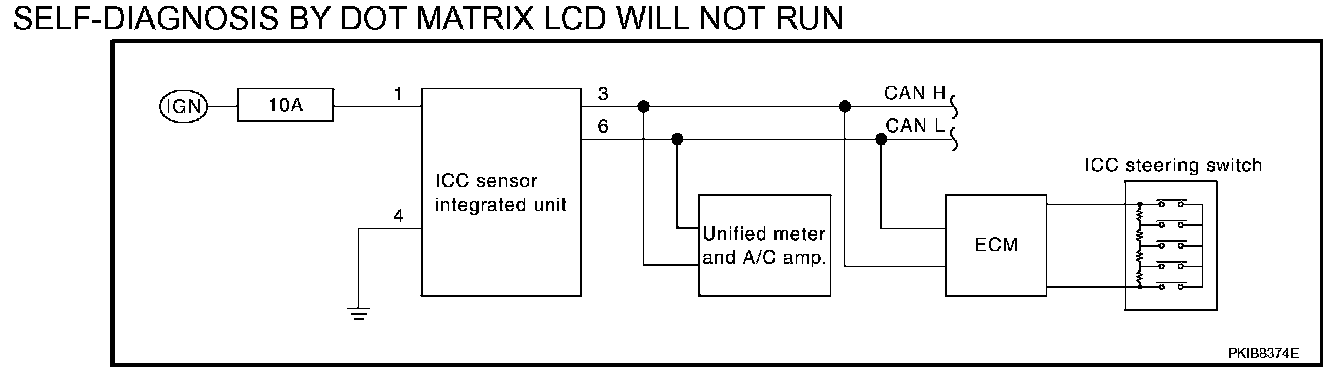

SELF-DIAGNOSIS BY DOT MATRIX LCD WILL NOT RUN

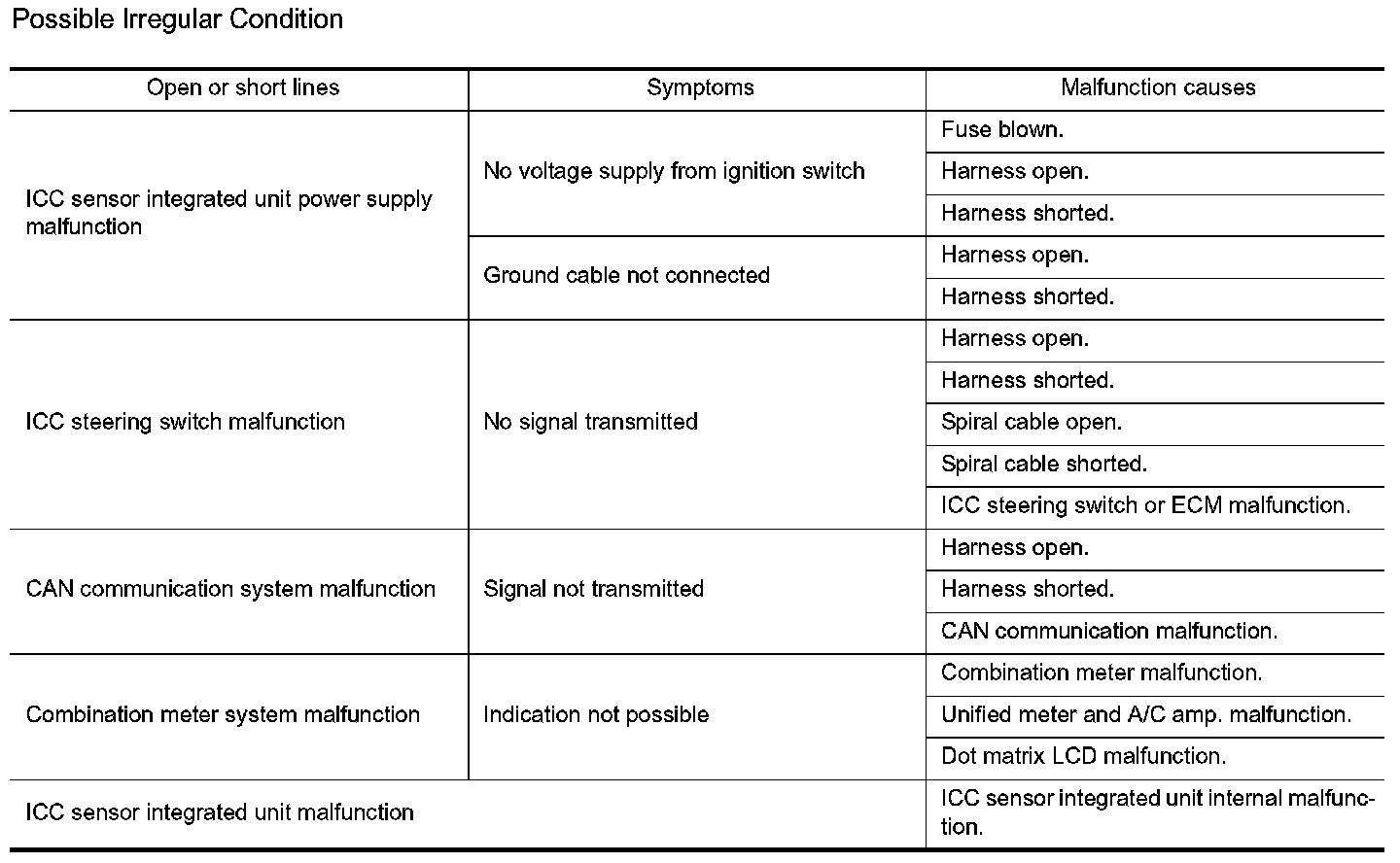

Possible Irregular Condition




Step 1-3:




Step 3 (Continued)-7:




Step 7 (Continued)-9:
