BRC Diagrams (Brake Control System)
BRC Diagrams (Brake Control System)
BRC-VDC-01:
BRC-VDC-02:

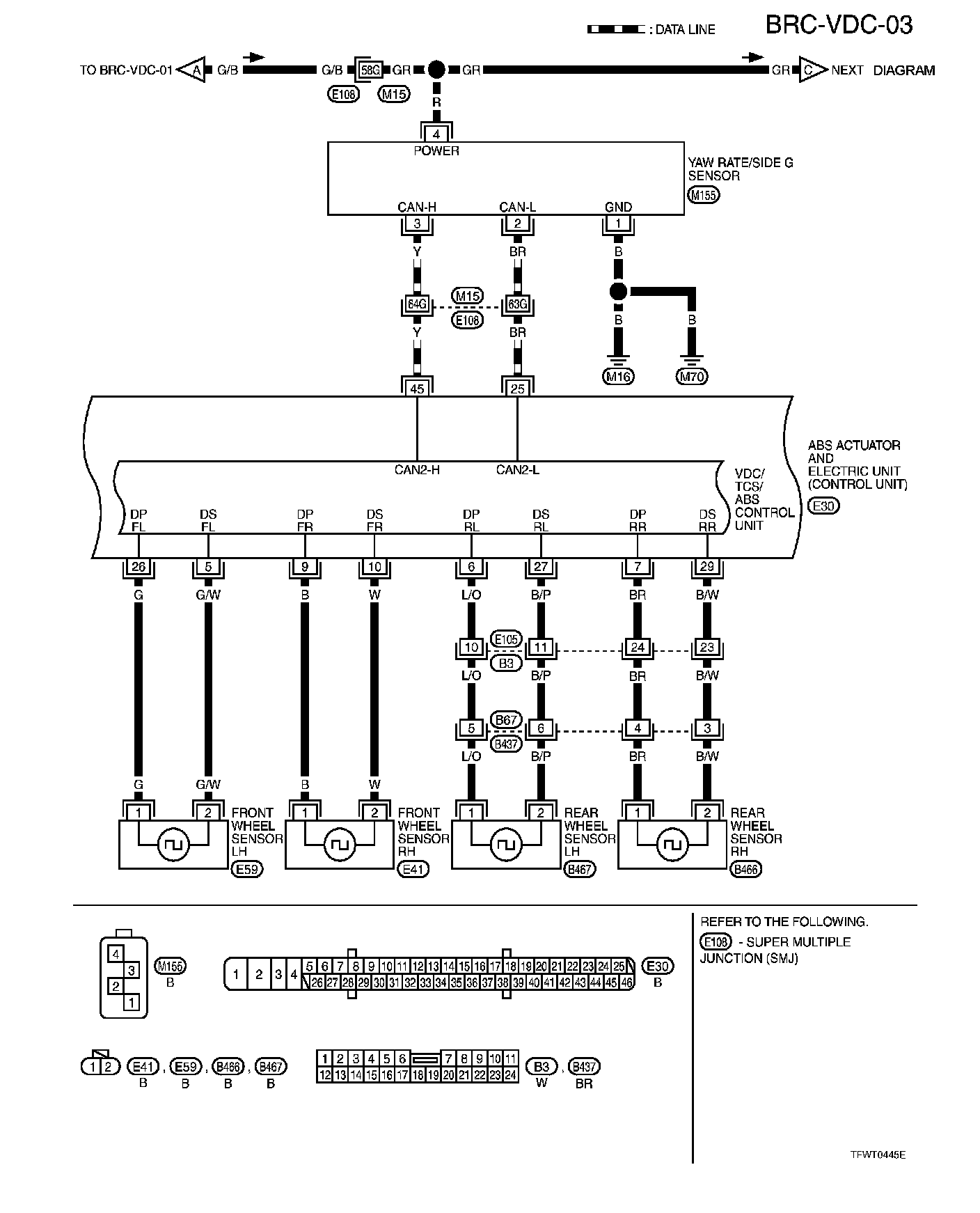

BRC-VDC-03:

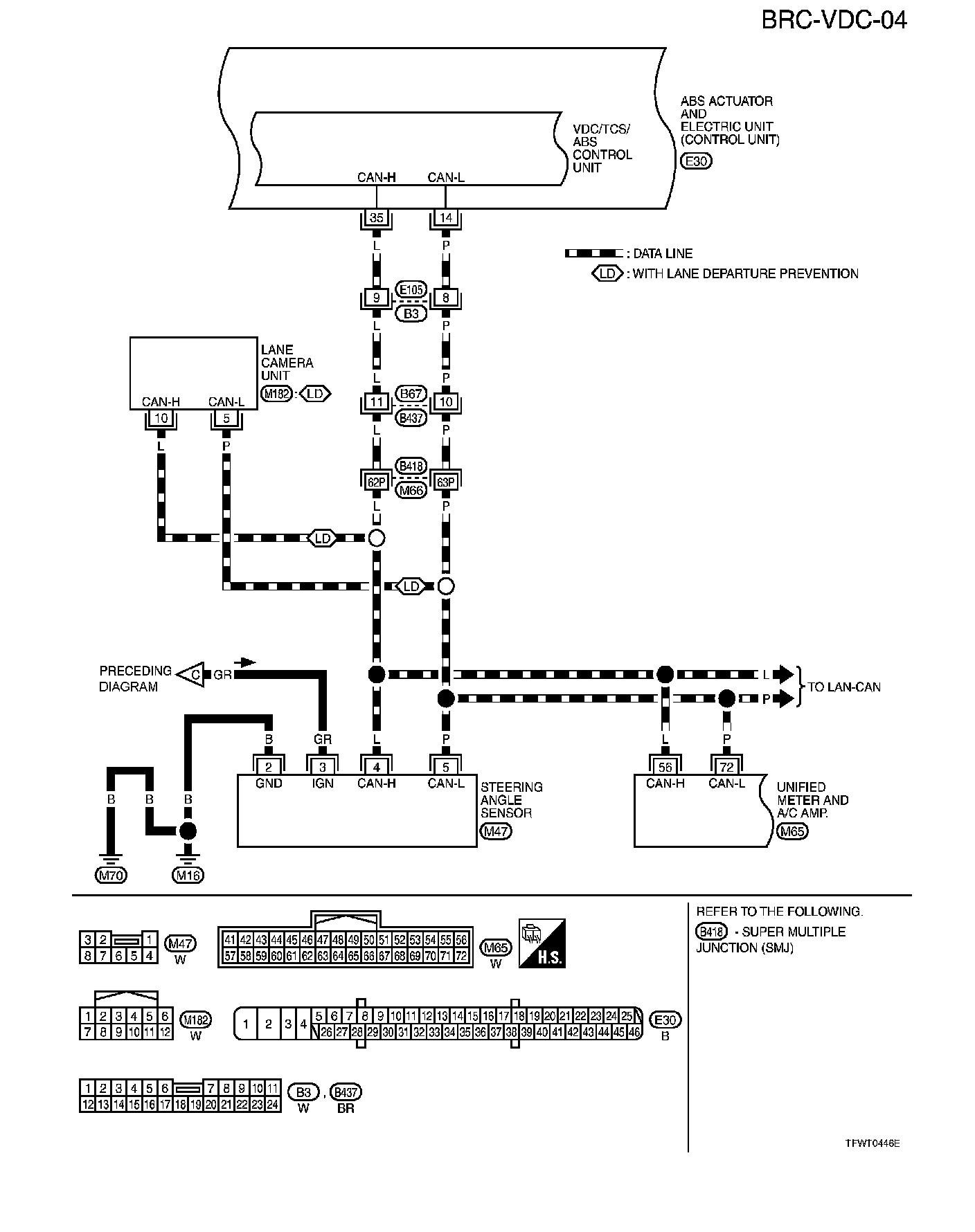

BRC-VDC-04:
BRC-VDC-05:
BRC-VDC-06:
