GW-DEF

REAR WINDOW DEFOGGER

Wiring Diagram - DEF -

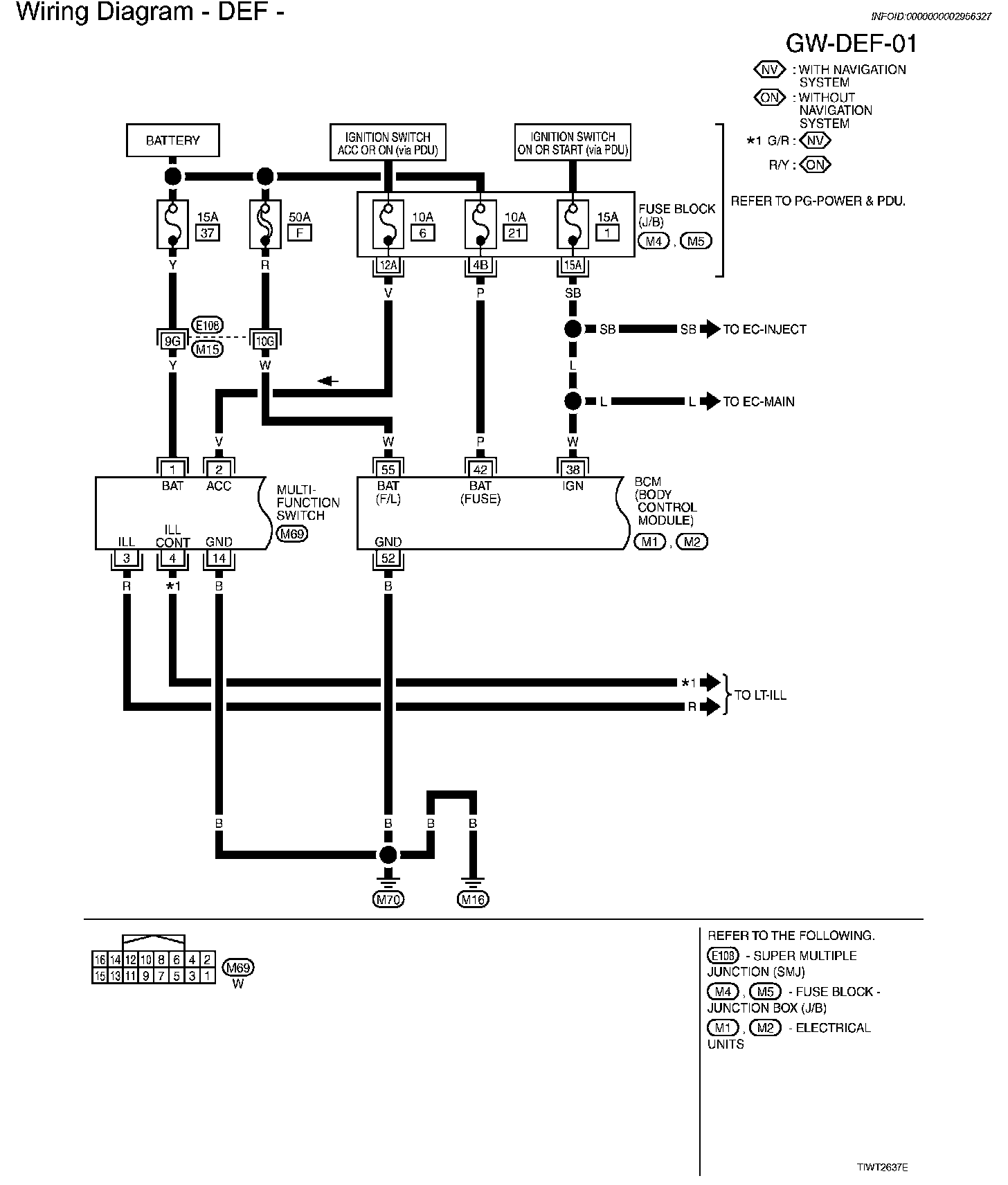

Wiring Diagram - DEF - Part 1:

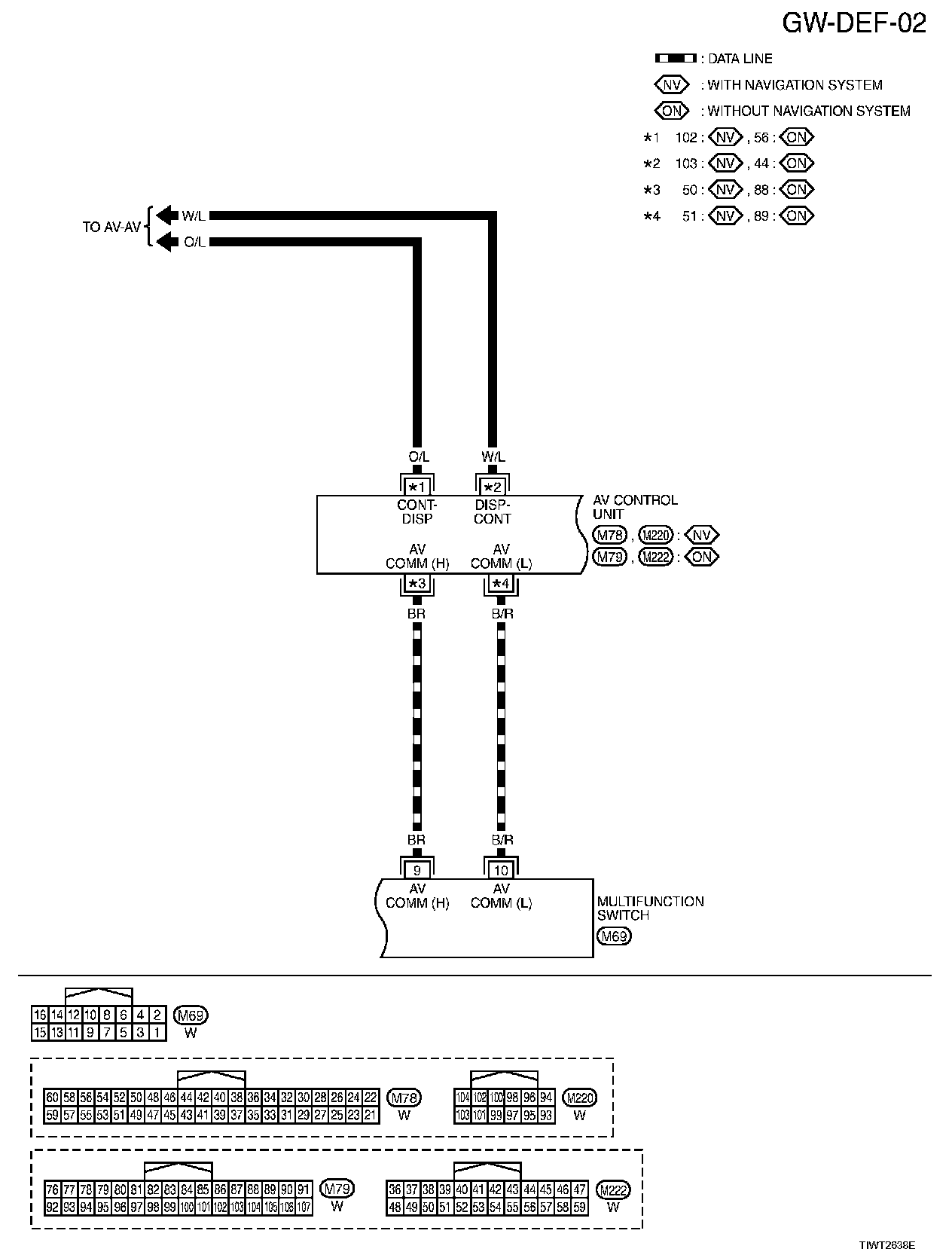

Wiring Diagram - DEF - Part 2:

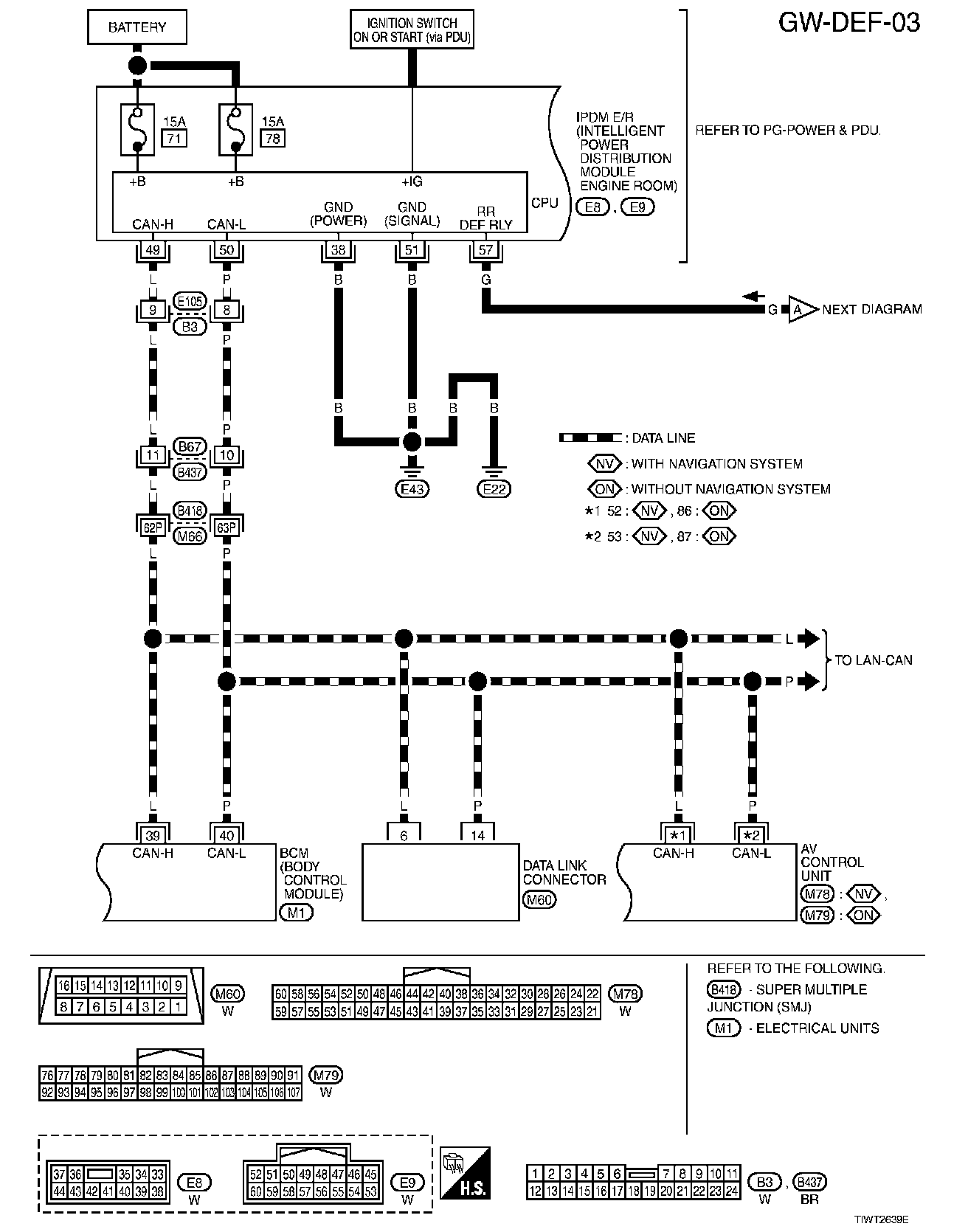

Wiring Diagram - DEF - Part 3:

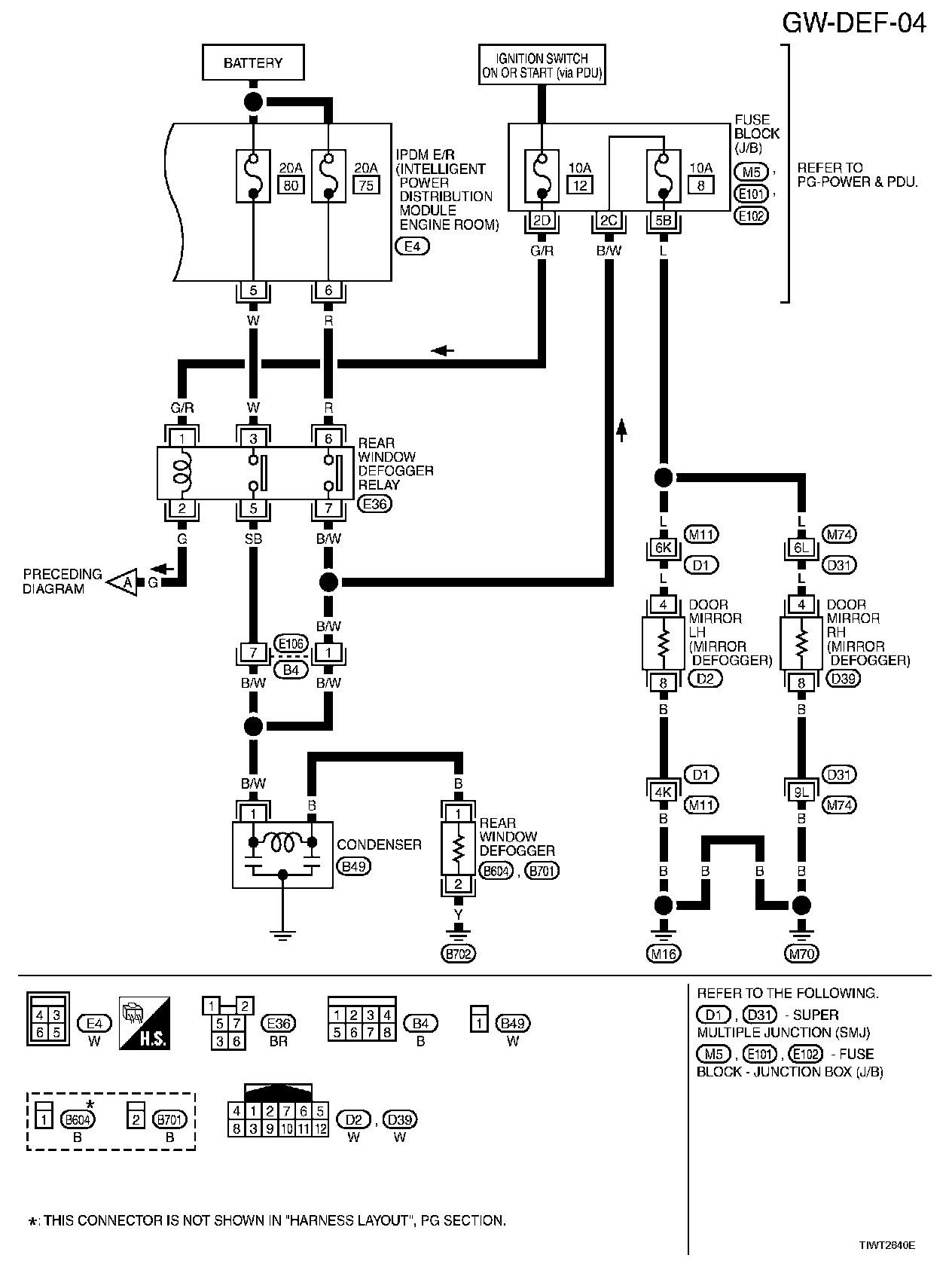

Wiring Diagram - DEF - Part 4:
