System Diagram

Wiring Diagram - A/C -

ATC-A/C-01:

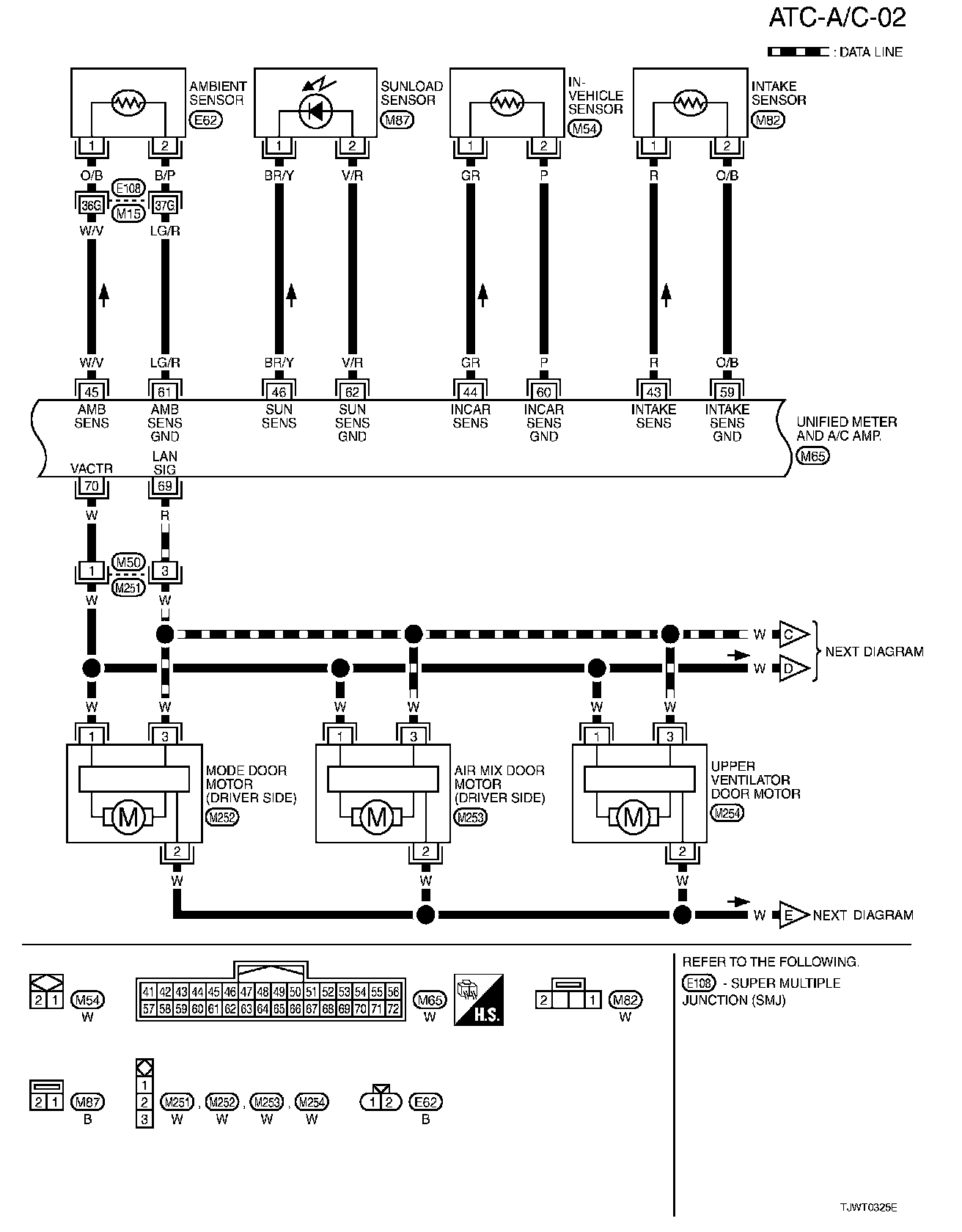

ATC-A/C-02:

ATC-A/C-03:

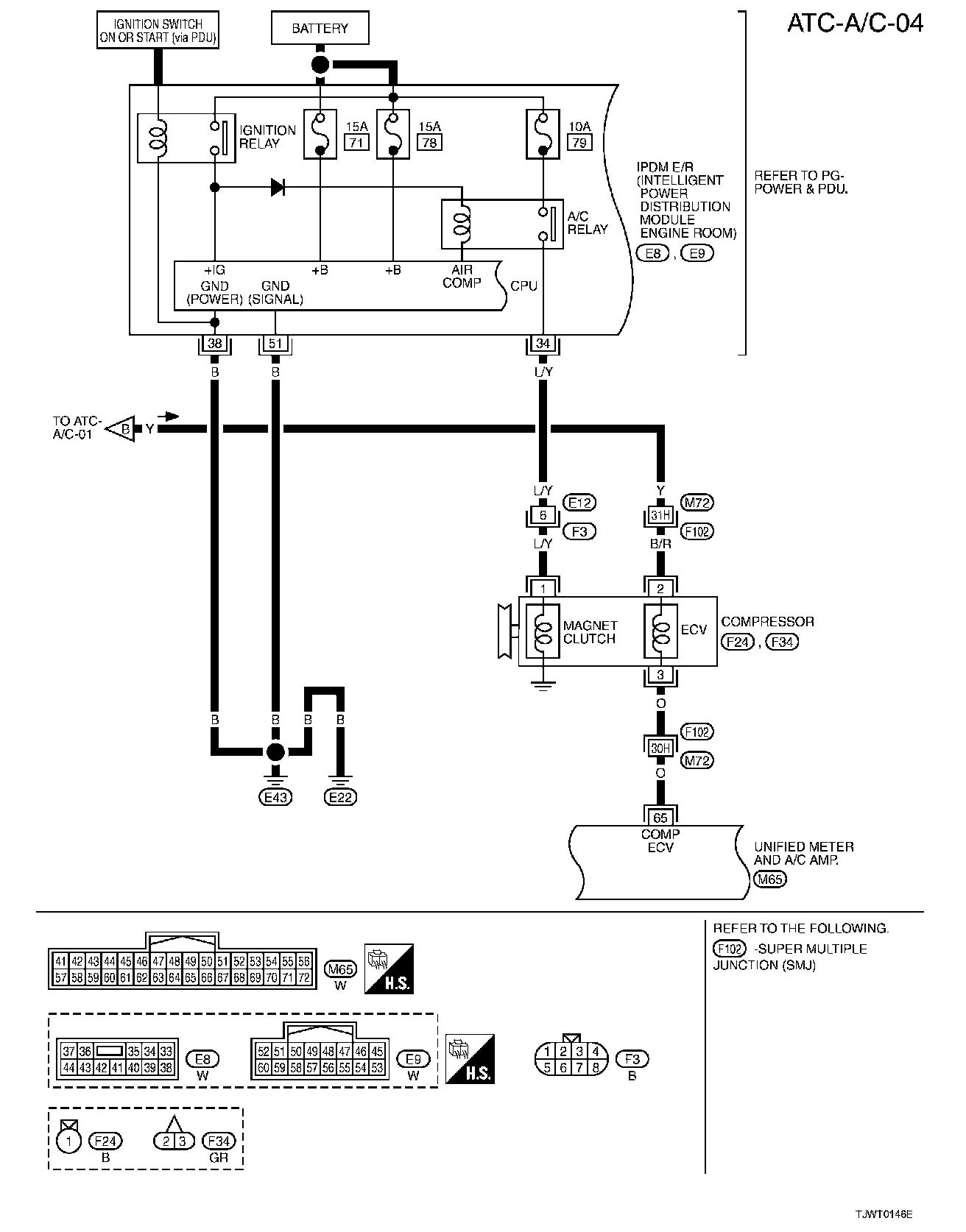

ATC-A/C-04:

ATC-A/C-05:

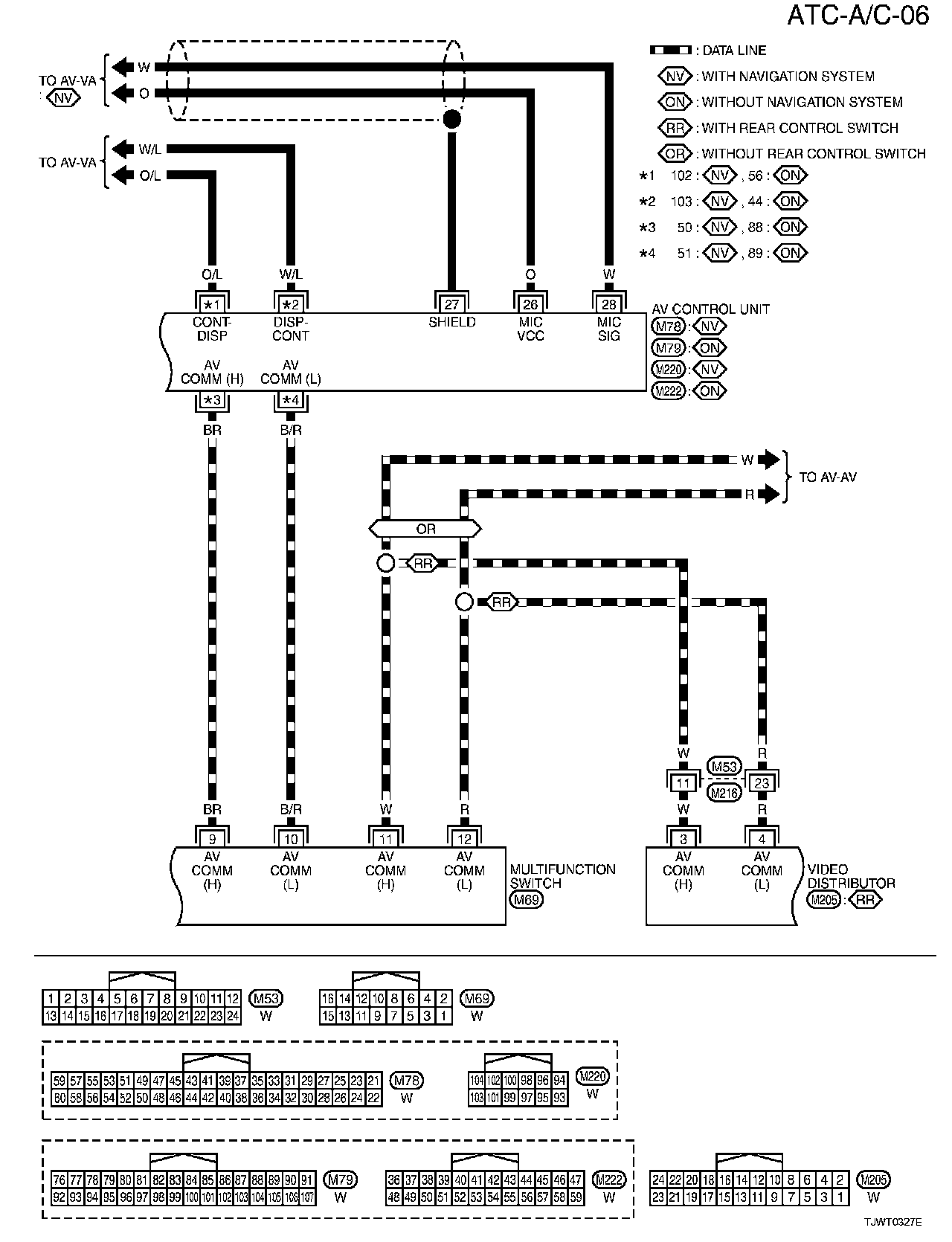

ATC-A/C-06:

ATC-A/C-07:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
