Cabin Air Filter / Purifier: Service and Repair

IN-CABIN MICROFILTER

Removal and Installation

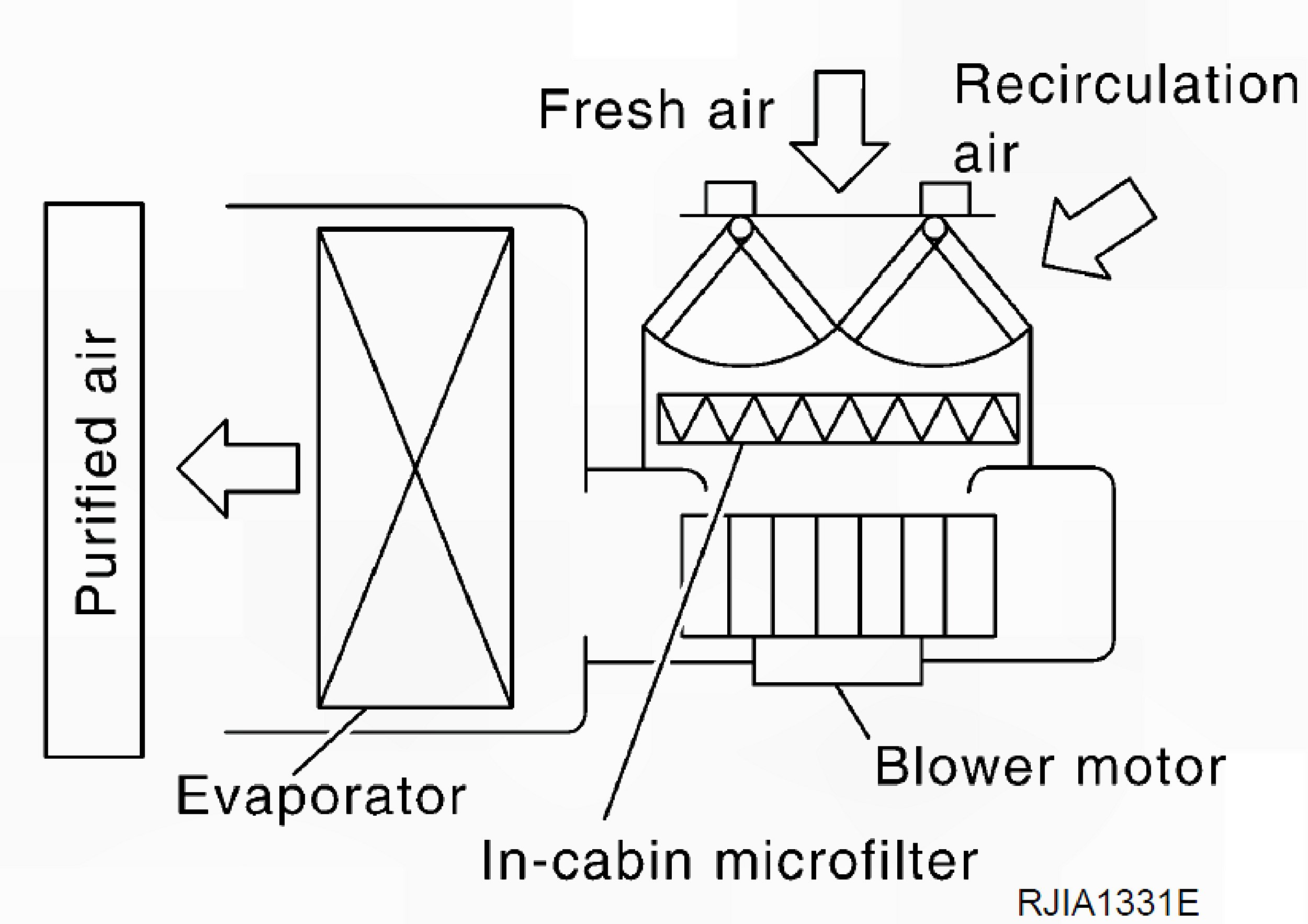

FUNCTION
Air inside passenger compartment is kept clean at either recirculation or fresh mode by installing in-cabin microfilter into blower unit





REPLACEMENT PROCEDURES
1. Remove glove box.

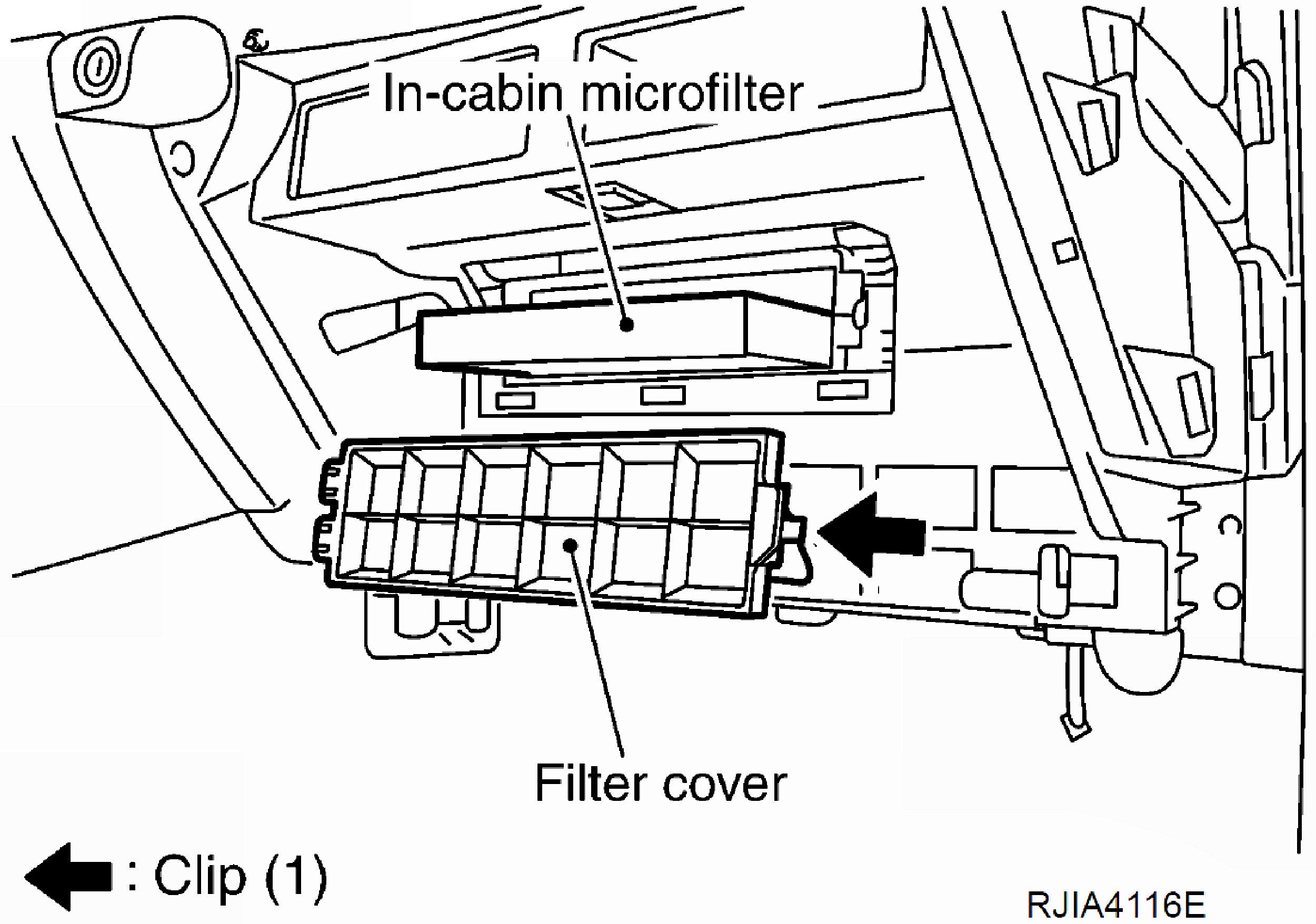

2. Remove filter cover, and then remove in-cabin microfilter.
3. Take out in-cabin microfilter from blower unit.
4 Replace with new one and reinstall on blower unit.
5. Reinstall glove box.
