Ambient Light Sensor: Service and Repair

Removal and Installation for Optical Sensor

REMOVAL

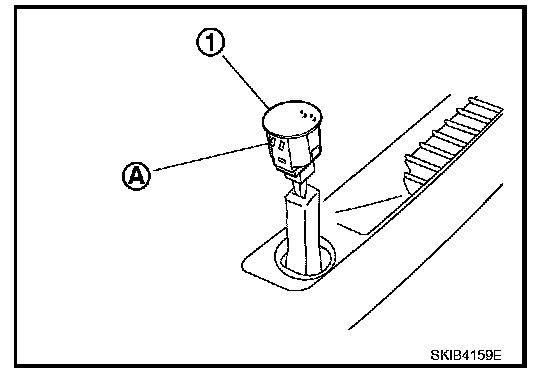

1. Disengage the tab (A) and disconnect connector.
2. Remove optical sensor (1).

INSTALLATION
Installation is the reverse order of removal.
