Electrical Diagrams

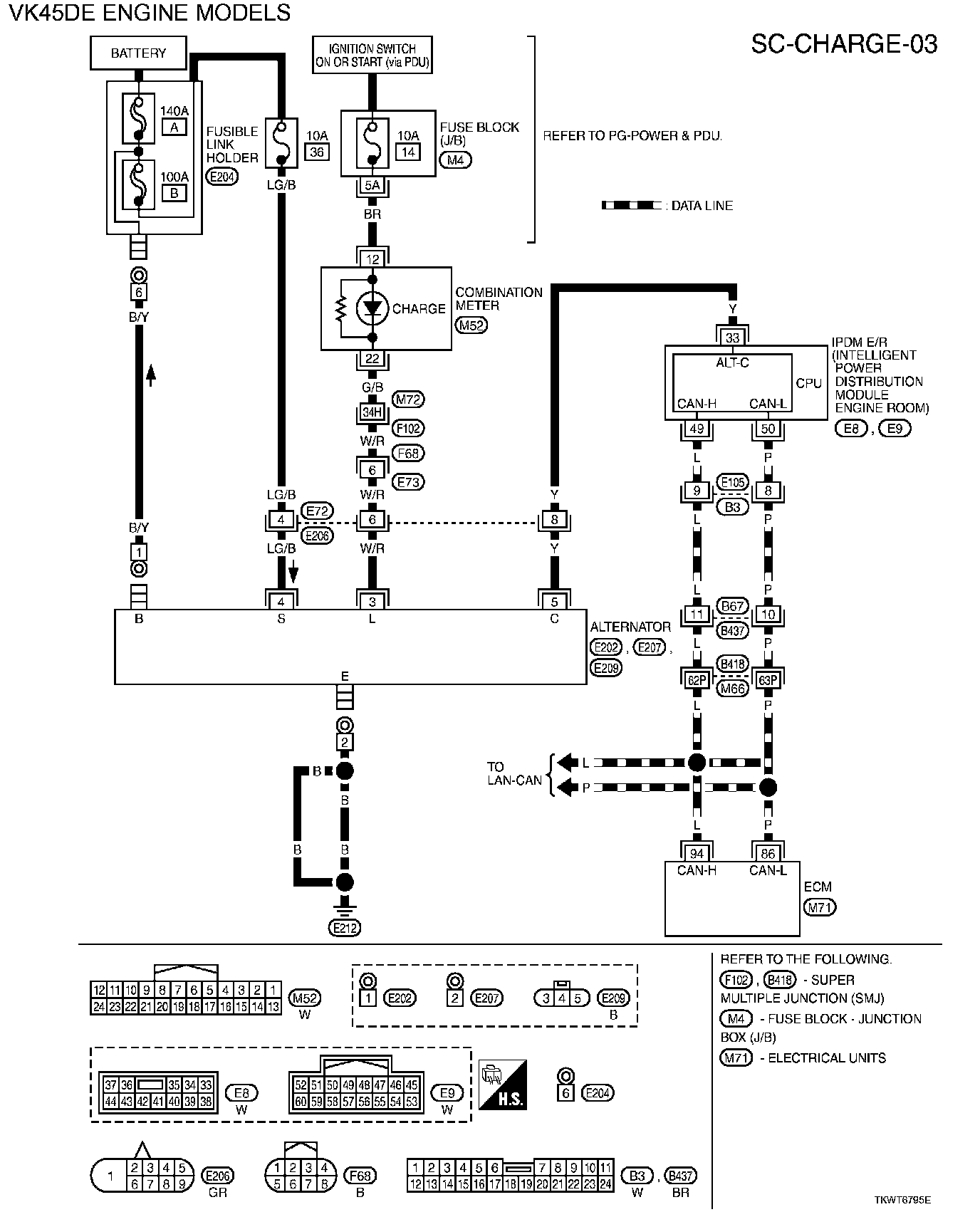

Wiring Diagram - CHARGE -

VK45DE ENGINE MODELS

SC-CHARGE-03:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
