Wiper Switch: Service and Repair

Removal and Installation of Front Wiper and Washer Switch

REMOVAL
1. Remove steering column cover.
2. Disconnect the wiper and washer switch connector.

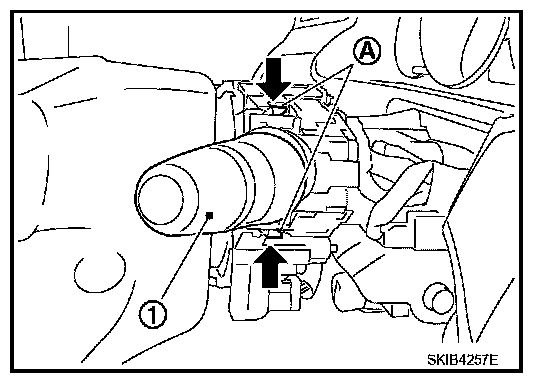

3. Pull wiper and washer switch (1) toward the passenger door while pressing pawls (A) in direction shown by the arrow in the figure, and remove it from the base.

INSTALLATION
Installation is the reverse order of removal.
