Home >> Infiniti >> 2008 >> M45x AWD V8-4.5L (VK45DE) >> Repair and Diagnosis >> Cruise Control >> Cruise Control Relay >> Testing and Inspection

Cruise Control Relay: Testing and Inspection

ICC Brake Hold Relay

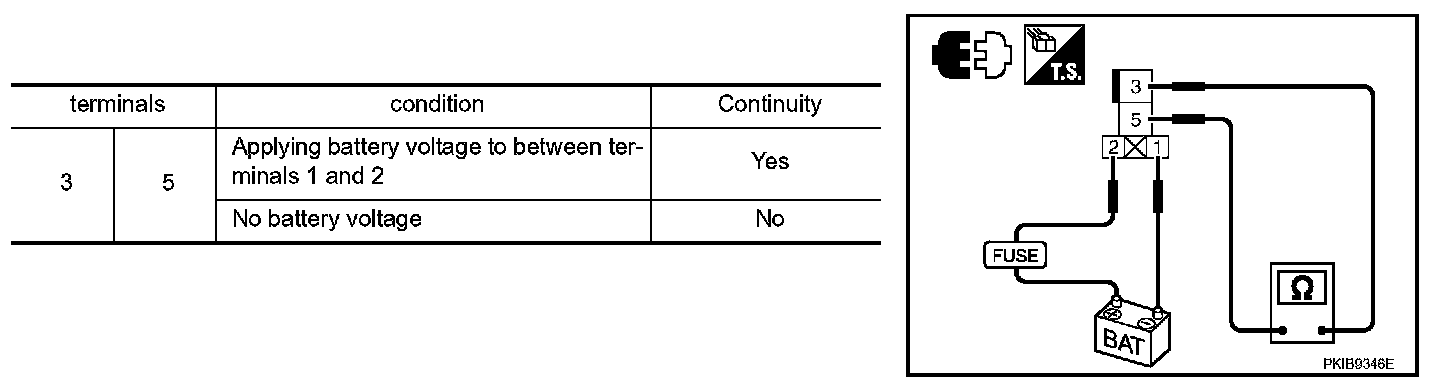

Check continuity between ICC brake hold relay terminals.
