Refrigerant Pressure Sensor / Switch: Service and Repair

Removal and Installation of Refrigerant Pressure Sensor

REMOVAL
1. Remove liquid tank.

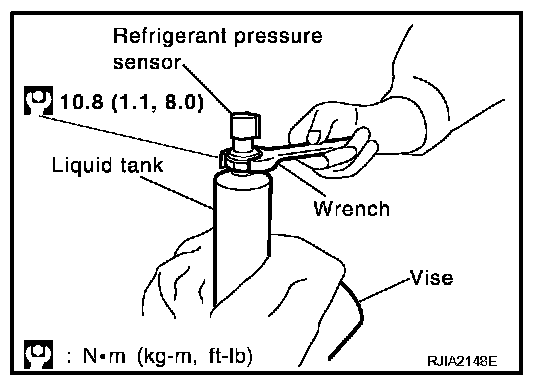

2. Using a vice, secure liquid tank, and remove refrigerant pressure sensor.

CAUTION: Be careful not to damage liquid tank.

INSTALLATION
Installation is basically the reverse order of removal.

CAUTION:
- Apply compressor oil to O-ring of refrigerant pressure sensor when installing it.
- When recharging refrigerant, check for leaks.
