Vanity Lamp: Service and Repair

Vanity Mirror Lamp

BULB REPLACEMENT

CAUTION: Disconnect the battery negative terminal or remove the fuse.

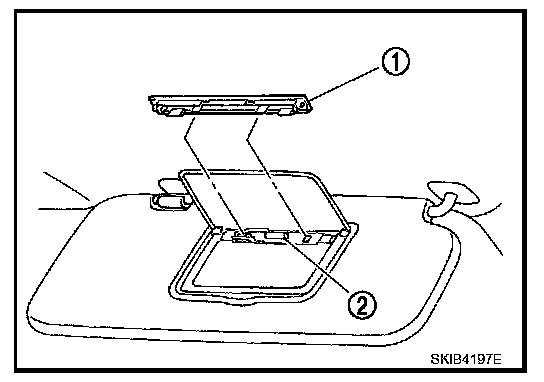

1. Insert a thin screwdriver in the lens end and remove lens (1).
2. Remove bulb (2).

Vanity mirror lamp : 12 V - 1.8 W
