Windshield Washer Reservoir: Service and Repair
Removal and Installation of Washer TankREMOVAL
1. Remove engine room cover (RH).

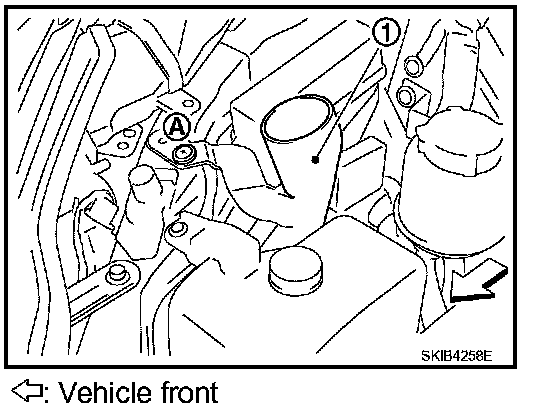

2. Remove clip (A) and pull washer tank inlet (1) out of washer tank.
3. Remove front bumper.
4. Disconnect washer pump connector and wash fluid level sensor connector.

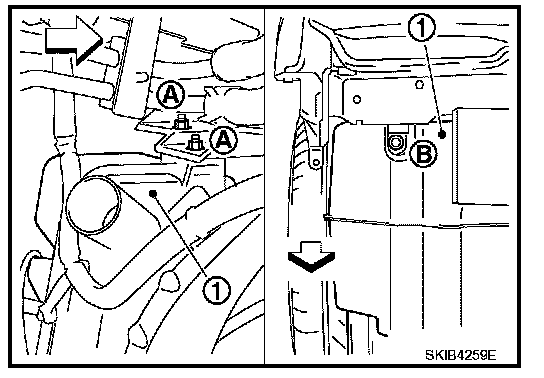

5. Remove washer tank mounting nuts (A) and remove bolt (B).
6. Remove washer tube, and remove washer tank (1) from vehicle.
INSTALLATION
Note the following, and installation is the reverse order of removal.
CAUTION: After installation, add water up to the upper level of washer tank inlet, and check for water leaks.
Washer tank mounting nuts torque: 4.5 N.m (0.46 kg-m, 40 in-lb)
Washer tank mounting bolt torque: 4.5 N.m (0.46 kg-m, 40 in-lb)
