Heater Core: Service and Repair

HEATER and COOLING UNIT ASSEMBLY


HEATER CORE : Removal and Installation


REMOVAL
1. Remove heater and cooling unit assembly. Service and Repair

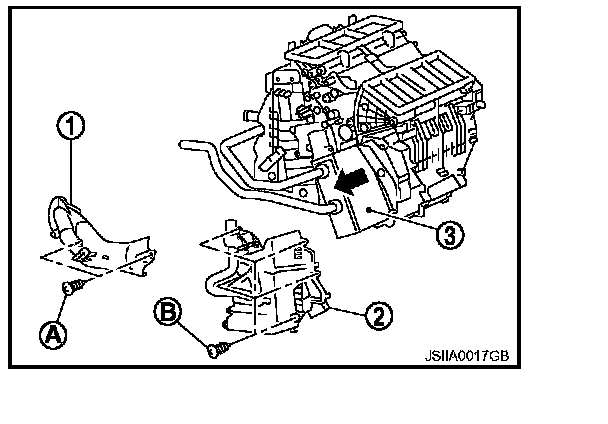

2. Remove mounting screws (A), and then remove heater pipe cover (1).
3. Remove mounting screws (B), and then remove foot duct (left)
(2).
4. Slide heater core (3) to leftward (as shown in the figure).

INSTALLATION
Installation is basically the reverse order of removal.

NOTE:
Refer to Refilling when filling radiator with engine coolant.
