Consult-III Functions (Intelligent Key)

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION


CONSULT-III Functions (INTELLIGENT KEY)

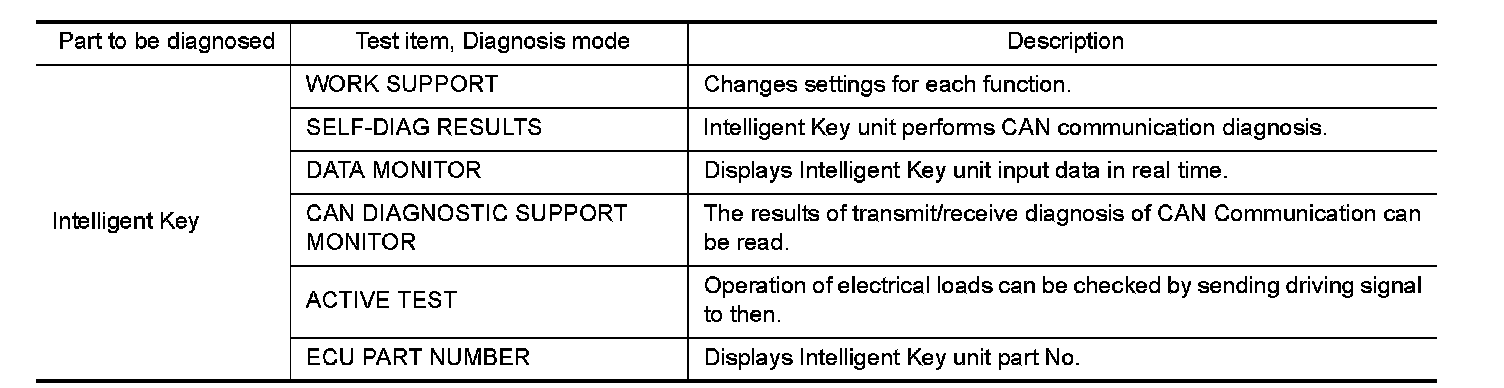

CONSULT-III can display each diagnostic item using the diagnostic test modes as shown below.

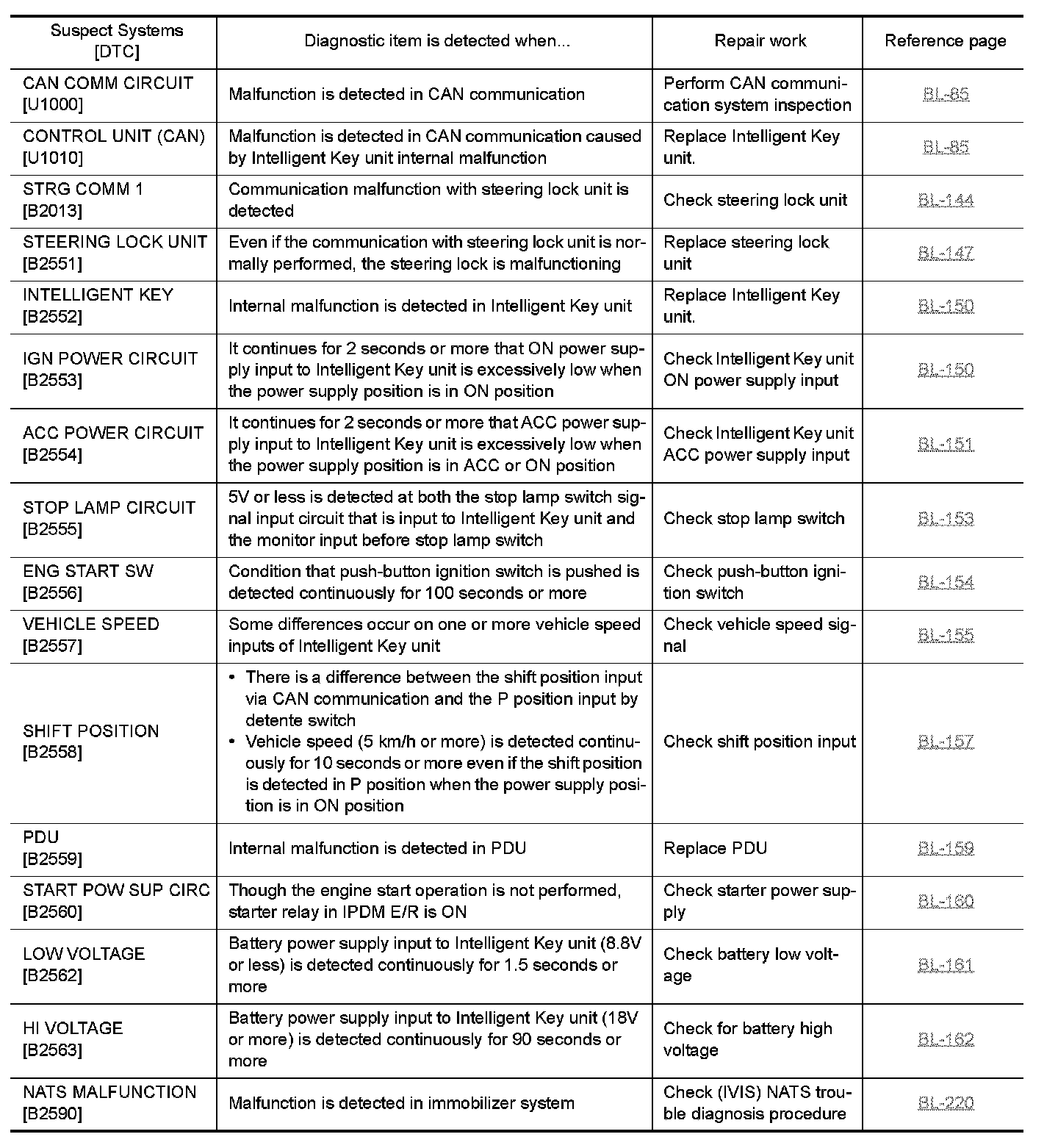

SELF-DIAGNOSTIC RESULTS

Self-Diagnostic Results:

DATA MONITOR

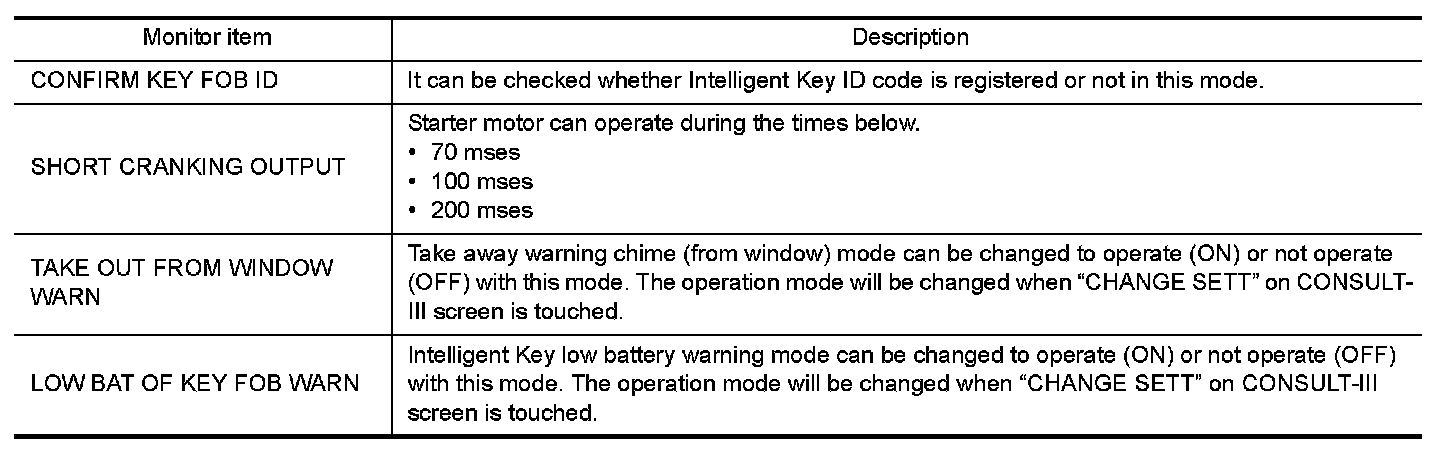

WORK SUPPORT

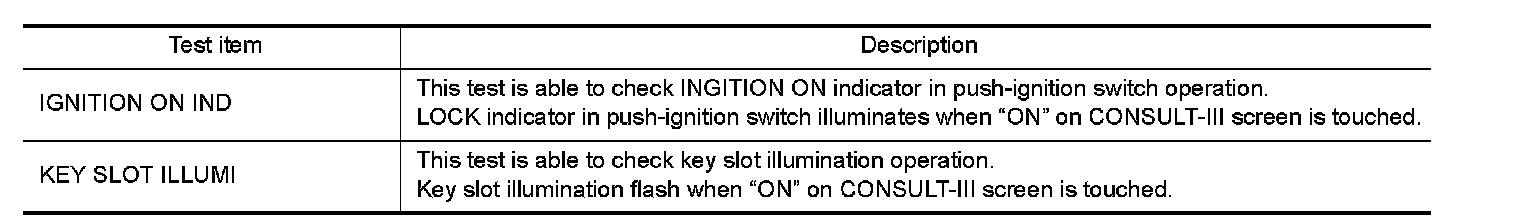

ACTIVE TEST
