Pinout Values and Diagnostic Parameters
TROUBLE DIAGNOSIS

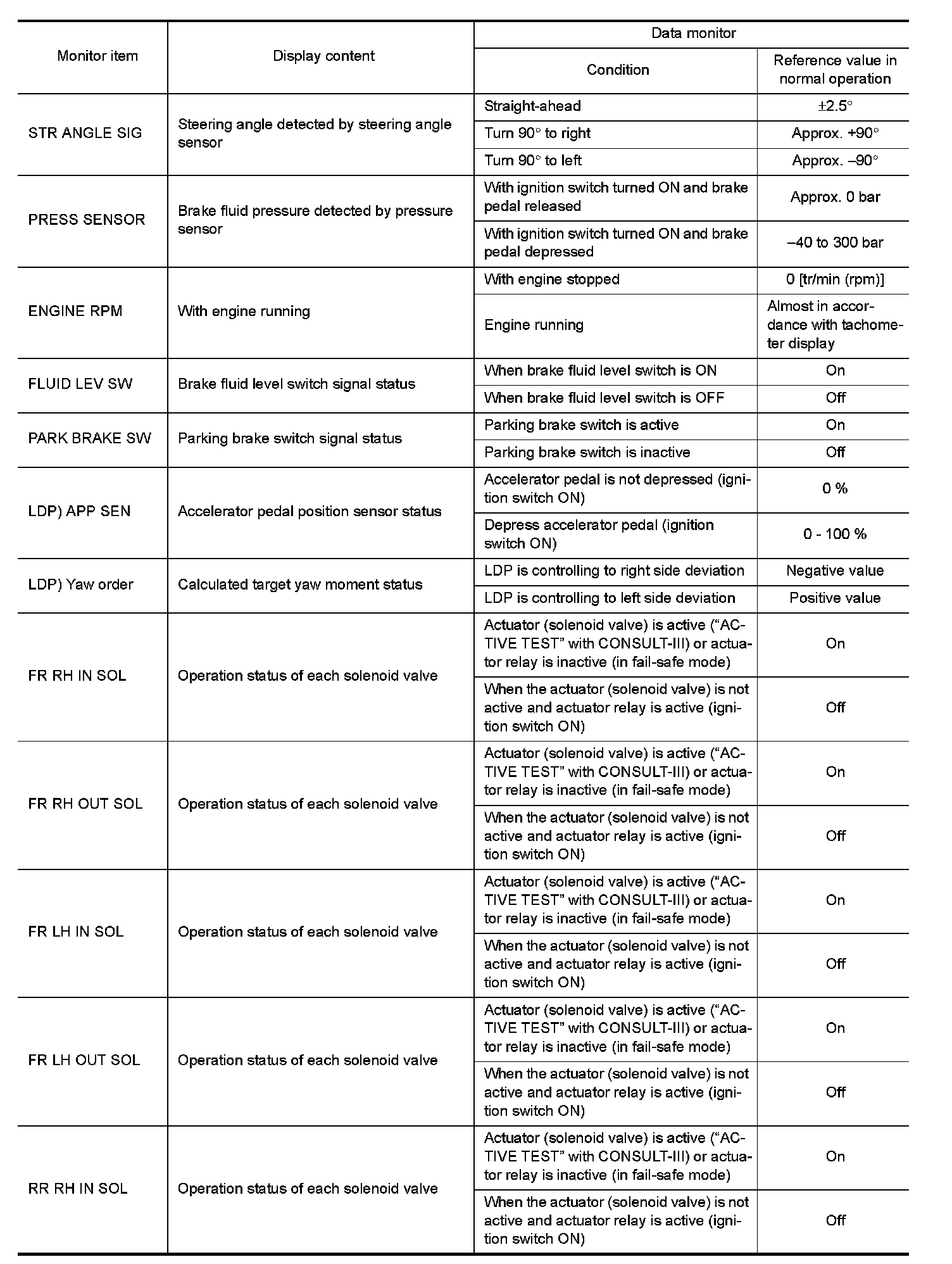

Reference Value
VALUES ON THE DIAGNOSIS TOOL
CAUTION:
The display shows the control unit calculation data, so a normal value might be displayed even in the event that the output circuit (harness) is open or short-circuited.
