ICC Sensor Integrated Unit

REMOVAL AND INSTALLATION


ICC Sensor Integrated Unit







REMOVAL
1. Remove the front bumper fascia. Refer to Standard Type.
2. Disconnect ICC sensor integrated unit connector.
3. Remove mounting bolts from ICC sensor integrated unit.

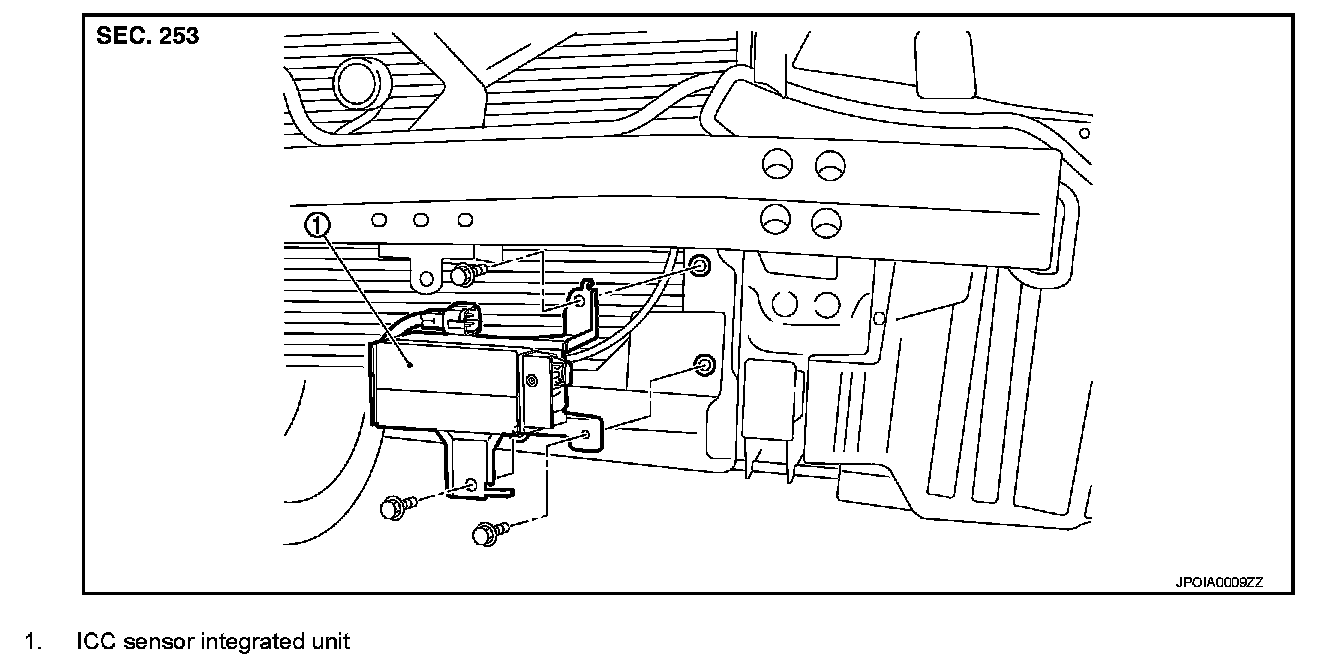

4. Remove ICC sensor integrated unit (1).

INSTALLATION
Installation is the reverse order of removal.

CAUTION:
Adjust the laser beam aiming every time the ICC sensor integrated unit is removed or installed. Refer to Outline Preparation Outline of Adjustment Procedure Setting the ICC Target Board.
