LDW and LDP SYSTEM SYMPTOMS
Symptom Table
CAUTION:
Perform the self-diagnosis with CONSULT-III before the symptom diagnosis. Perform the trouble diagnosis if any DTC is detected.

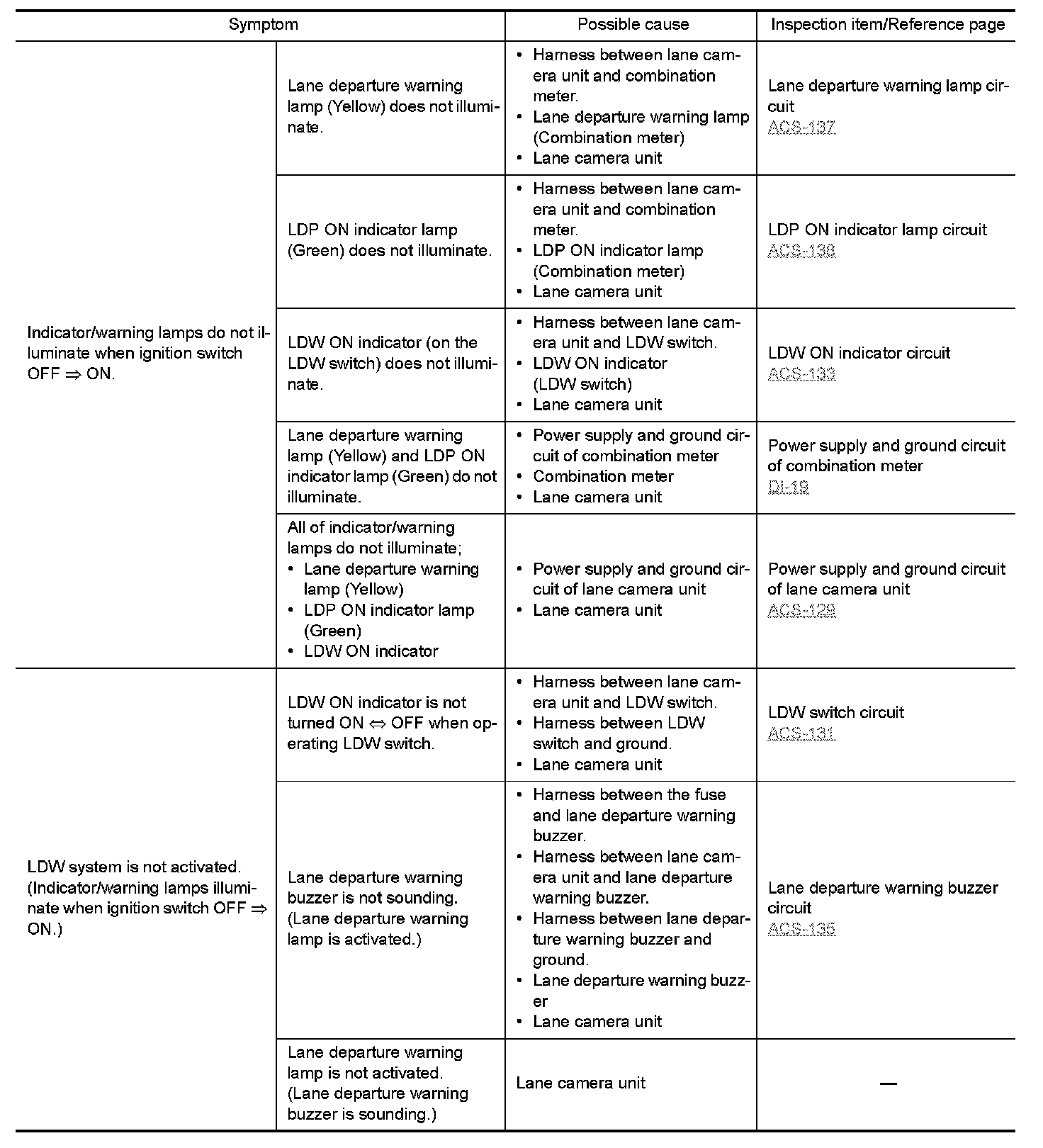

Symptom Chart (Part 1):
Symptom Chart (Part 2):
