Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2009
>>
M35 V6-3.5L (VQ35HR)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems
Schematic

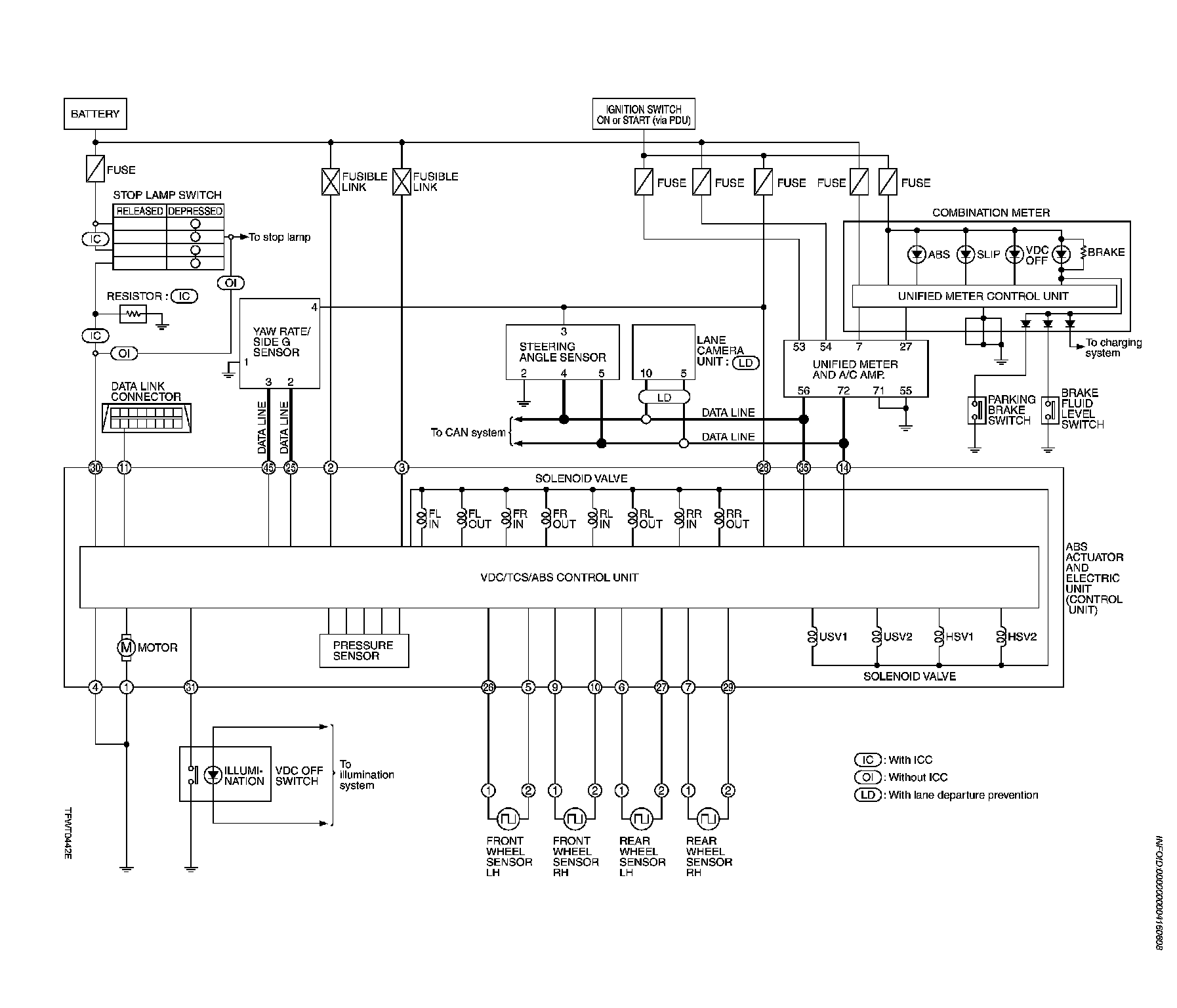

Wiring Diagram - VDC -
