Control Module HVAC: Service and Repair

AUTO AMP.


Removal and Installation of Unified Meter and A/C Amp.


REMOVAL
1. Remove AV control unit. Refer to Without Mobile Entertainment System (WITHOUT MOBILE ENTERTAINMENT SYSTEM) or With Mobile Entertainment System (WITH MOBILE ENTERTAINMENT SYSTEM).

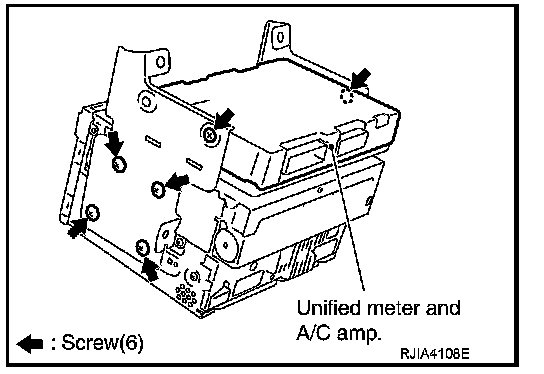

2. Remove mounting screws, and then remove unified meter and
A/C amp.

INSTALLATION
Installation is basically the reverse order of removal.
