AIR CONDITIONER CONTROL


Control Operation


DISPLAY SCREEN

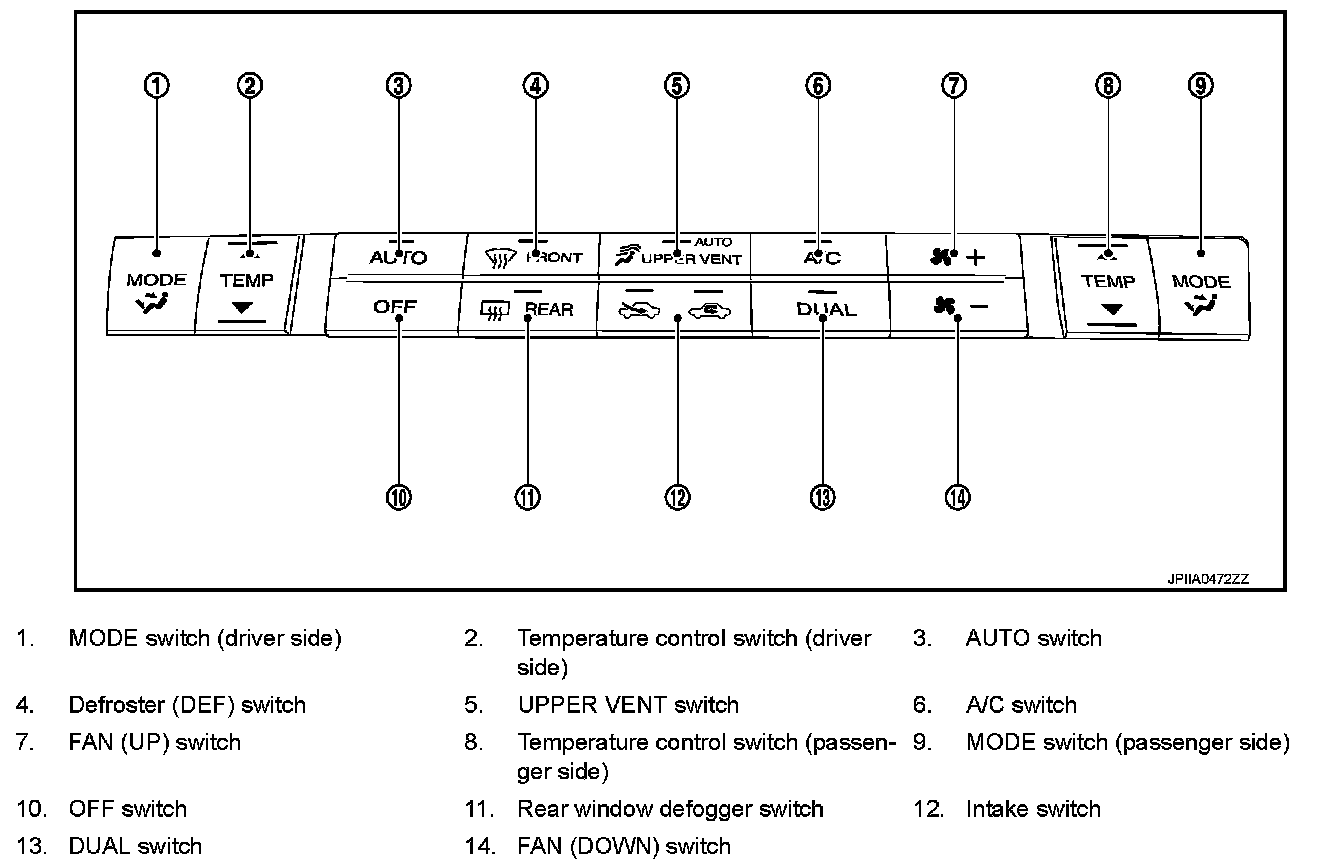

MULTIFUNCTION SWITCH

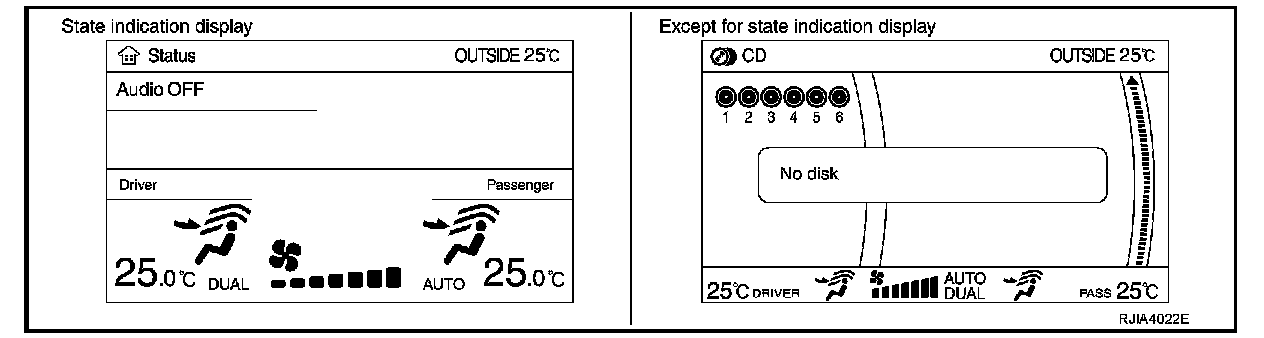

DISPLAY SCREEN
The operation status of the system is displayed on the screen.

MODE SWITCH (DRIVER SIDE)
- Controls the air discharge outlets.
- When the DUAL switch indicator lamp turns OFF, the driver side and passenger side outlets are switched together.
- When the DUAL switch indicator lamp turns ON, only the driver side outlet is switched.

MODE SWITCH (PASSENGER SIDE)
When the MODE switch (passenger side) is pressed, the DUAL switch indicator lamp turns ON, and only the passenger side outlet is switched.

TEMPERATURE CONTROL SWITCH (POTENTIO TEMPERATURE CONTROL) (DRIVER SIDE)
The set temperature is Increased or decreased with this switch.

TEMPERATURE CONTROL SWITCH (POTENTIO TEMPERATURE CONTROL) (PASSENGER

SIDE)
- The set temperature is Increased or decreased with this switch.
- When the temperature switch is pressed, the DUAL switch indicator lamp will automatically turns ON.

AUTO SWITCH
- The compressor, intake doors, air mix doors, mode doors and fan speed are automatically controlled so that the in-vehicle temperature will reach, and be maintained at the set temperature selected by the operator.
- When pressing AUTO switch, air inlet, air outlet, fan speed, and discharge air temperature are automatically controlled.

DEFROSTER (DEF) SWITCH
Mode doors are set to the defrost position with this switch. Also, intake doors are set to the outside air position, and compressor turns ON.

UPPER VENT SWITCH
- When UPPER VENT switch is ON, UPPER VENT switch indicator lamp turns ON, and upper ventilator door is automatically controlled.

NOTE:
The upper ventilator door operation depend on the sunload.
- When DEFROSTER (DEF) switch is ON, upper ventilator door is shut.
- When MODE position (driver side) is FOOT or D/F, upper ventilation door is shut.
- When UPPER VENT switch is OFF, UPPER VENT switch indicator lamp turns OFF, and upper ventilator door is shut.

A/C SWITCH
Compressor is ON or OFF with this switch.
(Pressing the A/C switch when the A/C switch is ON will turn OFF the A/C switch and compressor.)

FAN SWITCHES
The fan speed is manually controlled with this switch. Seven speeds are available for manual control (as shown on the display screen).

OFF SWITCH
Compressor and blower are OFF, air inlet is set to FRE, and mode position is set to foot position.

REAR WINDOW DEFOGGER SWITCH
When indicator lamp turns ON, rear window is defogged.

INTAKE SWITCH
- When intake switch is ON, FRE indicator lamp turns ON, and air inlet is fixed to FRE.
- When press intake switch again, REC indicator lamp turns ON, and air inlet is fixed to REC.
- When intake switch is pressed for approximately 1.5 seconds or longer, FRE and REC indicator lamps blink twice. Then, automatic control mode is entered. Inlet status is displayed by indicator lamp even during automatic controlled.
- When FRE indicator lamp turned ON, shifting mode position to D/F, pressing DEF switch or when compressor is turned from ON to OFF, intake switch is automatically turned OFF (fixed to FRE mode). REC mode can be re-entered by pressing intake switch again, and then compressor is turned ON. (Except D/F or DEF position)

DUAL SWITCH
- When the DUAL switch indicator lamp turns ON, the driver side and passenger side temperature can each be set independently.
- When the DUAL switch indicator lamp turns OFF, the driver side outlet and setting temperature is applied to both sides.
