Air Conditioner Control
Air Conditioner Control
TROUBLE DIAGNOSIS
Component Parts and Harness Connector Location

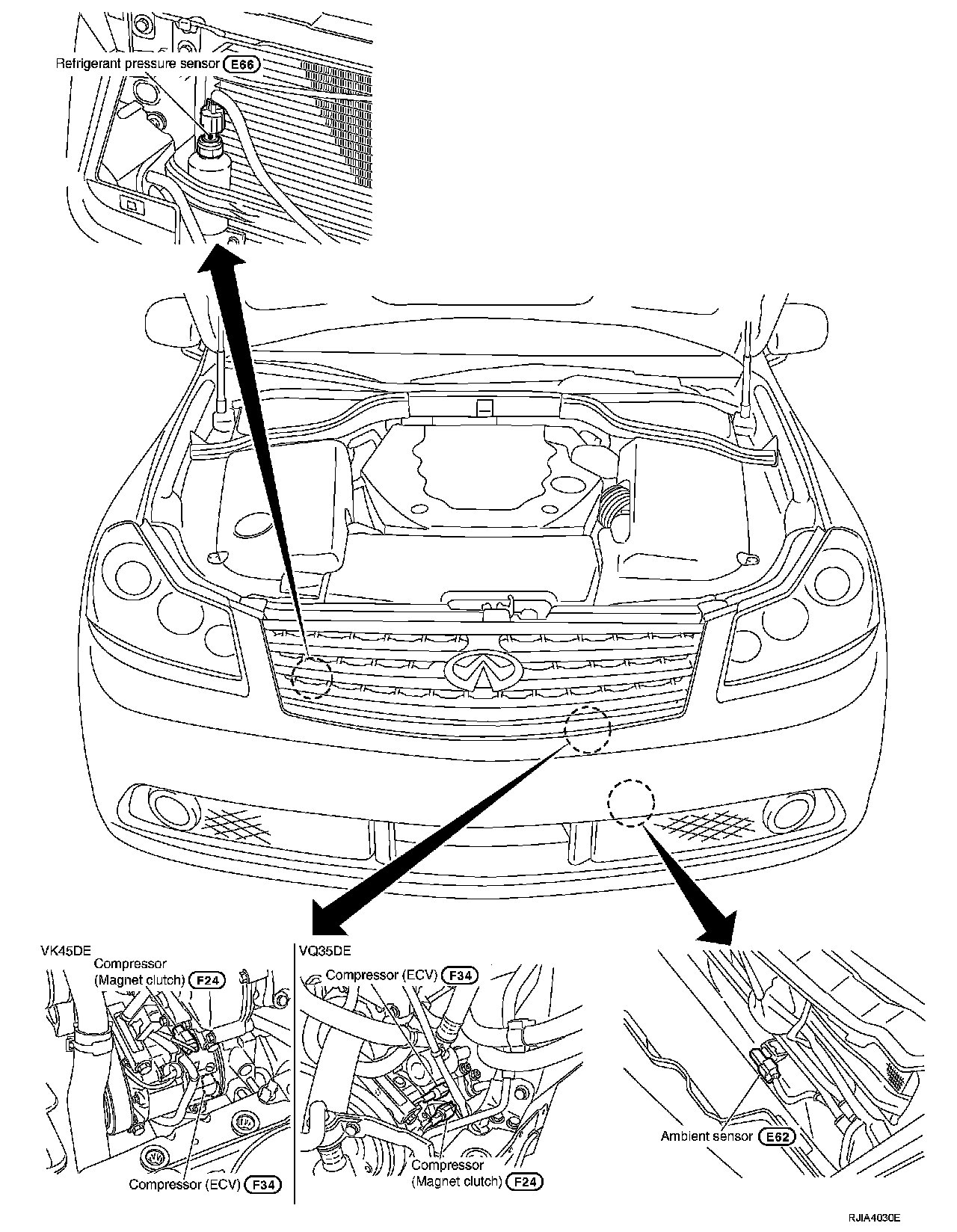

ENGINE COMPARTMENT

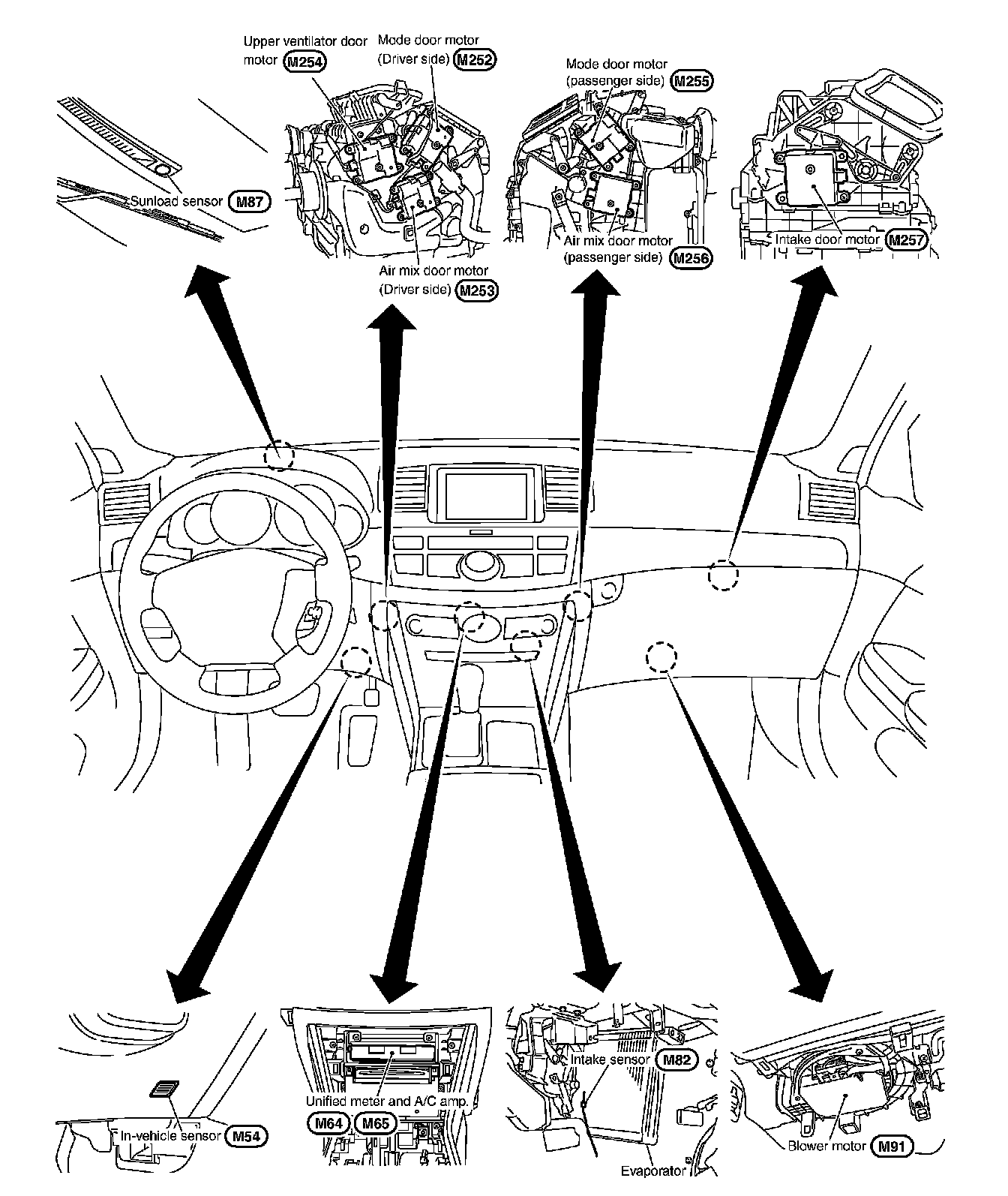

PASSENGER COMPARTMENT
