Clock: Service and Repair

CLOCK


Removal and Installation of Clock


REMOVAL

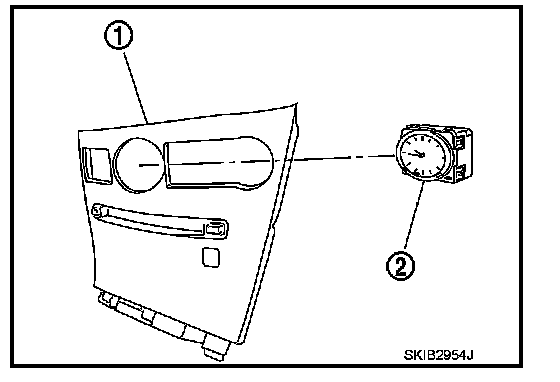

1. Remove cluster lid C (1). Refer to Cluster Lid C.





2. Remove preset switch. Refer to Without Mobile Entertainment System (Without mobile entertainment system) or With Mobile Entertainment System (With mobile entertainment system).
3. Disengage tabs, and remove clock (2) from cluster lid C.

INSTALLATION
Installation is the reverse order of removal.
