Cluster Lid A

INSTRUMENT PANEL ASSEMBLY


CLUSTER LID A : Removal and Installation


CAUTION:
When removing, always use a remover tool that is made of plastic.

REMOVAL

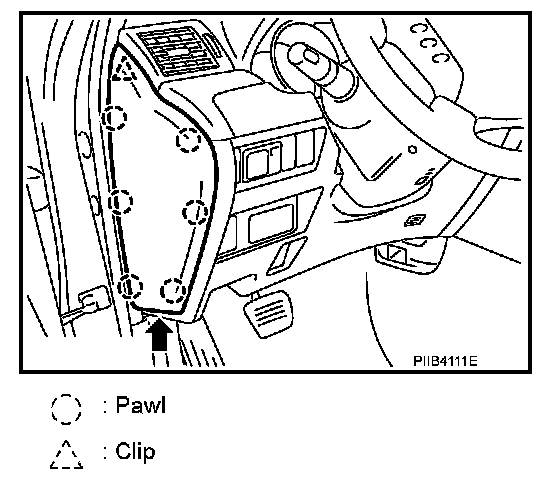

1. Remove instrument side finisher LH.





- Insert a remover into lower space.
- Pull the instrument side finisher LH crosswise.





2. Remove instrument driver lower panel.
- Remove hood opener mounting bolt. Refer to Service and Repair.
- Pull back.
- Disconnect harness connectors.

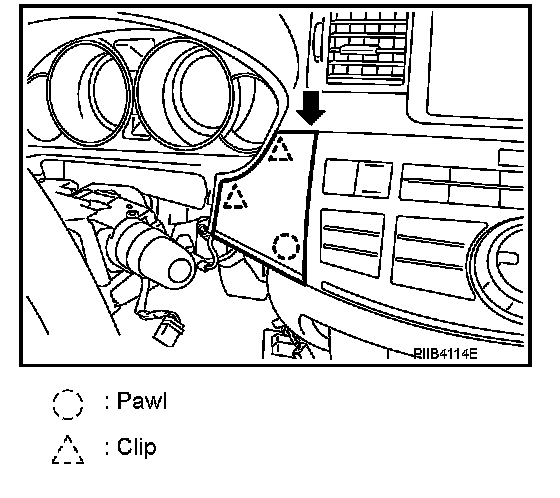

3. Remove instrument finisher A.
- Insert a remover into upper space.
- Pull back instrument finisher A.





4. Remove instrument finisher C.
- Insert a remover into upper space.
- Pull back instrument finisher C.





5. Remove cluster lid A.
- Pull back.

INSTALLATION
Install in the reverse order of removal.
