Schematic

UNIFIED METER AND A/C AMP


Schematic

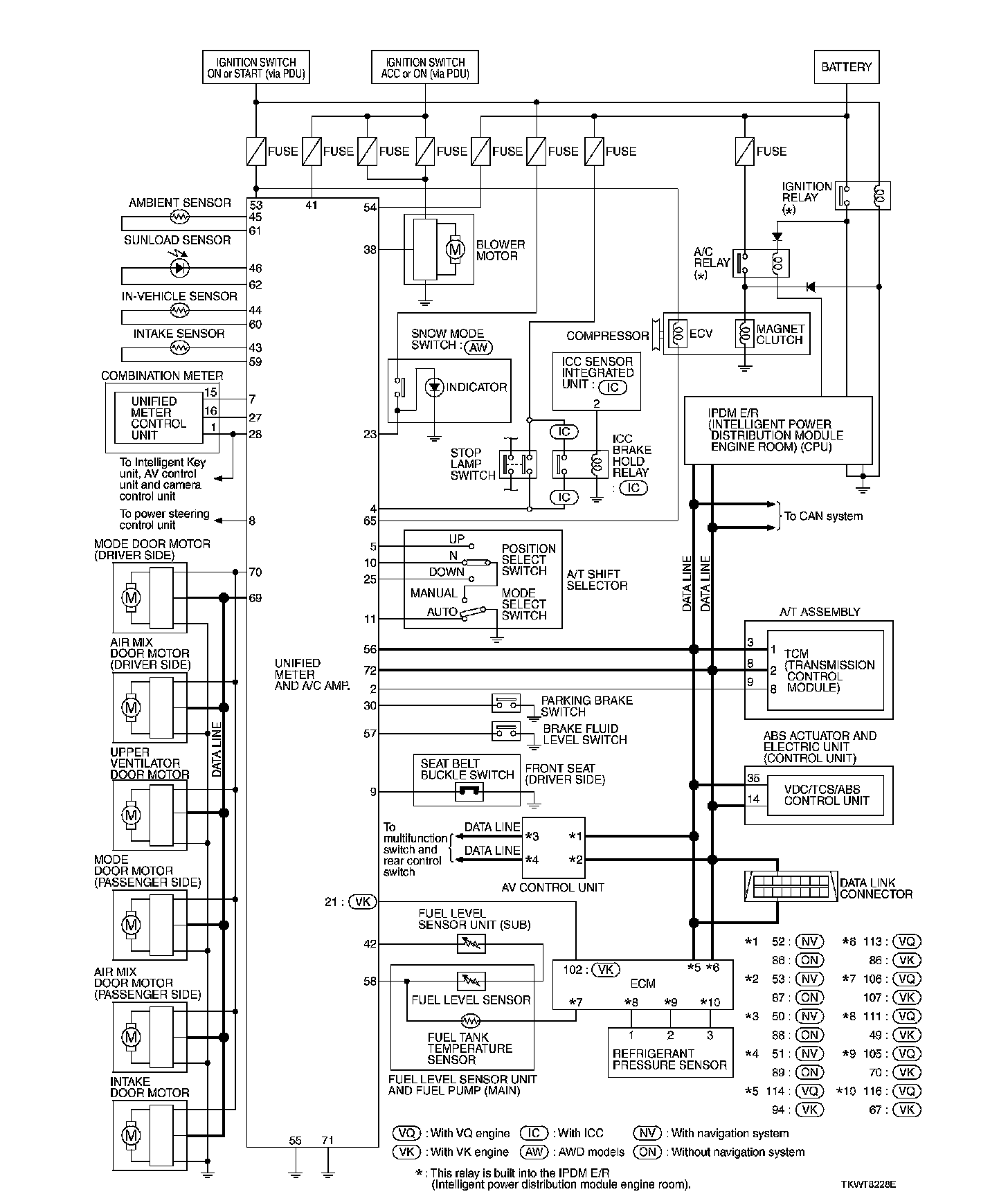

5A/T MODELS






NOTE:
For the further details, refer to descriptions on each system.

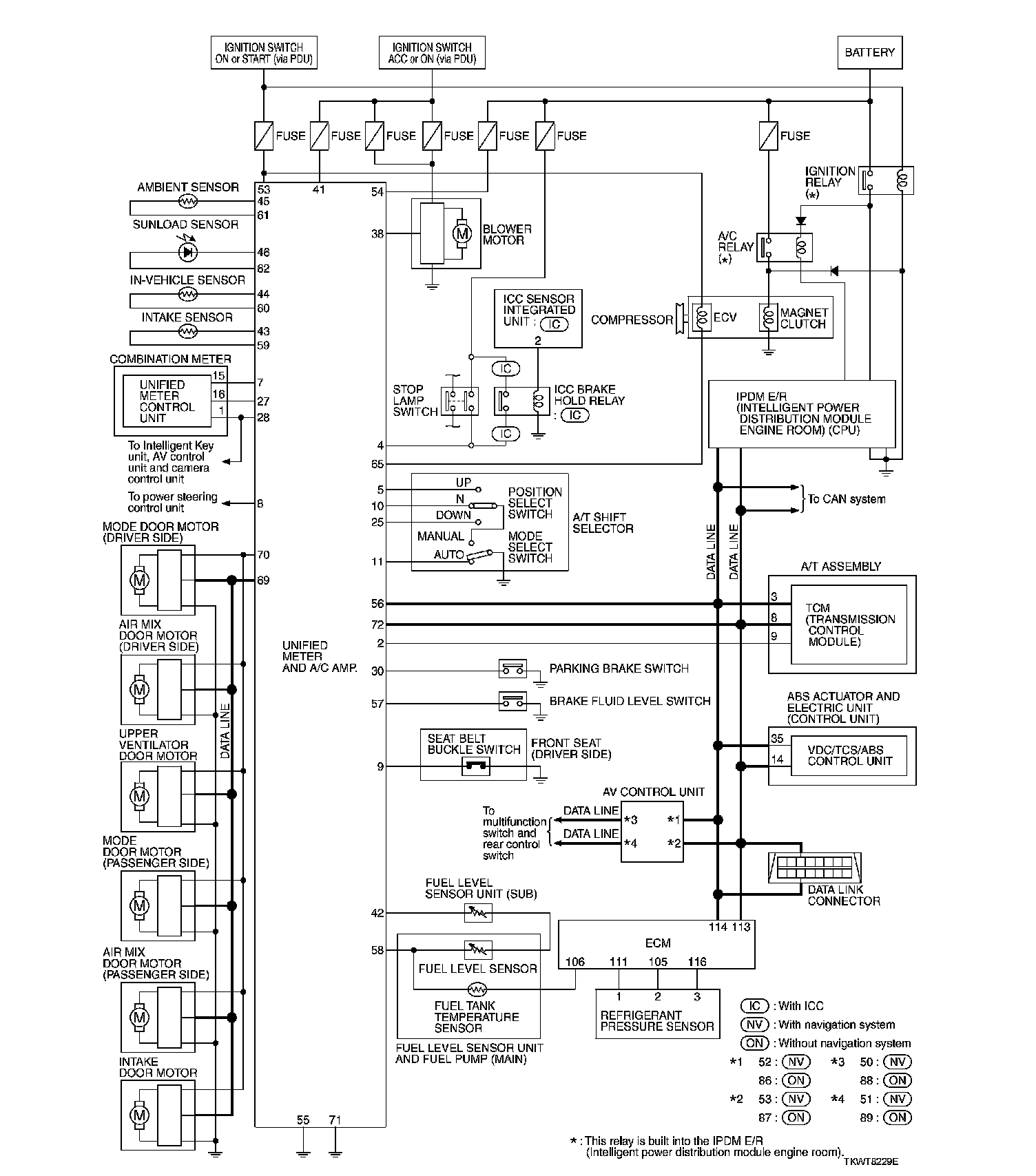

7A/T MODELS






NOTE:
For the further details, refer to descriptions on each system.
