Trunk Room Lamp (Upper/Lower)

INTERIOR ROOM LAMP


Trunk Room Lamp (Upper/Lower)


BULB REPLACEMENT

CAUTION:
Disconnect the battery negative terminal or remove the fuse.

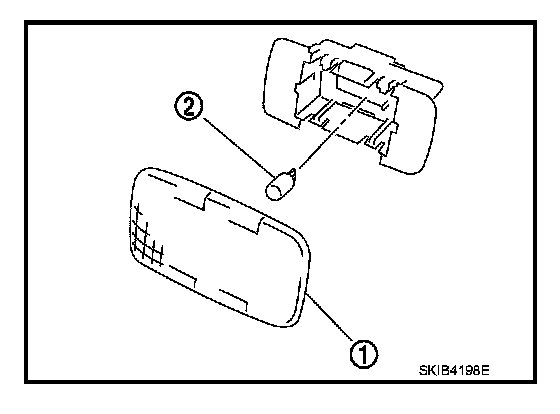

1. Insert a screwdriver or similar tool and remove lens (1).
2. Remove bulb (2).

Trunk room lamp (upper/lower) : 12V - 5W


REMOVAL AND INSTALLATION

Removal

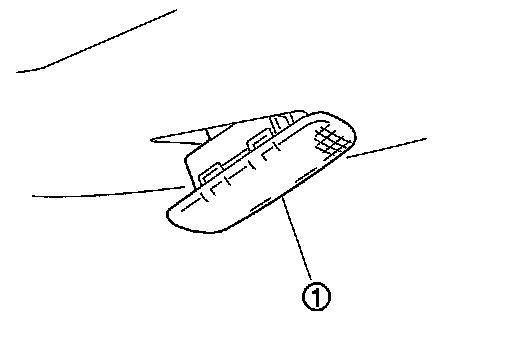

1. Insert a screwdriver or similar tool and remove trunk room lamp





(1).
2. Disconnect connector.

Installation
Installation is the reverse order of removal.
