Component Function Check

FUEL PUMP CONTROL MODULE


Component Function Check

1.CHECK FUEL PUMP CONTROL MODULE (FPCM) FUNCTION
With CONSULT-III
1. Turn ignition switch ON.
2. Select "FPCM" in "DATA MONITOR" mode with CONSULT-III.
3. Check "FPCM" indication under the following conditions.





Without CONSULT-III
1. Turn ignition switch ON.

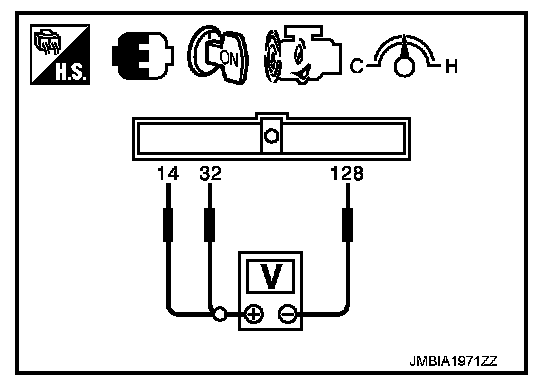

2. Check the voltage between ECM harness connector terminal as per the following.





Is the inspection result normal?
YES - INSPECTION END
NO - Go to Diagnosis Procedure.
