Ambient Light Sensor: Locations





AUTO LIGHT SYSTEM

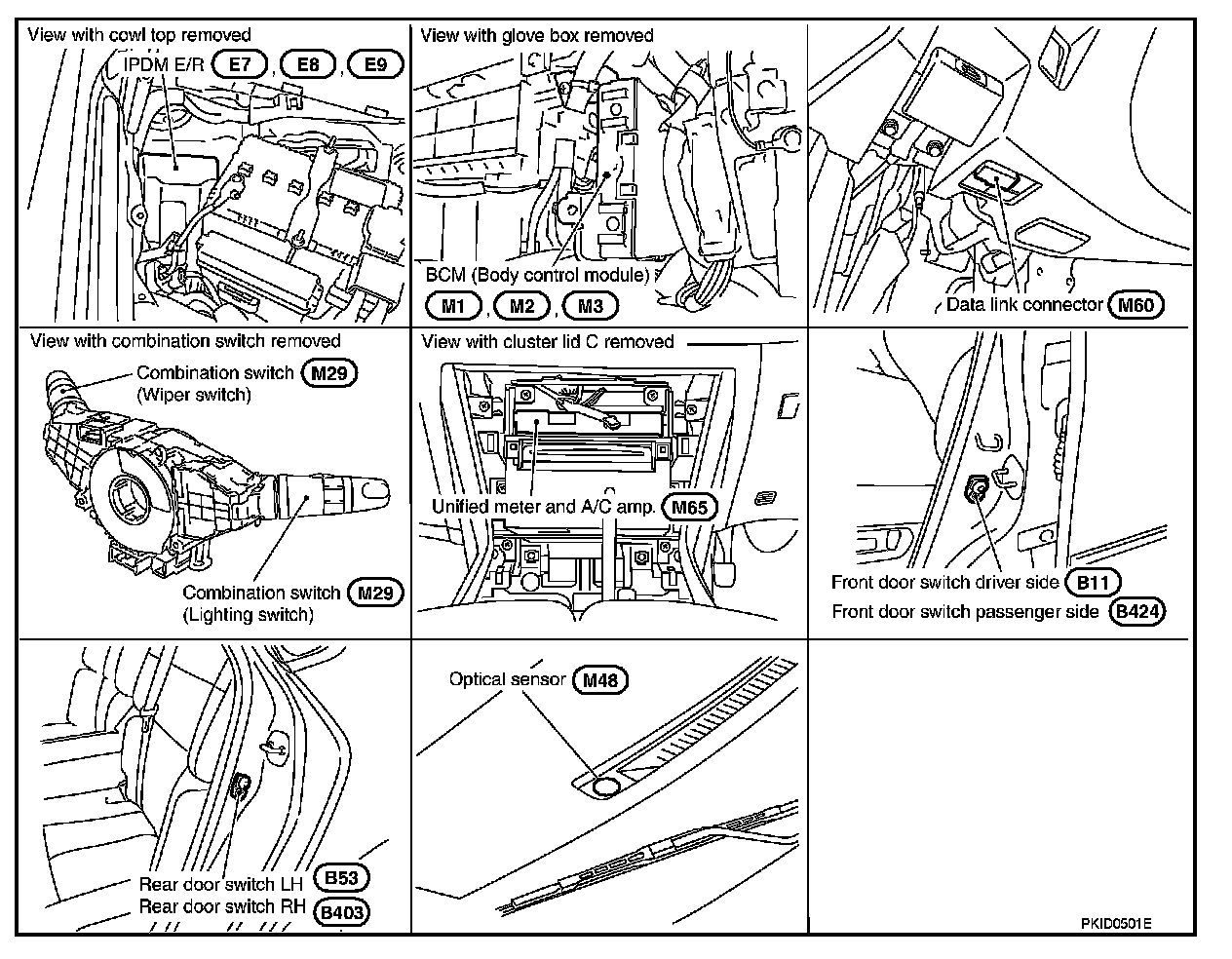

Component Parts and Harness Connector Location
