VDC/TCS/ABS

STEERING ANGLE SENSOR


Removal and Installation


REMOVAL
1. Remove spiral cable assembly. Refer to Service and Repair.

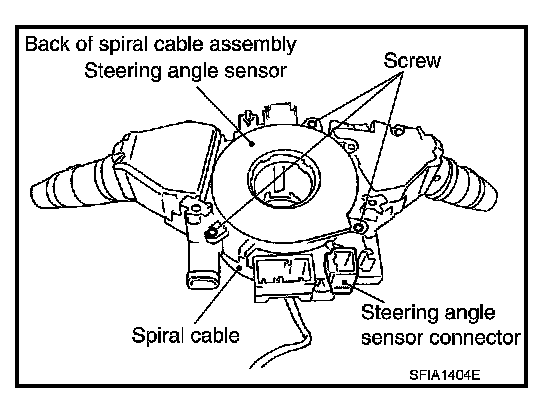

2. Remove steering angle sensor from spiral cable assembly.

INSTALLATION
Installation is the reverse order of removal.

CAUTION:
After work, make sure to adjust neutral position of steering angle sensor. Refer to Testing and Inspection.
