Axle Shaft Assembly





SERVICE DATA AND SPECIFICATIONS (SDS)


Drive Shaft

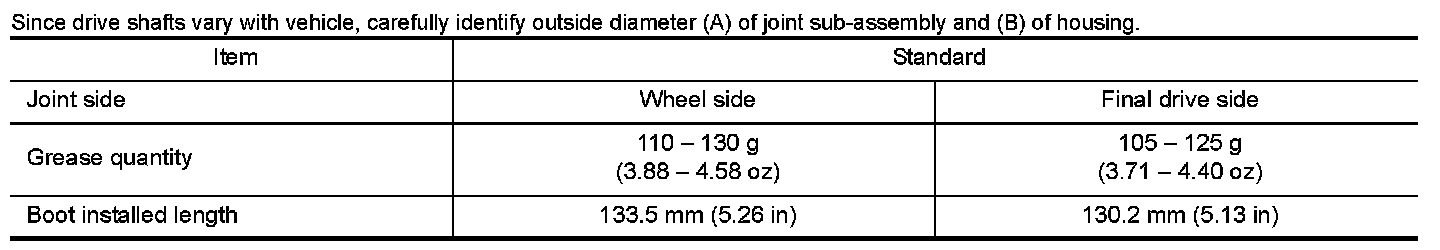

VK45DE model

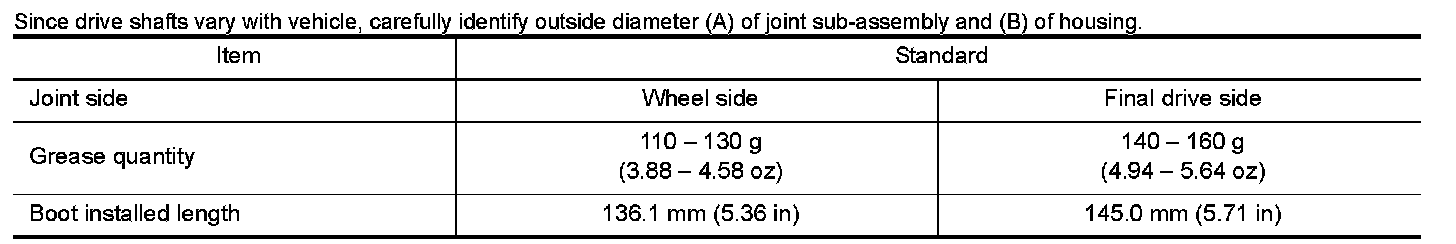

VQ35HR model
