Front Wiper Does Not Return to Stop Position When Front Wiper Motor Operates at LOW Speed

FRONT WIPER AND WASHER SYSTEM


Front Wiper Does Not Return to Stop Position When Front Wiper Motor Operates at Low Speed


CAUTION:
- When auto stop signal has not varied for 10 seconds or longer while IPDM E/R is operating front wipers, IPDM E/R considers that front wipers are locked, and stops wiper output. That causes this symptom.
- This status can be checked by "DATA MONITOR" of "IPDM E/R" on which "WIPER PROTECTION" item shows "BLOCK".
1.CHECK FRONT WIPER STOP SIGNAL
With CONSULT-III
1. Select "WIP AUTO STOP" of IPDM E/R data monitor item.
2. Check that "WIP AUTO STOP" turns "ACT P" - "STOP P" linked with wiper LO operation.
Without CONSULT-III
GO TO 2.
OK or NG
OK - Replace IPDM E/R. Refer to Service and Repair.
NG - GO TO 2.
2.CHECK IPDM E/R

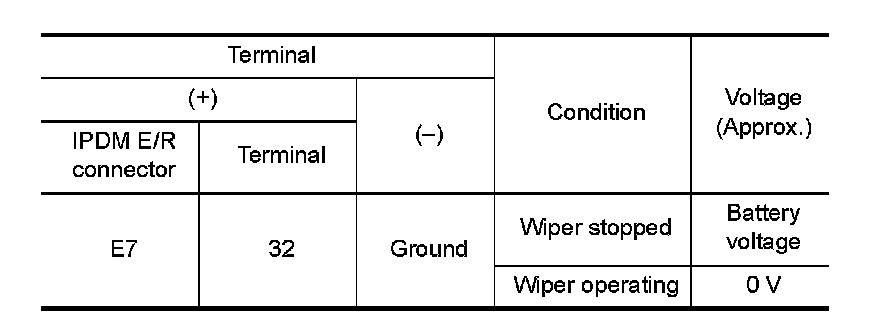

Check voltage between IPDM E/R harness connector and ground while front wiper motor is stopped and while front wiper LO is operating.





OK or NG
OK - Replace IPDM E/R. Refer to Service and Repair.
NG - GO TO 3.
3.CHECK CIRCUIT BETWEEN FRONT WIPER MOTOR AND GROUND
1. Turn ignition switch OFF.
2. Disconnect front wiper motor connector.





3. Check continuity between front wiper motor harness connector and ground.





OK or NG
OK - Replace front wiper motor. Refer to Service and Repair.
NG - Repair harness or connector.
