Windshield Washer Pump: Service and Repair

FRONT WIPER AND WASHER SYSTEM


Removal and Installation of Washer Pump

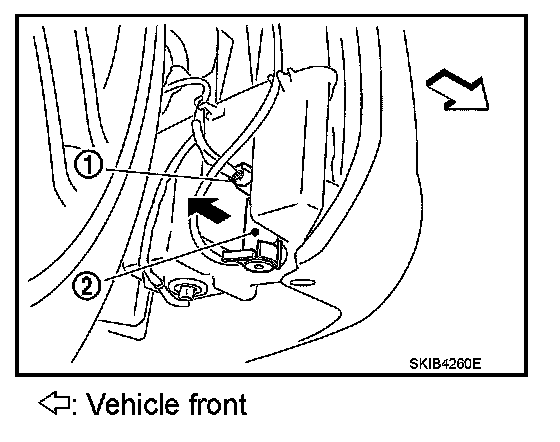

: Vehicle front

REMOVAL
1. Remove fender protector (front) RH. Refer to Fender Protector Fender Protector.





2. Disconnect washer pump connector (1) and remove washer tube.
3. Pull out washer pump (2) in direction shown by the arrow in the figure. Remove washer pump from washer tank.

INSTALLATION
Note the following, and installation is the reverse order of removal.

CAUTION:
When installing washer pump, there should be no packing twists, etc.
