Wiper Motor: Service and Repair

FRONT WIPER AND WASHER SYSTEM


Removal and Installation of Front Wiper Drive Assembly


REMOVAL
1. Operate front wiper motor, and stop at the auto stop position.
2. Remove wiper arms. Refer to Service and Repair.
3. Remove cowl top cover. Refer to Locations Service and Repair.
4. Disconnect wiper motor connector and remove connector clips.

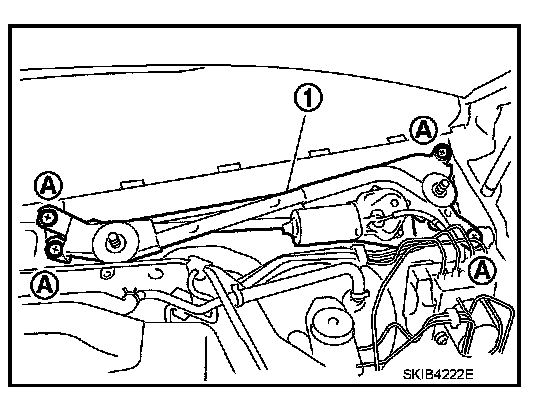

5. Remove front wiper drive assembly mounting bolts (A), and remove front wiper drive assembly (1) from the vehicle.

INSTALLATION
1. Install front wiper drive assembly to the vehicle.
Front wiper drive assembly mounting bolts : 4.5 N�m (0.46kg-m, 40 in-lb)
2. Connect wiper motor connector. Turn wiper switch ON to operate wiper motor, then turn wiper switch OFF
(auto stop).
3. Install connector clips to the wiper frame, and install cowl top cover. Refer to Locations Service and Repair.
4. Attach wiper arms. Refer to Service and Repair.
5. Adjustment of wiper arm stop location.
6. Install arm caps.
