Retractable Hard Top Control Unit
Retractable Hard Top Control Unit

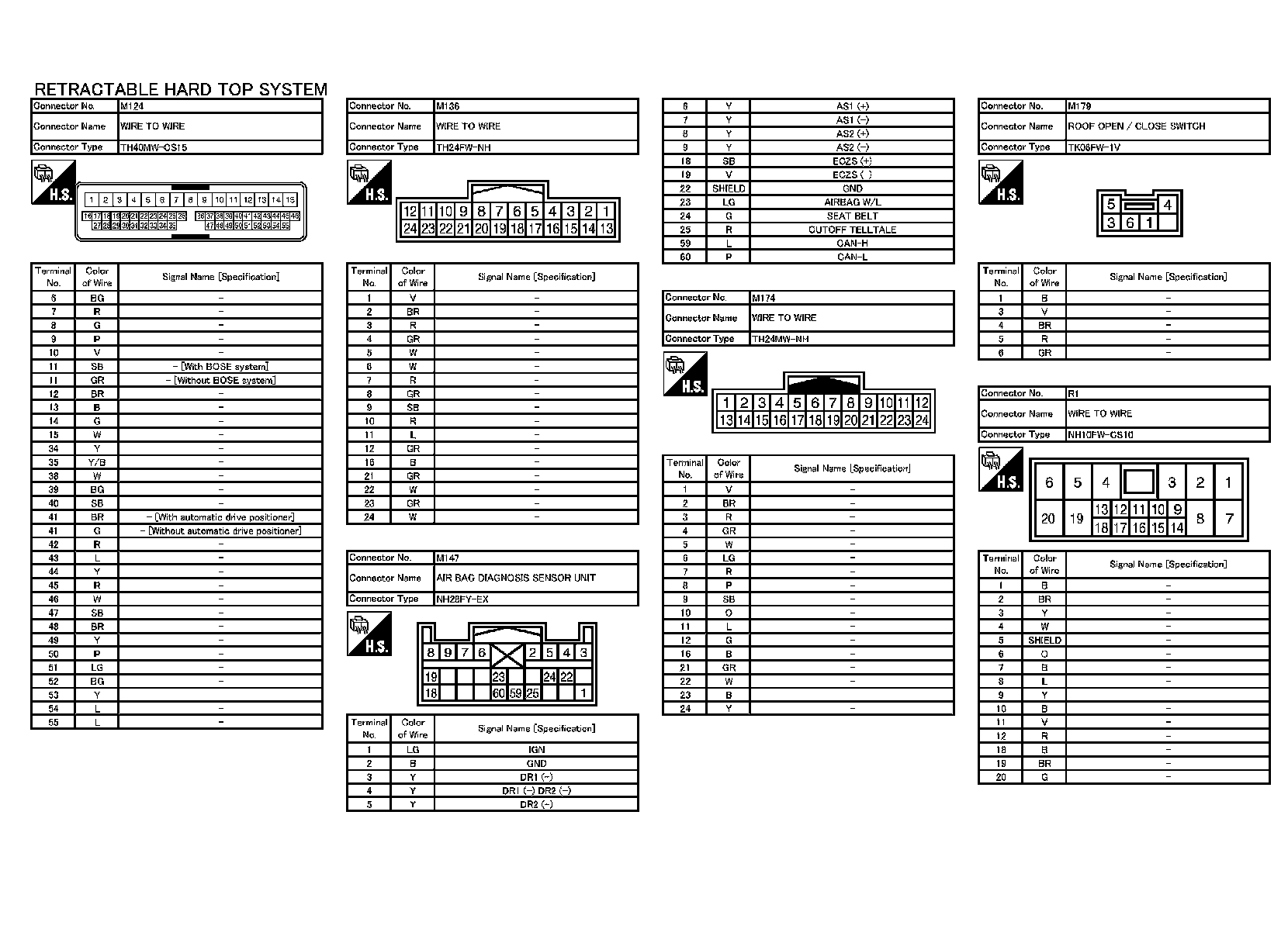

RETRACTABLE HARD TOP CONTROL UNIT
Wiring Diagram
